Texas Instruments PTB78560CAZ

B005TBIIHM

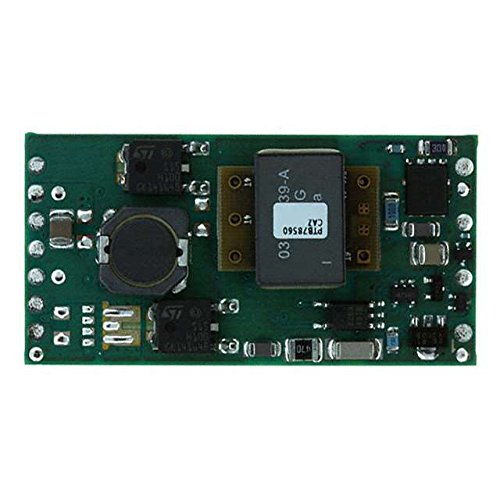

PTB78560CAZ - DC/DC - 30W Output - 9 ~ 13.2 V@2.5A - 2.04" L x 1.04" W x 0.40" H

PTB78560CAZ - DC/DC - 30W Output - 9 ~ 13.2 V@2.5A - 2.04" L x 1.04" W x 0.40" Hzoom

Attributes

Key Value
ApplicationsITE (Commercial)
ASINB005TBIIHM
Base Part NumberPTB78560C
Base Product NumberPTB78560
Batteries Required?No
CategoryPower Supplies - Board .
Current - Output (Max)2.5A
Efficiency88%
FeaturesRemote On/Off, OCP, OTP.
Item model numberPTB78560CAZ
Item Package Quantity1
Lead Free Status / RoHS.RoHS Compliant
Manufacturer Part NumberPTB78560CAZ
Manufacturer Standard L.12 Weeks
MfrTexas Instruments
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature-40?C ~ 85?C, -40
PackageTray
Package / Case11-SMD Module
PackagingTray
Part NumberPTB78560CAZ
Power (Watts)30 W, 30W
Product StatusNot For New Designs
SeriesPTB78560 (30W)
Size / Dimension2.04" L x 1.04" W x 0.4.
Standard Package12
TypeIsolated Module
Voltage - Input (Max)60V
Voltage - Input (Min)18V
Voltage - Isolation1.5 kV, 1.5kV
Voltage - Output 19 ~ 13.2V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowPTB78560CAZ65.0512In StockTexas Instruments65.05 @ 12
iodPartsPTB78560CAZ69.04512Texas Instruments69.04 @ 5
thumbzoomRadwellPTB78560CAZ80.8412In StockTEXAS INSTRUMENTS SEMI3.080.84 @ 12
Digi-Key78918385.071In StockTexas Instruments85.07 @ 1
AmazonSCB005TBIIHM112.11In StockTexas Instruments112.1 @ 1
