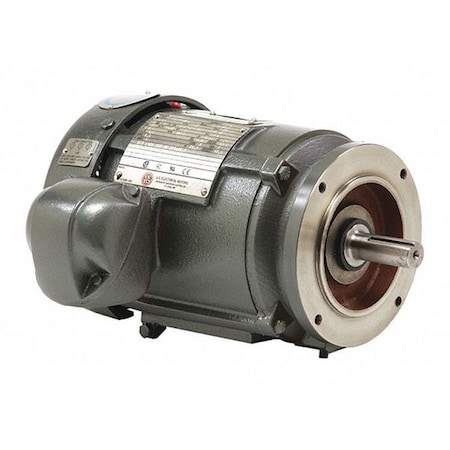

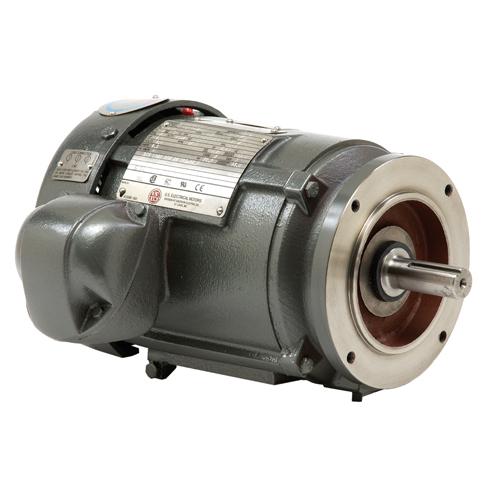

US Motors (Nidec) 8P10P2CCR - Severe Duty - IEEE 841 Motor - 3 ph, 10 hp, 1800 rpm, 460 V, 215TC Frame, TEFC Enclosure, 60 Hz

mpn8P10P2CCR
brandname: US Motors (Nidec)
manufacturername: US Motors (Nidec)

US Motors (Nidec) 8P10P2CCR - Severe Duty - IEEE 841 Motor - 3 ph, 10 hp, 1800 rpm, 460 V, 215TC Frame, TEFC Enclosure, 60 Hz

US Motors (Nidec) 8P10P2CCR - Severe Duty - IEEE 841 Motor - 3 ph, 10 hp, 1800 rpm, 460 V, 215TC Frame, TEFC Enclosure, 60 Hz

zoom

Binding: Misc.
Manufacturer: US Motors (Nidec)
Label: US Motors (Nidec)

Attributes

Key	Value
Amps	12
Bearings	Ball
Construction	Cast Iron
Country of Origin (subj.	Mexico
Drive End Flange Type	C-Face
Efficiency	91%
Enclosure	TEFC
Enclosure Type	TEFC (Totally Enclosed .
Estimated Weight	220.00
FL Amps	12
FL Efficiency	91
Frame	215TC
Hertz	60
HP	10
Hz	60
Insulation Class	F
Item	Motor,3PH,10HP,1800,460.
Manufacturer	US Motors (Nidec)
Manufacturer Model #	BH99
Maximum Ambient Tempera.	40? C
Mounting	Face, Footless
Number of Speeds	1
Part Number	8P10P2CCR
Phase	3
Product Type	Severe Duty & IEEE 841,.
Rotation	Reversible
RPM	1760
Service Factor	1.15
Ship Weight	200 lbs.
Speed (RPM)	1760
Voltage	460V
Volts	460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0391725	1353.0	1	In Stock		U.S. Motors	200.0	1353.0 @ 1
	emotorpro.com	8P10P2CCR	1444.8	1	In Stock		U.S. Motors	200.0	1444.8 @ 1
	motionindustries.com	01509961	2732.03	1	In Stock		US Motors (Nidec)		2732.03 @ 1
