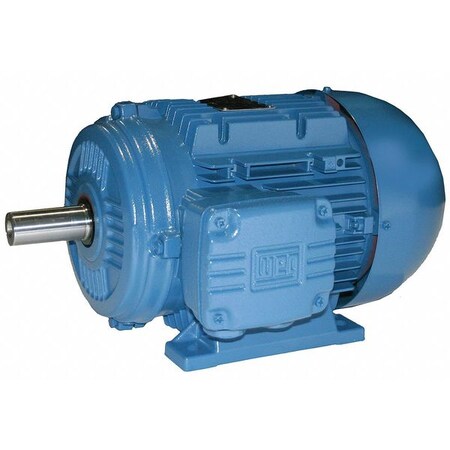

WEG Electric Motor 00158ET3WAL90L

B00BC7P9X8

WEG 00158ET3WAL90L 1.5kW 1800 3 60/50 460V IEC-AL

WEG 00158ET3WAL90L 1.5kW 1800 3 60/50 460V IEC-ALzoom

Attributes

Key Value
CC NumberCC029A
ClassificationIEC Metric
CompositionAluminum
ConditionNew
ConstructionAluminum
Country of Origin (subj.Multiple
Description:MOTOR 2HP 4P 90S/L WAF1
Drive End Flange TypeStandard
DutyContinuous
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Estimated Weight48.0000
Family SeriesWEG Electric Motors
FL Amps2.79
FL Efficiency86.5 %, 86.5
Frame90S/L, 90L
Frame MaterialAluminum
Frame RemarksFooted, IEC TRU Metric
Frequency50 Hz
Full Load Amps2.7
Gross Weight0 lbs
Hertz50, 60
Horsepower2 hp
HP2 hp, 2
Hz60/50
Ins. ClassF
ItemMetric Motor
Item ConditionFactory New
Item Number00158ET3WAL90L
kW1.50
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00158ET3WAL90L
Max. Ambient Temp.40 Degrees C
MFG Part #:00158ET3WAL90L
ModelET3
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Aluminum
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFoot Mount
Nameplate RPM1755
NEMA Frame90S/L
Net Weight45 lbs
No. of Speeds1
Nominal Efficiency86.5%
Nominal Voltage380 VAC
Number of Speeds1
Part Number00158ET3WAL90L
Phase3
Product TypeIEC Metric Motors
Replaced By00158ET3WAL90L-W22
RPM1,800 RPM, 1800/1500, 1.
RPM Range1701-1800
Service Factor1.25
Shaft Dia.24mm
Shaft Length50mm
Speed (RPM)1800
StandardsUL (E104590), CSA (LR.
Supplier:WEG ELECTRIC CORP
UPC:7891327437524
Voltage460/220 to 240/380 to 4.
Voltage (AC)380 VAC
Voltage Compatibility460, 208-230/460
Volts460//220/240/380/415
Weight46.240000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG6453675335.01In Stock20Weg335.0 @ 1
thumbzoomWalker Industrial00158ET3WAL90L393.01In Stock17WEG393.0 @ 1
thumbzoommotorsandcontrol.com00158ET3WAL90L415.171In StockWEG Electric48.0415.17 @ 1
thumbzoomGalco00158ET3WAL90L-WEG436.191In StockWEG Electric45.0436.19 @ 1
kscdirect.comWEG 00158ET3WAL90L446.031In StockWEG ELECTRIC CORP446.03 @ 1
thumbzoomindustrialrefrigerationparts.com00158ET3WAL90L458.451In StockWEG46.24458.45 @ 1
thumbzoomRadwell00158ET3WAL90L480.01In StockWEG480.0 @ 1
thumbzoomDealers Electric00158ET3WAL90L519.641In StockWeg48.0519.64 @ 1
