- mpnVDS202A06700
- brandname: Widia
- manufacturername: Widia

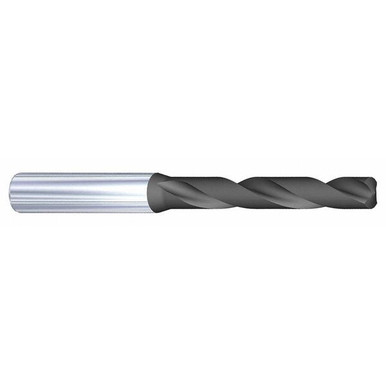

WIDIA VDS202A06700 VariDrill VDS202A, 6.7 mm Diameter, 140? Cutting Angle, Right Hand Cut, Cone Point, Carbide, TiAlN Coating
- Brand: WIDIA
- PartNumber: 4148203
- Model: 4148203
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| Brand | Widia |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 9 |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2638 |
| Depth x Dia. Ratio | 5xD |
| Depth:Dia. Ratio | 5xD |
| Double Margin | No Margins |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiAlN |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Material | Carbide |
| Drill Bit Point Angle | 140 Degrees, 140 Degre. |
| Drill Bit Point Type | Conical Point |
| Drill Bit Size | 6.70 mm |
| Drill Diameter Tolerance | H7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.1300mm |
| Drilling Depth | 43.00mm |
| Finish - Machining | TiAlN |
| Flute Length | 53.00 mm |
| Flute Type | Helical |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machin. | WU25PD |
| Maximum Drilling Depth | 43 mm |
| Measurement System | Metric |
| Mpn | VDS202A06700 |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Overall Length | 91.00 mm |
| Primary Material Applic. | Aluminum, Cast Iron, Ni. |
| Primary Material Applic. | K, M, N, P, S |
| Series | VDS202 |
| Shank Dia. | 8.00 mm, 8 mm |
| Shank Length | 36.00 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| SKU | ZO-G2751913 |
| Spiral Direction | Right Hand |
| Standards | ANSI, DIN 6535, DIN 653. |
| SubCategory | Machining |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2751913 | 69.25 | 1 | 20 | | Widia | 0.09 | 69.25 @ 1 |
 | simsupply.com | ZO-G2751913 | 82.07 | 1 | 9 | | Widia | | 82.07 @ 1 |
| grainger.ca | WIDVDS202A06700 | 89.8910731 | 1 | In Stock | | WIDIA | 0.094 | 89.8910731 @ 1 |
