3M MNG10-375DFK

mpnMNG10-375DFK
brandname: 3-M
manufacturername: 3-M

3M SCOTCHLOK FEMALE DISCONNECT, NYLON INSULATED W/INSULATION GRIP MNG10-375DFK, 12-10 AWG, MNG10-375DFK

3M SCOTCHLOK FEMALE DISCONNECT, NYLON INSULATED W/INSULATION GRIP MNG10-375DFK, 12-10 AWG, MNG10-375DFK

zoom

Brand: 3M
PartNumber: MNG10-375DFK
Model: MNG10-375DFK
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MNG10-375DFK
Barrel Inside Dia.	0.175 in
Barrel Length	0.19 in
Barrel Length Type	Butted
Base Product Number	MNG10
Brand	3M
Category	Electrical Insulating T.
Color	Yellow
Connection Material	Tin-Plated Brass
Connection Type	Crimp
Connector Type	Insulation Displacement
Contact Finish	Tin
Contact Material	Brass
Country of Origin	USA
Country of Origin (subj.	United States
Features	-
Gender	Female
Inside Diameter	0.175 in
Insulation	Non-Mating End Insulate.
Insulation Color	Yellow
Insulation Diameter	0.250" (6.35mm)
Insulation Material	Nylon
Insulation Type	Nylon
Item	Female Disconnect

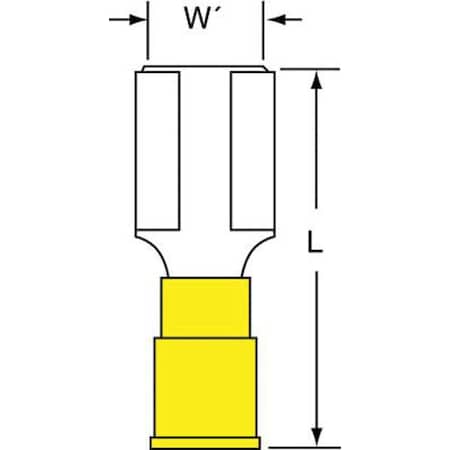

Length - Overall	1.230" (31.24mm)
Male Tab Width	0.375 in
Manufacturer	3M
Material	Nylon
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.25 in
Maximum Operating Tempe.	221 ?F
Maximum Wire Size	10 AWG
Mfr	3M
Minimum Conductor Leg D.	12 AWG
Minimum Wire Size	12 AWG
Mounting Type	Free Hanging (In-Line)
Overall Diameter	0.25 in
Overall Length	1.23 in
Overall Width	0.37 in
Package	Bulk
Package Quantity	500 per case
Pad Width	0.375 in
Part Status	Active
Seam	Butted
Series	Scotchlok?
Standards	CSA Certified, RoHS Com.
Tab Length	-
Tab Size	0.050 in x 0.375 in
Tab Thickness	0.050" (1.27mm)
Tab Width	0.375" (9.53mm)
Terminal Type	Disconnect, Standard
Termination	Crimp
Trade Name	Scotchlok
Type	Insulated, Ring Tongue
UNSPSC	31201502
UPC	054007020530
Wire Gauge	10-12 AWG
Wire Range	12 to 10 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	NEP Electronics	MNG10-375DFK	0.555	5	500		3M		0.555 @ 500
	Digi-Key	3865625	0.78102	2500	500		3M		0.78102 @ 500
	turtle.com	MMM MNG10-375DFK	0.8	1	500		3M		0.8 @ 500
	Platt.com	0395449	0.97	1	500		3M		0.97 @ 500
	rshughes.com	054007-02053	325.0	500	500		3M		325.0 @ 500
	gordonelectricsupply.com	MNG10-375DFK	337.5	1	500	455	3-M		337.5 @ 500
	Zoro	G5614366	341.96	1	500	26	3M	2.8	341.96 @ 500
	Dale-Electric	MNG10-375DFK	743.12	1	500		3M		743.12 @ 500
