AUTONICS BWP20-20P

B00C88MSUW

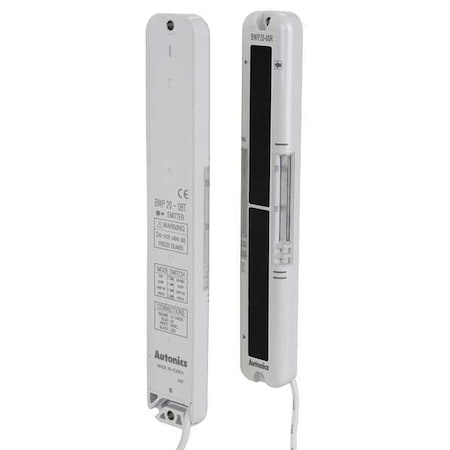

BWP20-20P, Sensor, Area, Plastic housing PNP Open Collector Output. 20pcs & 20mm Pitch Optical axis, 380mm Length, 12-24VDC

BWP20-20P, Sensor, Area, Plastic housing PNP Open Collector Output. 20pcs & 20mm Pitch Optical axis, 380mm Length, 12-24VDCzoom

Attributes

Key Value
ApprovalsCE
Beam Spacing20 mm
Cable Connection4 Bare Wires
Cable Length3 m
CategorySensors, Transducers
Circuit TypePNP Open Collector
ConnectionCable
Country of Origin (subj.Korea, Republic of
Current Consumption80 mA
Depth22.6 mm
Family SeriesAutonics Light Curtains.
Features-
Gross Weight1.4988 lbs
Housing MaterialPlastic
IncludesEmitter, Receiver and I.
IP RatingIP40, 40
ItemPhotoelectric Area Sens.
Item NumberBWP20-20P
Light SourceInfrared LED
ManufacturerAutonics
Manufacturer Part NumberBWP20-20P
Max. Load Current100 mA
Max. Load Voltage30V DC
MfrAutonics
Min. Target SizeOpaque Material 30mm
Net Weight0.9475 lbs
Number of Beams20
Operating Range0.1-5 m
Operating Temp. Range-20 to 60 Degrees C
Operating Temperature-10?C ~ 55?C (TA)
Output ModeLight-On
Output TypePNP - Open Collector
Overall Height450 mm
PackageBox
Package / CaseModule
Part StatusActive
Power Source12 to 24V DC
Product SeriesBWP
Response Time6 msec, 6 ms
Safety RatedNo
Sensing Distance197" (5m) 16.4'
Sensing Height430 mm
Sensing Range0.10 to 5.00m
Sensor TypeArea Reflective
SeriesBWP
Supply Voltage12-24 VDC
Trigger TypeInternal
Voltage - Supply12V ~ 24V
Width28.6 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentBWP20-20P455.01In Stock31Autonics455.0 @ 1
thumbzoomGalcoBWP20-20P-ATNC523.01In StockAutonics1.4988523.0 @ 1
Digi-Key15285014534.9511Autonics534.95 @ 1
thumbzoomZoroG5773537664.81In StockAutonics664.8 @ 1
Grainger32W3481086.01In Stock10AUTONICS1086.0 @ 1
