- mpnL70
- brandname: Blackburn
- manufacturername: Blackburn

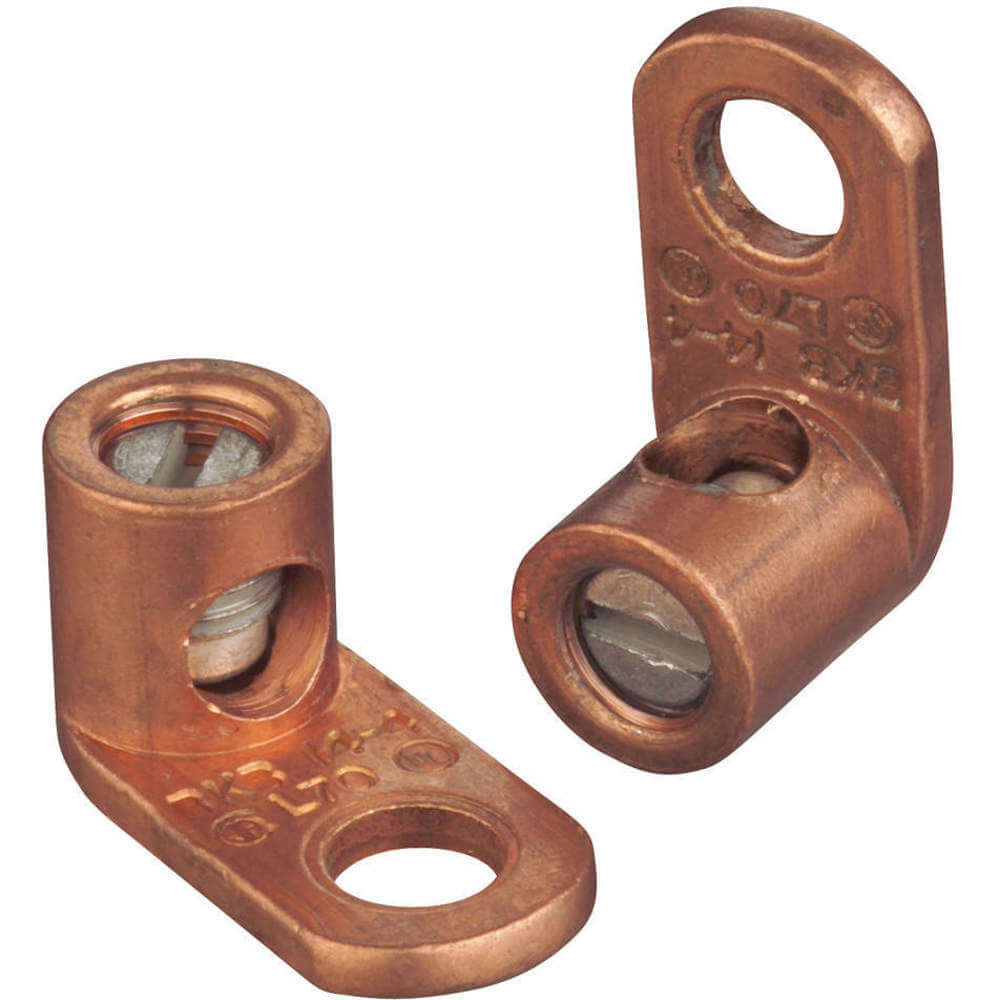

Mechanicl Conn, Cmpact, 4 to 14 Awg, 1 Cond
- Brand: Blackburn
- PartNumber: L70
- Model: L70
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: BLACKBURN
- Label: BLACKBURN
Attributes
| Key | Value |
|---|
| Angle | Right Straight |
| Approvals | CSA, UL |
| Brand | Blackburn Mechanical |
| Carton | 100 |
| Category Description | Split Bolts |
| Classification | Split Bolts |
| Color | Copper |
| Conductor Material | Copper |
| Connector Type | Compact |
| Description | #4 Cu 1 Conduct. Lug |
| Dimensions | 1 1/8 L x 17/32 W x 35/. |
| extra long description | ABB L70 CU 1COND 1HL MO. |
| Family Name | Blackburn Mechanical |
| Family Series | Blackburn, a T & B Bran. |
| For Stranded Copper Wir. | 4 AWG |
| For Stranded Copper Wir. | 14 AWG |
| For Stud Size | 9/32 in |
| For Wire Size | 12 AWG, 14 AWG, 4 AWG, . |
| Gross Weight | 0.033 lbs |
| GTIN | 00783786130023 |
| Head Style | Slotted |
| Hole Diameter | 0.28 in, 9?32 " |
| Insulated/Non-Insulated | Non-Insulated |
| insulation | None |
| Insulation Type | Non-Insulated |
| Item | Mechanical Connector |
| Item Number | L70 |
| Length | 1.13 in |
| Length (Straight Wirewa. | 1.13 in |
| Long Description | Copper Connector, #14 A. |
| Made in USA | Yes |
| Manufacturer | Blackburn, a T & B Brand |
| Manufacturer Part Number | L70 |
| Manufacturers Part Numb. | L70 |
| Material | Copper, Electrolytic Co. |
| Material/Composition | Copper |
| Max Conductor Range | 4 AWG |
| Max. Conductor Size | 4 AWG Stranded |
| Maximum Conductor Size | #4 AWG (Stranded) |
| Maximum Voltage Rating | 600 V ac |
| Min Conductor Range | 14 AWG |
| Min. Conductor Size | 14 AWG Solid |
| Minimum Conductor Size | #14 AWG (Solid) |
| Net Weight | 0.033 lbs |
| No. of Conductors | 1 |
| No. of Holes | 1 |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Overall Depth | 9/16 in |
| Overall Length | 1.13 in, 1-1/8 in |
| Overall Width | 0.53 in |
| package quantity | 100 CT;1000 PK |
| Product Series | L |
| Product Type | Copper Connector |
| RoHS Compliant | Yes |
| Screw Material | Steel |
| Series | Blackburn Series |
| Short Description | Copper Connector, Non-I. |
| Special Features | Cold Forged from Pure E. |
| standard | UL E9809 |
| Standards Met | UL Listed E9809;CSA Cer. |
| Stud Size | 9/32 in |
| sub brand | Blackburn |
| Terminal Type | Screw |
| Termination | Screw Clamp |
| Tongue Length | 0.66 in |
| Tongue Width | 0.53 in |
| Type | Copper Connectors, Type. |
| UNSPSC | 39121408 - Mechanical c. |
| UPC | 783786130023 |
| UPC Code | 783786130023 |
| Weight | 0.03 lb/EA |
| Weight per each | 0.033 |
| Width | 0.53 in |
| Wire Size | 4-14 AWG |
| Wire Size Ranges | 14 AWG - 4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | L70-BLBN | 2.61 | 1 | 767 | | Blackburn, a T & B Brand | 0.033 | 2.61 @ 1 |
 | Zoro | G0279657 | 3.19 | 1 | 6198 | | Blackburn | 0.03 | 3.19 @ 1 |
 | Elliott Electric | L70 | 3.689 | 1 | 27 | | Blackburn Mechanical | 0.033 | 3.689 @ 1 |
| us.rs-online.com | 70092485 | 4.29 | 1 | 34 | | Blackburn by ABB | | 4.29 @ 1 |
 | sustainablesupply.com | C1195125 | 4.84 | 1 | 34 | | Blackburn | 0.03 | 4.84 @ 1 |
 | Raptor Supplies | AH9KBZ | 6.4694565 | 1 | 27 | | BLACKBURN (T&B) | | 6.4694565 @ 1 |
| AmazonTP | B01LYGPEGJ | 9.38 | 1 | 34 | 2 | Blackburn | | 9.38 @ 1 |
| Digi-Key | 15657612 | 14.92 | 1 | 34 | | Blackburn, a T & B Brand | | 14.92 @ 1 |
 | United Electric | 113162 | 447.18 | 1 | 592 | | Blackburn | | 447.18 @ 1 |
| steinerelectric.com | 27982 | 641.27 | 1 | 34 | | Blackburn | | 641.27 @ 1 |
