- mpn43625
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

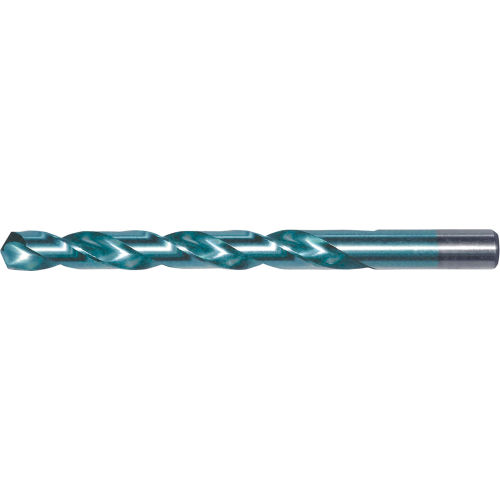

Chicago-Latrobe 43625 150ASP-TC Heavy Duty Jobber Length Drill Bit, 25/64 in Drill - Fraction, 0.3906 in Drill - Decimal Inch, 135 deg Point, HSS, TiCN Coated (Each)
- Brand: Chicago Latrobe
- PartNumber: 43625
- PackageQuantity: 6
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Cast Iron,. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3906 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3906", 0.390625 |
| Diameter(Fraction) | 25/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiCN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 25/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0809" |
| Drill Size - Decimal In. | 0.3906 in |
| Drill Size - Fraction | 25/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | TiCN Coated |
| Flute Length | 3.7500", 3 3/4 in, 3-3/. |
| Flute Length (Metric) | 95.25mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 13/16 in |
| Number of Flutes | 2 |
| Overall Length | 5-1/8 in, 5.1250", 5 1/. |
| Overall Length (Metric) | 130.17mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 150ASP-TC |
| Shank Configuration | Straight |
| Shank Dia. | 25/64 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 0.3906", 0.3906, 25/64 . |
| Shank Size (Metric) | 9.92mm |
| Shank Type | Straight |
| Style | 150ASP-TC |
| Surface Condition | TiCN |
| Through Coolant (Yes/No) | No |
| Tool Size | 25/64" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6127952 | 14.47 | 3 | In Stock | | Chicago-Latrobe | | 14.47 @ 3 |
 | Megadepot | 43625 | 14.51 | 1 | In Stock | | Chicago-Latrobe | | 14.51 @ 1 |
 | heavydutydepot.com | 43625 | 14.51 | 7 | In Stock | | Chicago-Latrobe | | 14.51 @ 7 |
 | Zoro | G3607782 | 17.99 | 1 | 62 | | Chicago-Latrobe | 0.1 | 17.99 @ 1 |
 | usmegastore.com | 43625 | 18.01 | 1 | In Stock | | Chicago-Latrobe | | 18.01 @ 1 |
 | Raptor Supplies | AA2KZZ | 24.2576685 | 1 | In Stock | | CHICAGO-LATROBE | | 24.2576685 @ 1 |
 | National Supply Network | 56478159 | 37.77 | 1 | In Stock | | Chicago-Latrobe | | 37.77 @ 1 |
 | Guardian | 56478159 | 42.28 | 1 | In Stock | | Chicago-Latrobe | | 42.28 @ 1 |
 | Global Industrial | WBB2547862 | 90.0 | 1 | In Stock | | Chicago-Latrobe | | 90.0 @ 1 |
