- mpn46220
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

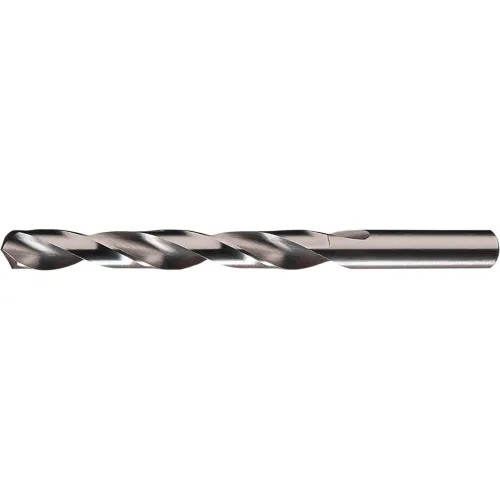

Jobber Drill Bit, 4.500" L, HSS, Bright, Min. Qty 6 (6 Pieces)
- Brand: Chicago Latrobe
- PartNumber: 46220
- Model: 46220
- Manufacturer: CHICAGO-LATROBE
- Label: CHICAGO-LATROBE
Attributes
| Key | Value |
|---|
| Applicable Materials | Brass, Bronze, Dura-Pla. |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 1 |
| Cutting Depth | 3-3/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3125 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3125", 0.3125 |
| Diameter (Fraction) | 5/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 5/16 in |
| Drill Construction | Low Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0939 in |
| Drill Size - Decimal In. | 0.3125 in |
| Drill Size - Fraction | 5/16 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 3.1875", 3 3/16 in, 3-3. |
| Flute Length (Metric) | 80.96mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 3/8 in |
| Mpn | 46220 |
| Number of Flutes | 2 |
| Overall Length | 4-1/2 in, 4.5000", 4 1/. |
| Overall Length (Metric) | 114.30mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 150C |
| Shank Configuration | Straight |
| Shank Dia. | 5/16 in |
| Shank Length | 1 5/16 in, 1.3125" |
| Shank Length (Metric) | 33.34mm |
| Shank Size | 5/16 in Dia x 1-5/16 in. |
| Shank Size (Metric) | 7.94mm |
| Shank Type | Straight |
| SKU | ZO-G2824783 |
| Style | 150C |
| SubCategory | Machining |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 5/16" |
| UPC | 662355462201 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129110 | 6.08 | 6 | 6 | | Chicago-Latrobe | | 6.08 @ 6 |
 | Global Industrial | WBB2547065 | 6.5 | 6 | 6 | | Chicago-Latrobe | | 6.5 @ 6 |
 | Megadepot | 46220 | 7.04 | 1 | 6 | | Chicago-Latrobe | | 7.04 @ 6 |
 | heavydutydepot.com | 46220 | 7.04 | 15 | 6 | | Chicago-Latrobe | | 7.04 @ 15 |
 | usmegastore.com | 46220 | 7.27 | 1 | 6 | | Chicago-Latrobe | | 7.27 @ 6 |
 | Zoro | G2824783 | 8.34 | 1 | 6 | | Chicago-Latrobe | 0.44 | 8.34 @ 6 |
 | National Supply Network | 81384208 | 12.485 | 1 | 6 | | Chicago-Latrobe | | 12.485 @ 6 |
 | simsupply.com | ZO-G2824783 | 13.89 | 1 | 6 | | Chicago-Latrobe | | 13.89 @ 6 |
 | Guardian | 81384208 | 15.09 | 1 | 6 | | Chicago-Latrobe | | 15.09 @ 6 |
