- mpn49393
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

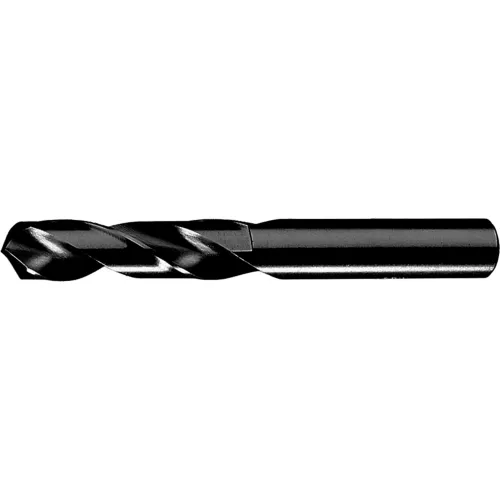

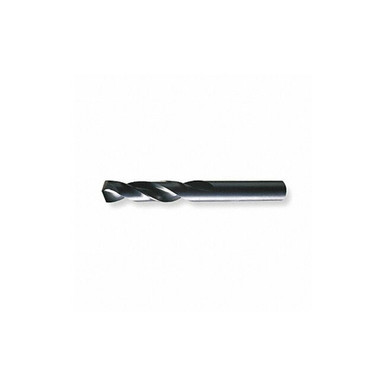

Chicago-Latrobe 49393 159 Heavy Duty Screw Machine Drill, 23 Drill - Wire, 0.154 in Drill - Decimal Inch, HSS, Black Steam Oxide (Each)
- Brand: Chicago Latrobe
- PartNumber: 49393
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Chicago-Latrobe |
| Color | Black Oxide |
| Country of Origin (subj. | United States |
| Current Stock | 9 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1540 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.154 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split point |
| Drill Bit Size | #23 |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0319 in |
| Drill Size - Decimal In. | 0.154 in |
| Drill Size - Wire | #23 |
| Drill Style | Screw Machine Drill |
| Finish | Black Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 1 in, 10 in |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Left/Right Hand | Right |
| List Number | 159 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 1 in |
| Measurement System | Wire |
| Mpn | 49393 |
| Number of Flutes | 2 |
| Overall Length | 2 1/16 in, 2-1/16 in |
| Point Angle | 135 deg, 135 |
| Point Type | Split point, Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 159 |
| Shank Dia. | 9/64 in |
| Shank Length | 1 1/16 in |
| Shank Size | 0.154 in Dia x 1.0625 i. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G2592606 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 159 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | #23 |
| Type | Heavy Duty |
| UPC | 662355493939 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6130350 | 1.36 | 26 | 12 | | Chicago-Latrobe | | 1.36 @ 26 |
 | Global Industrial | WBB2547505 | 1.48 | 12 | 12 | | Chicago-Latrobe | | 1.48 @ 12 |
 | Zoro | G2592606 | 1.79 | 1 | 12 | | Chicago-Latrobe | 0.1 | 1.79 @ 12 |
 | heavydutydepot.com | 49393 | 1.85 | 55 | 12 | | Chicago-Latrobe | | 1.85 @ 55 |
 | sustainablesupply.com | C1464395 | 2.13 | 1 | 12 | | Chicago-Latrobe | 0.01 | 2.13 @ 12 |
 | Raptor Supplies | AB2HHU | 2.257047 | 1 | 12 | | CHICAGO-LATROBE | | 2.257047 @ 12 |
 | Guardian | 81383234 | 3.35 | 1 | 12 | | Chicago-Latrobe | | 3.35 @ 12 |
 | National Supply Network | 81383234 | 3.4425 | 12 | 12 | | Chicago-Latrobe | | 3.4425 @ 12 |
 | simsupply.com | ZO-G2592606 | 7.97 | 1 | 12 | | Chicago-Latrobe | | 7.97 @ 12 |
