- mpn52481
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

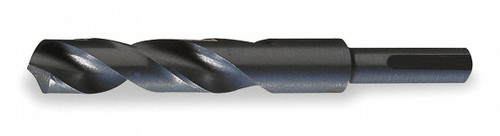

Chicago Latrobe 190F High-Speed Steel Reduced Shank Drill Bit, Black Oxide Finish, Flatted Shank, 118 Degree Conventional Point, 1-17/64" Size


- Brand: Chicago Latrobe
- PartNumber: 52481
- Model: 52481
- Size: 1-17/64"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
Key | Value |
---|
Applicable Materials | Alloy Steel, Carbon Ste. |
Application | For Alloy and Carbon St. |
Brand | Chicago-Latrobe |
Coolant Through | No |
Current Stock | 2 |
Cutting Depth | 3-1/8 in |
Cutting Direction | Right Hand |
Cutting Edge Material | HSS |
Decimal Equivalent | 1.2656 |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter | 1.2656", 1.265625 |
Diameter (Fraction) | 1-17/64" |
Drill Bit Dimension Type | Fractional Inch |
Drill Bit Finish | Black Oxide |
Drill Bit Material | High Speed Steel |
Drill Bit Point Angle | 118 Degrees |
Drill Bit Size | 1 17/64 in |
Drill Construction | General Purpose |
Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
Drill Size - Decimal In. | 1.2656 in |
Drill Size - Fraction | 1-17/64 in |
Drill Size System | Fractional |
Drill Style | Silver & Deming Drill |
Finish | Black/Steam Oxide |
Flute Length | 3 1/8 in, 3.1250", 3-1/. |
Flute Length (Metric) | 79.38mm |
Flute Type | Spiral |
Grade | General Purpose |
Hand of Cut | Right |
Hand of Spiral | Right |
International Shipping | No |
Item | Reduced Shank Drill Bit |
Material | HSS, High Speed Steel |
Maximum Drilling Depth | 5 1/16 in |
Measurement System | Imperial |
Mpn | 52481 |
Number of Flutes | 2 |
Overall Length | 6.0000", 6 in |
Overall Length (Metric) | 152.40mm |
Point Angle | 118 deg, 118? |
Point Style | Split |
Point Type | Split, Radial |
Series | 190F |
Shank Configuration | Reduced w/ 3 Flats |
Shank Dia. | 1/2 in |
Shank End Feature | 3 Flats |
Shank End Feature Length | 0.8750" |
Shank Length | 2 1/4 in, 2.2500" |
Shank Length (Metric) | 57.15mm |
Shank Neck Diameter | 1.2216" |
Shank Neck Length | 0.5000" |
Shank Size | 0.5000", 0.5, 1/2 in |
Shank Size (Metric) | 12.70mm |
Shank Type | Round with Flats, Flat/. |
SKU | ZO-G1156029, 52481 |
Style | 190F |
SubCategory | Machining |
Surface Condition | Steam Oxide |
Tool Size | 1-17/64" |
UPC | 662355524817, 6.62E+11 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
| Amazon | B002E9EQR8 | 77.83 | 1 | In Stock | | Chicago-Latrobe | | 77.83 @ 1 |
  | Megadepot | 52481 | 110.2 | 1 | In Stock | | Chicago-Latrobe | | 110.2 @ 1 |
  | heavydutydepot.com | 52481 | 110.2 | 1 | In Stock | | Chicago-Latrobe | | 110.2 @ 1 |
  | MRO Supply | 6130998 | 111.09 | 1 | In Stock | | Chicago-Latrobe | | 111.09 @ 1 |
  | Zoro | G1156029 | 122.35 | 1 | 1 | | Chicago-Latrobe | 0.95 | 122.35 @ 1 |
  | simsupply.com | ZO-G1156029 | 127.9 | 1 | 2 | | Chicago-Latrobe | | 127.9 @ 1 |
  | usmegastore.com | 52481 | 130.3 | 1 | In Stock | | Chicago-Latrobe | | 130.3 @ 1 |
  | National Supply Network | 93076487 | 183.78 | 1 | In Stock | | Chicago-Latrobe | | 183.78 @ 1 |
  | bscsource.com | 52481 | 194.59 | 1 | In Stock | | Chicago-Latrobe | | 194.59 @ 1 |
  | Guardian | 93076487 | 232.01 | 1 | In Stock | | Chicago-Latrobe | | 232.01 @ 1 |
  | imsbolt.com | 52481 | 249.54 | 1 | In Stock | | CHICAGO-LATROBE | | 249.54 @ 1 |
