Dayton 2ZXP2

B001QRJ1T2

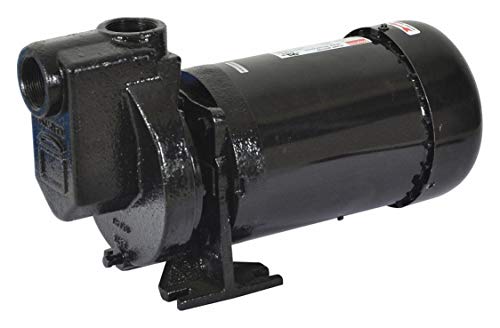

Dayton 2ZXP2 Centrifugal Pump, 3/4 HP, 3 Ph, 230/460V

Dayton 2ZXP2 Centrifugal Pump, 3/4 HP, 3 Ph, 230/460Vzoom

Attributes

Key Value
Agency Compliancec UL us
Amps2.5-2.4/1.2
Bearing TypeBall
Best Efficiency Flow14 to 52 gpm
Best Efficiency Head20 to 45 ft
Best Efficiency Range G.14 to 52 gpm @ 45 to 20.
BrandDayton
Compatible Discharge Pi.1 1/2 in
Compatible Intake Pipe .1 1/2 in
Current Stock3
DutyContinuous
Duty - PumpsContinuous
Duty CycleContinuous
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.57 gpm
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.52 gpm
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 40 ft of He.24 gpm
Flow Rate @ 5 ft of Hea.65 gpm
Flow Rate @ 50 ft of He.4 gpm
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.61
GPM of Water @ 15 Ft. o.56
GPM of Water @ 20 Ft. o.52
GPM of Water @ 30 Ft. o.42
GPM of Water @ 40 Ft. o.24
GPM of Water @ 5 Ft. of.65
GPM of Water @ 50 Ft. o.4
Height9 1/2 in
Horsepower3/4 hp
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP3/4
HP - Pumps3/4 hp
Hz60
Impeller DesignSemi-Open
Impeller MaterialCast Iron
Impeller TypeSemi Open
IncludesManual
Inlet1-1/2 in NPT
Inlet Pressure75 psi
Inlet Size - Pumps1-1/2 in NPT
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Self Priming Pum.Self Priming Centrifuga.
Length16 5/32 in
Length (Straight Wirewa.16 5/32 in
Manufacturers Warranty .1 yr
Max. Case Pressure75 psi
Max. Dia. Solids3/8"
Max. Dia. Solids - Pumps3/8 in
Max. Head52 ft.
Max. Head - Pumps52 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure22.5 psi
Max. Pressure - Pumps22 psi
Max. Specific Gravity1.3
Max. Temp - Pumps200 Degrees F
Maximum RPM3,450 RPM
Motor Design3-Phase
Motor EnclosureTEFC
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure TypeTEFC
Motor Frame Designation56J
Motor RPM3,450 RPM
Motor TypeThree Phase
Mpn2ZXP2
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Outlet1-1/2 in NPT
Outlet Size - Pumps1-1/2 in NPT
Overall Height9.5 in
Overall Length16.1 in
Overall Width6.1 in
Phase3
Phase - Pumps3
Port RotationSingle
Port Rotation - PumpsNo
Prop 65WARNING: Cancer and Rep.
Pump Housing Material B.Ir
Seal MaterialBuna-N, Carbon, Ceramic.
Seal TypeMechanical
Self-PrimingYes
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.22 psi
SKUZO-G2822942
Specific Gravity (Maxim.1.3
StandardscULus Listed
SubCategoryPumps
Suction Lift6 ft.
Suction Lift (Maximum)6 ft
Suction Lift - Pumps6 ft
UPC190735242834
Voltage208-230/460
Voltage - Pumps208 to 230/460V AC
Wetted MaterialBuna-N, Carbon, Cast Ir.
Wetted MaterialsBuna-N, Carbon, Cast Ir.
Width6 1/8 in
