- mpn4RP05
- brandname: Dayton
- manufacturername: Dayton

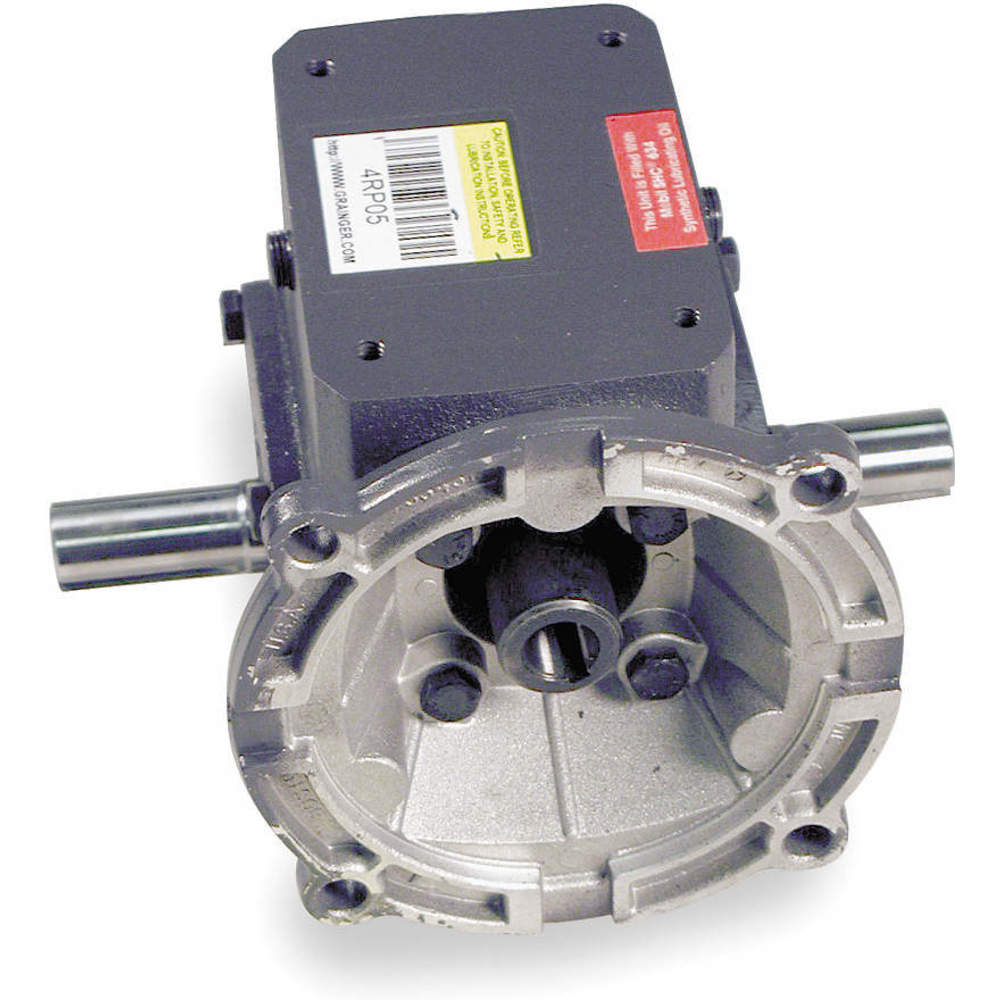

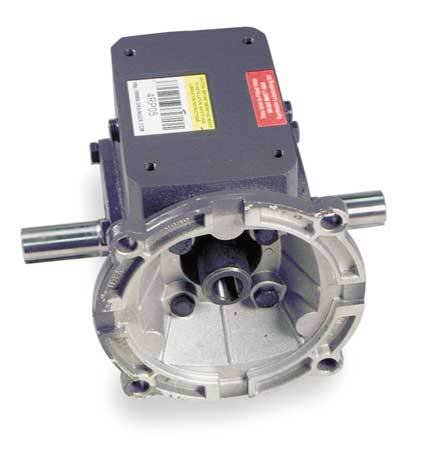

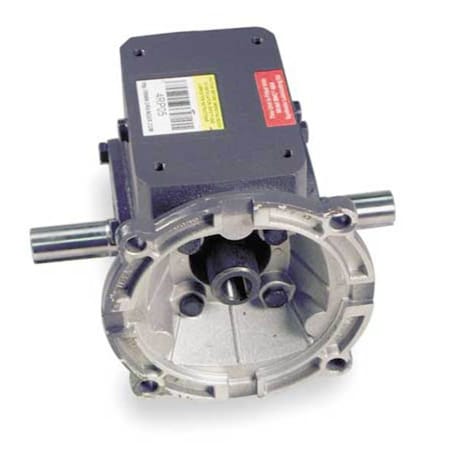

Dayton 4RP05 Speed Reducer,56c,60:1 - 4RP05
- Brand: Dayton
- PartNumber: 4RP05
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 3 |
| Dimension U | 7/8 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56c |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade, Klub. |
| Max. Input HP | 0.3, 1/3 |
| Max. Output Torque | 415 in.-lb., 415 in-lb |
| Max. Torque (In.-Lbs.) | 415 |
| Mounting | Any Position Except Inp. |
| Mpn | 4RP05 |
| NEMA/IEC Frame | 56c |
| Nominal Output RPM | 29, 29 RPM |
| Nominal Ratio | 60:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 7/8 in |
| Output Shaft Dia. (In.) | 5/8 |
| Output Shaft Diameter | 7/8 in |
| Output Torque @ 1/2 HP | 415 in.-lb., 415 in-lb |
| Output Torque @ 1/3 HP | 415 in-lbs, 415 in-lb |
| Output Torque @ 1/3 HP . | 415 |
| Output Torque @ 1/4 HP | 314 in-lb |
| Output Torque @ 1/4 HP . | 314 |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Overhung Load | 700 lb. |
| Overhung Load (Lb.) | 700 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Rotation | Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Double Output |
| Shaft Orientation | Right Angle |
| Ship Weight | 27 lbs. |
| Single/Double Output/Un. | Double Output |
| SKU | ZO-G2710741 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735333051 |
| Worm Center Distance | 1.75", 1.75 in |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2710741 | 460.99 | 1 | 7 | | Dayton | 27.0 | 460.99 @ 1 |
 | simsupply.com | ZO-G2710741 | 569.29 | 1 | 3 | | Dayton | | 569.29 @ 1 |
 | sustainablesupply.com | C2777208 | 696.04 | 1 | In Stock | | Dayton | 27.0 | 696.04 @ 1 |
 | Raptor Supplies | AD9FXR | 757.2169215 | 1 | In Stock | | DAYTON | | 757.2169215 @ 1 |
| grainger.ca | WWG4RP05 | 782.86886772 | 1 | In Stock | | DAYTON | 27.0 | 782.86886772 @ 1 |
| emotorpro.com | 4RP05 | 1007.4 | 1 | In Stock | | Dayton | 27.0 | 1007.4 @ 1 |
