Dayton 4RP13

mpn4RP13
brandname: DAYTON
manufacturername: DAYTON

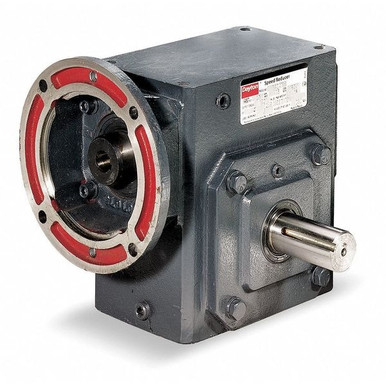

Speed Reducer, C-Face, 56C, 60:1, Overhung Load: 875 lb

Speed Reducer, C-Face, 56C, 60:1, Overhung Load: 875 lb

zoom

Brand: Dayton
PartNumber: 4RP13
Model: 4RP13
Manufacturer: DAYTON
Label: DAYTON

Attributes

Key	Value
Bearings	Ball
Bore Dia.	5/8"
Brand	Dayton
Current Stock	3
Dimension U	1 in
Duty	Standard
Finish	Powdered Epoxy Paint
Frame	56c
Gear Material	Hardened and Ground Ste.
Gear Type	Worm
Housing Material	Cast iron
Input RPM	1750 rpm, 1750
International Shipping	No
Item	Speed Reducer
Lead Time	Expected to ship in 1-2.
Lubrication	Kluber Food Grade, Klub.
Max. Input HP	0.5, 1/2
Max. Output Torque	636 in.-lb., 636 in-lb
Max. Torque (In.-Lbs.)	636
Mounting	Any Position Except Inp.
Mpn	4RP13
NEMA/IEC Frame	56c
Nominal Output RPM	29, 29 RPM
Nominal Ratio	60:1
Number of Stages	1
Oil Seal	Double Lip
Output Shaft Dia.	1 in
Output Shaft Dia. (In.)	1-1/8
Output Torque @ 1/2 HP	636 in-lb, 636 in-lbs
Output Torque @ 1/2 HP .	636
Output Torque @ 1/3 HP	423 in-lbs
Output Torque @ 1/3 HP .	423
Output Torque @ 1/4 HP	305 in-lb
Output Torque @ 1/4 HP .	305
Output Torque @ 1/40 HP	3600 in.-lb.
Overhung Load	875 lb.
Overhung Load (Lb.)	875
Pinion Material	Hardened Steel
Prop 65	WARNING: Cancer and Rep.
Rotation	Forward/Reversible, For.
Seal Type	Double Lip
Shaft Assembly	Right
Shaft Orientation	Right Angle
Ship Weight	31 lbs.
Single/Double Output/Un.	Single Output
SKU	ZO-G2417082
Solid/Hollow Output Sha.	Solid
Speed Reducer Type	C-Face
Standards	AGMA
SubCategory	Power Transmission
Type	C-Face
UPC	190735333136
Worm Center Distance	2.06"
Worm Gear Material	Bronze

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2417082	680.99	1	16		Dayton	30.4	680.99 @ 1
	AmazonSC	B000LEWAVW	752.03	1	In Stock		Dayton		752.03 @ 1
	grainger.ca	WWG4RP13	810.78336648	1	In Stock		DAYTON	30.4	810.78336648 @ 1
	simsupply.com	ZO-G2417082	821.34	1	3		Dayton		821.34 @ 1
	sustainablesupply.com	C2777151	898.41	1	In Stock		Dayton	30.4	898.41 @ 1
	Raptor Supplies	AD9FYA	1118.065104	1	In Stock		DAYTON		1118.065104 @ 1
	emotorpro.com	4RP13	1228.2	1	In Stock		Dayton	31.0	1228.2 @ 1
