- mpn4RP31
- brandname: DAYTON
- manufacturername: DAYTON

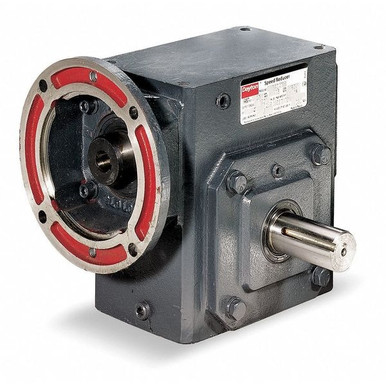

Speed Reducer, C-Face, 56C, 30:1
- Brand: Dayton
- PartNumber: 4RP31
- Model: 4RP31
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 3 |
| Dimension U | 1 1/8 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56c |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade, Klub. |
| Max. Input HP | 1, 1 hp |
| Max. Output Torque | 809 in-lb, 809 in.-lb. |
| Max. Torque (In.-Lbs.) | 809 |
| Mounting | Any Position Except Inp. |
| Mpn | 4RP31 |
| NEMA/IEC Frame | 56c |
| Nominal Output RPM | 58, 58 RPM |
| Nominal Ratio | 30:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 1/8 in |
| Output Shaft Dia. (In.) | 1-1/8 |
| Output Shaft Diameter | 1 1/8 in |
| Output Shaft Height | 2 1/2 in |
| Output Shaft Height (In. | 2-1/2 |
| Output Torque @ 1 HP | 809 in-lbs |
| Output Torque @ 1 HP (I. | 809 |
| Output Torque @ 1.5 HP | 809 in.-lb., 809 in-lbs |
| Output Torque @ 1/2 HP | 384 in-lbs |
| Output Torque @ 1/2 HP . | 384 |
| Output Torque @ 1/3 HP | 242 in-lb |
| Output Torque @ 1/4 HP | 172 in-lb, 172 in.-lb. |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Output Torque @ 3/4 HP | 597 in-lb, 597 in-lbs |
| Output Torque @ 3/4 HP . | 597 |
| Overhung Load | 845 lb. |
| Overhung Load (Lb.) | 845 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 84156 |
| Rotation | CW/CCW, Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Right |
| Shaft Orientation | Right Angle |
| Ship Weight | 34 lbs. |
| Single/Double Output/Un. | Single Output |
| SKU | ZO-G2132173 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735333310 |
| Worm Center Distance | 2.37" |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B000LESXHW | 352.46 | 1 | In Stock | 2 | Dayton | | 352.46 @ 1 |
| AmazonUNK | B000LESXHW | 352.46 | 1 | In Stock | | Dayton | | 352.46 @ 1 |
 | Zoro | G2132173 | 602.99 | 1 | 12 | | Dayton | 33.15 | 602.99 @ 1 |
 | simsupply.com | ZO-G2132173 | 744.42 | 1 | 3 | | Dayton | | 744.42 @ 1 |
| AmazonSC | B000LESXHW | 806.7 | 1 | In Stock | | Dayton | | 806.7 @ 1 |
 | sustainablesupply.com | C2777097 | 872.42 | 1 | In Stock | | Dayton | 33.15 | 872.42 @ 1 |
 | Raptor Supplies | AD9FYV | 989.8044975 | 1 | In Stock | | DAYTON | | 989.8044975 @ 1 |
| grainger.ca | WWG4RP31 | 1004.43566534 | 1 | In Stock | | DAYTON | 33.15 | 1004.43566534 @ 1 |
| emotorpro.com | 4RP31 | 1262.7 | 1 | In Stock | | Dayton | 34.0 | 1262.7 @ 1 |
