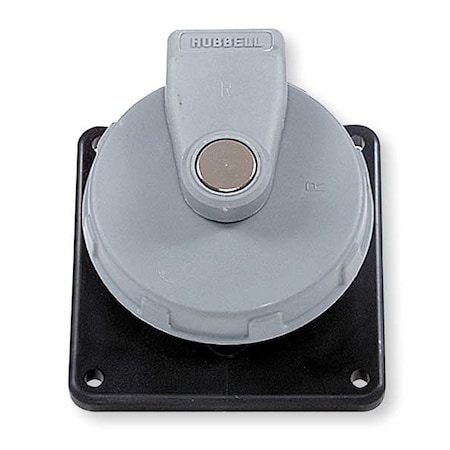

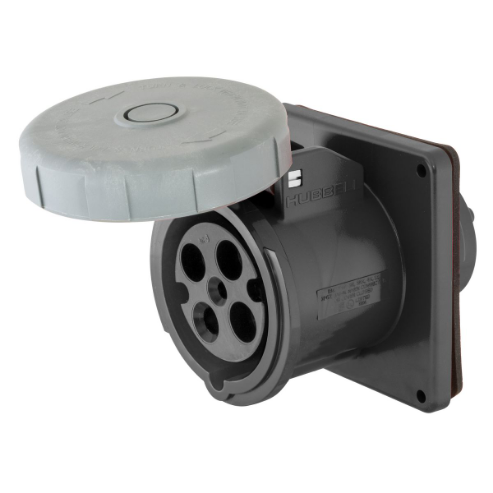

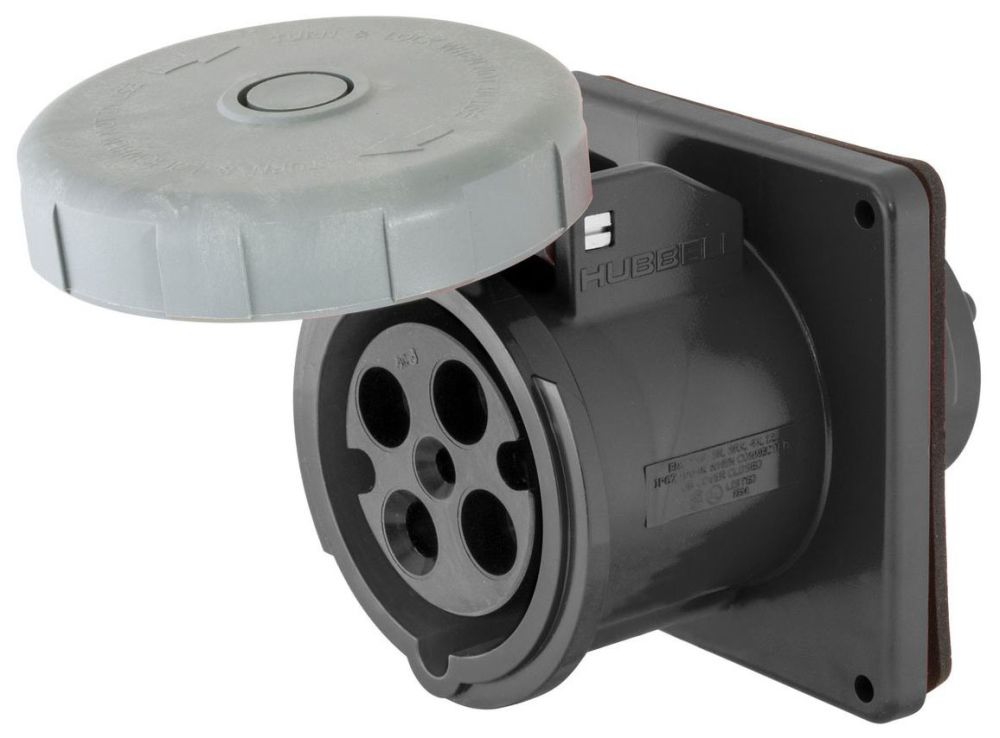

Hubbell HBL430R5W AC Receptacle IEC60309 430R5W IEC 309 Pin & Sleeve

Hubbell HBL430R5W AC Receptacle IEC60309 430R5W IEC 309 Pin & Sleevezoom

Attributes

Key Value
Amperage30 A
Amperage Rating30A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Watertigh.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#12 AWG to #8 AWG
Body MaterialZytel 101 Nylon
Body Material - Pin and.Zytel 101 Nylon
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Case MaterialNon-Metallic
ColorBlack
Color - Plugs and Recep.Black
Color FamilyBlack
Connection DescriptionWater Resistant
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.30 A
Current Rating30 A
Current rating30 A
Display TypeStandard Sized Product
ECCNEAR99
Environmental conditionsWatertight
Face Diameter3.6 in
Family SeriesHubbell Plugs & Recepta.
FeaturesColor Coded
Flange TypeFlanged
Gross Weight1.35 lbs
GroundingGrounded
Grounding StyleIEC
Horsepower Rating10 hp
Housing ColorBlack
Housing ColourBlack
Housing MaterialThermoplastic
Housing Material GradeZytel 101
Housing Material TypeNon-Metallic
HP10 hp
Hub Type Stand-InStraight
IP RatingIP67
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBL430R5W
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBL430R5W
MarketIndustrial
MaterialThermoplastic
Material - mounting har.Screw Mounting
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size12 AWG
Mounting Box Hub TypeReceptacle Only
NEMA Enclosure Rating4X
Nema RatingNon-NEMA
Net Weight0 lbs
No. of Poles3
No. of Wires4
Number of Gangs1
Number of poles3-Pole
Number of Poles3
Number of Poles & Wires3 Pole / 4 Wire
Number of Wires4
Number of wires4-Wire
PhaseThree, Three phase
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Power Indicating LightNo
Product SeriesIEC Watertight
Rated Voltage600V AC
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
ShroudedYes
StandardCSA StandardC22.2 No. 1.
StandardsCSA Certified C22.2 No..
StyleStandard Service
Switch RatedNo
Temperature Range (F)-40-167 ?F
Terminal TypeScrew
TypeWatertight Receptacle
UL 94 Flammability Rati.HB
UNSPSC39121406
Voltage3 Phase 600 VAC, 600VAC.
Voltage - Plugs and Rec.600V AC
Voltage Color CodeBlack
Voltage Rating600V AC
Voltage rating descript.3 Phase 600 VAC
Wattage18000
Wire Connection TypeScrew Terminals
Wire size#12 AWG to #8 AWG
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL430R5W165.41In StockHubbell165.4 @ 1
thumbzoomKelly HayesHBL430R5W236.94116Hubbell Wiring Device-Kellems236.94 @ 1
thumbzoomZoroG1788315252.491In StockHubbell1.38252.49 @ 1
thumbzoomMRO Supply1022781282.671In StockHubbell Wiring282.67 @ 1
thumbzoomgordonelectricsupply.comHBL430R5W300.151In StockHUBBELL300.15 @ 1
standardelectricsupply.com124862302.861In StockHubbell302.86 @ 1
grainger.caHBLHBL430R5W303.89497221In StockHUBBELL WIRING DEVICE-KELLEMS1.38303.8949722 @ 1
thumbzoomGalcoHBL430R5W-HBBL311.761In StockHubbell1.35311.76 @ 1
steinerelectric.com26999370.621In StockHubbell Wiring Device-Kellems370.62 @ 1
us.rs-online.com71992889378.6611Hubbell Wiring Device-Kellems378.66 @ 1
Graybar88126845378.87361In StockHubbell Wiring Device - Kellems378.8736 @ 1
Newark14C5361385.841In StockHUBBELL WIRING DEVICES385.84 @ 1
kirbyrisk.com490041430.461In StockHubbell430.46 @ 1
thumbzoomRaptor SuppliesAC8QAC517.81351051In StockHUBBELL WIRING DEVICE-KELLEMS517.8135105 @ 1
