Hubbell Wiring Device-Kellems HBL430R7W

B00E2X3KW6

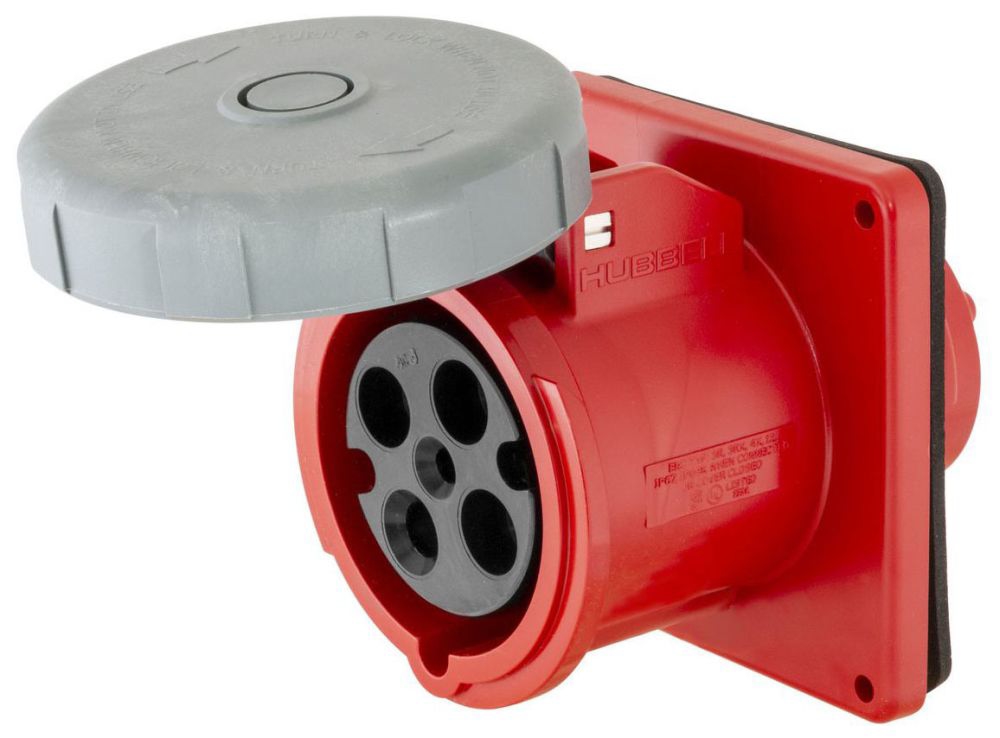

Iec Pin and Sleeve Receptacle, 30A, 480V

Iec Pin and Sleeve Receptacle, 30A, 480Vzoom

Attributes

Key Value
Amperage30 A
Amperage Rating30 Amp, 30 A, 30A
Amps30
Amps - Plugs and Recept.30
ApplicationHigh Ampacity Watertigh.
ApprovalsCSA, UL
Aux/Pilot ContactsNone
AWG Range#12 AWG to #8 AWG
Body MaterialZytel 101 Nylon
Body Material - Pin and.Zytel 101 Nylon
Brand NameHubbell-Wiring
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Carton Quantity10 EA
Case MaterialNon-Metallic
ColorRed
Color - Plugs and Recep.Red
Color FamilyRed
Conductor Size12-8 AWG
Connection DescriptionWater Resistant
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Country of OriginUS - United States
Country Of OriginUnited States of America
Country of Origin (subj.United States
Current / amperage rati.30 A
Current / Amperage Rati.30 A
Current Rating30 A, 100 A
Current rating30 A
Degree of ProtectionNo
Dielectric Strength3000 Volt AC
Display SizeStandard Sized Product
Display TypeStandard Sized Product
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsWatertight, HB or Bette.
Environmental conditionsWatertight
Face Diameter3.6 in
Family SeriesHubbell Plugs & Recepta.
FeaturesApproved as a Disconnec.
Fiber TypeNo
FinishNo
Flange TypeFlanged
GradeIndustrial
Gross Weight1.25 lbs
GroundingGrounded, No
Grounding StyleIEC
GTIN00783585404639
Horsepower Rating3 hp
Housing ColorOrange
Housing MaterialComposite
Housing Material TypeNon-Metallic
HP15
Hub Type Stand-InStraight
IP RatingIP67, IP68, IP69K
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NamePin And Sleeve Receptac.
Item NumberHBL430R7W
Item TypeSingle Flanged
Jacket MaterialNo
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer NameHubbell-Wiring
Manufacturer Part NumberHBL430R7W
MarketCommercial, Industrial
MaterialZytel? 101 Nylon, Therm.
Material - Mounting Har.Screw Mounting
Material - mounting har.Screw Mounting
Maximum Load Capacity14400 Watt
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size1 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size6 AWG
MountingScrew
Mounting Box Hub TypeReceptacle Only
NEMA ConfigurationNo
NEMA Enclosure Rating4X
Nema RatingNon-NEMA
Net Weight1.075 lbs
No. of Poles3
No. of Wires4
Number of Gangs1
Number of poles3-Pole
Number of Poles3
Number Of Poles3-Pole
Number of Poles & Wires3 Pole / 4 Wire
Number Of Wires4-Wire
Number of Wires4.0000, 4
Number of wires4-Wire
OEM Brand NameHubbell Wiring Device-K.
PhaseThree, Three phase
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Pin & Sleeve Standards`IEC 60309
Power Indicating LightYes
Product SeriesIEC Watertight
Rated Voltage480V AC
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
RoHS FlagYes
SeriesHBL Heavy Duty
ShroudedYes
StandardCSA StandardC22.2 No. 1.
StandardsUL E146032 Listed, CSA .
StyleStandard Service
Switch RatedNo
Temperature Range (F)-40-167 ?F
Temperature Rating-40 to 75 deg C
Terminal ConnectionPressure Screw Terminal
Terminal TypeScrew
TypePolarized, Watertight, .
UL 94 Flammability Rati.V-0
UNSPSC39121406
UPC783585404639, 783585404.
UPC Code783585404639
Voltage480VAC, 480 V, 3 Phase .
Voltage - Plugs and Rec.480V AC
Voltage Color CodeRed
Voltage Rating3 Phase 480 VAC, 480 Vo.
Voltage Rating Descript.3 Phase 480 VAC
Voltage rating descript.3 Phase 480 VAC
Wattage14400
Wire Connection TypeScrew Terminals
Wire Size10 AWG, 11 AWG, 12 AWG,.
Wire size#12 AWG to #8 AWG
Wire Size Range12-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD759238109.481In StockHUBBELL109.48 @ 1
thumbzoomsustainablesupply.comC1207522216.011In StockHubbell1.25216.01 @ 1
AmazonTPB0078RKIY6221.511In Stock2Hubbell221.51 @ 1
thumbzoomrobsindustrial.comHBL430R7W229.551In StockHUBBELL229.55 @ 1
thumbzoomKelly HayesHBL430R7W236.94158Hubbell Wiring Device-Kellems236.94 @ 1
Monarch Electric63591237.991In StockHubbell-Wiring237.99 @ 1
thumbzoomCarlton Bates Company78358540463241.671In StockHUBBELL241.67 @ 1
LCOMP78358540463241.671In StockHubbell Wiring Device-Kellems241.67 @ 1
thumbzoomZoroG0874921249.91In StockHubbell1.25249.9 @ 1
thumbzoomMRO Supply1022784282.671In StockHubbell Wiring282.67 @ 1
Onlinecomponents.comHBL430R7W289.1211Hubbell Wiring Device-Kellems289.12 @ 1
thumbzoomgordonelectricsupply.comHBL430R7W300.151In StockHUBBELL300.15 @ 1
thumbzoomGalcoHBL430R7W-HBBL311.761In StockHubbell1.25311.76 @ 1
thumbzoomUnited Electric112260325.2715WIRING DEVICE-KELLEMS325.27 @ 1
cbtcompany.comHBL430R7W331.191In StockHubbell Wiring Device-Kellems331.19 @ 1
thumbzoomturtle.comHUB HBL430R7W342.741In StockHubbell342.74 @ 1
thumbzoommayerelectric.comHUBHBL430R7W343.611In StockHUBBELL WIRING DEVICES343.61 @ 1
steinerelectric.com27000370.621In StockHubbell Wiring Device-Kellems370.62 @ 1
Graybar88126847378.873611Hubbell Wiring Device - Kellems378.8736 @ 1
us.rs-online.com70575058389.1611Hubbell Wiring Device-Kellems389.16 @ 1
thumbzoomNewark89F3031394.321In StockHUBBELL WIRING DEVICES394.32 @ 1
kirbyrisk.com490042420.81112Hubbell420.81 @ 1
thumbzoomRaptor SuppliesAE7LJW555.02126551In StockHUBBELL WIRING DEVICE-KELLEMS555.0212655 @ 1
