INA AXK0821-TV

B007D2RWE0

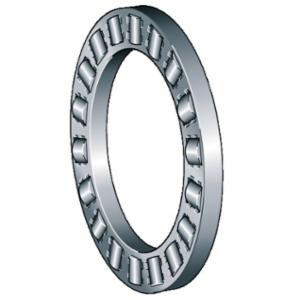

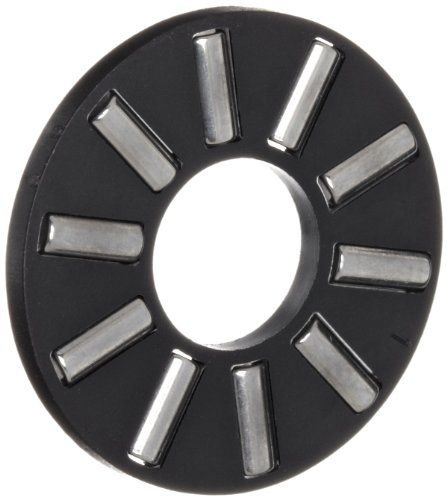

INA AXK0821TN Thrust Needle Bearing, Axial Cage and Roller, Polyamide Nylon Cage, Open End, Metric, 8mm ID, 21mm OD, 2mm Width, 4.4lbf Static Load Capacity, 1.75lbf Dynamic Load Capacity

INA AXK0821TN Thrust Needle Bearing, Axial Cage and Roller, Polyamide Nylon Cage, Open End, Metric, 8mm ID, 21mm OD, 2mm Width, 4.4lbf Static Load Capacity, 1.75lbf Dynamic Load Capacityzoom

Attributes

Key Value
Bearing DesignAXK
Bearing Industry Number821
Bore Dia. (In.)-
Bore Dia. (mm)8 mm
Bore Diameter8 mm
Cage MaterialPA66
Compatible WasherAS821
Country of Origin (subj.Germany
Dimension D2-
Dimension d2 (mm)-
DirectionAxial
Dynamic Axial Load Capa.7,800 N
Dynamic Load Capacity (.-
Dynamic Load Capacity (.7,800 N
Height (In.)-
Height (mm)2 mm
ItemNeedle Roller Thrust Be.
Lubricant MaterialOil
LubricationOil
Material-
Max. RPM18,000 RPM
Maximum Speed18,000 RPM
Maximum Temperature120 Degrees C
Minimum Temperature-20 Degrees C
Outside Dia. (In.)-
Outside Dia. (mm)21 mm
Outside Diameter21 mm
Overall Width2 mm
Roller Dia. (In.)-
Roller Dia. (mm)-
Roller MaterialAlloy Steel
Roller Material Grade100Cr6
Static Axial Load Capac.19,400 N
Static Load Capacity (L.-
Static Load Capacity (N)19,400 N
System of MeasurementMetric
Temp. Range (F)-5 Degrees to +250 Deg.
Thrust Bearing TypeThrust Needle Roller an.
TypeNeedle Roller
Washer MaterialNot Applicable
Washer Material GradeNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomPurvisAXK0821-TV4.53122INA4.53 @ 1
thumbzoomZoroG19929256.421In StockIna0.016.42 @ 1
