Infineon Technologies IPD040N03LGATMA1

B07PP4N1F1

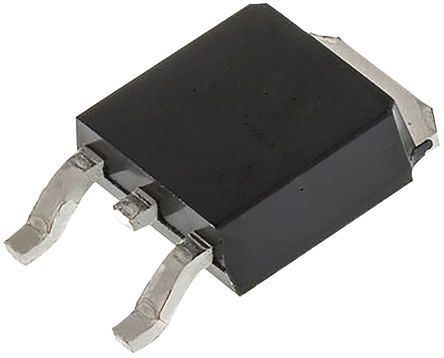

IPD040N03LGATMA1, Trans MOSFET N-CH 30V 90A 3-Pin(2+Tab) DPAK T/R (50 Items)

IPD040N03LGATMA1, Trans MOSFET N-CH 30V 90A 3-Pin(2+Tab) DPAK T/R (50 Items)zoom

Attributes

Key Value
Base Product NumberIPD040
BrandInfineon
CasePG-TO252-3
CategoryDiscrete Semiconductor .
Channel ModeChannel Mode
Channel TypeChannel Type
cms-categoryDiscrete Semiconductor .
Current - Continuous Dr.90A (Tc)
Drain current79A
Drain to Source Voltage.30 V
Drain-source voltage30V
Drive Voltage (Max Rds .4.5V, 10V
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .38 nC @ 10 V
Gate-source voltage?20V
Height2.41mm
Input Capacitance (Ciss.3900 pF @ 15 V
Kind of channelenhanced
Length6.73mm
ManufacturerInfineon Technologies
Maximum Continuous Drai.90 A
Maximum Drain Source Re.Maximum Drain Source Re.
Maximum Drain Source Vo.Maximum Drain Source Vo.
Maximum Gate Source Vol.Maximum Gate Source Vol.
Maximum Gate Threshold .2.2V
Maximum Operating Tempe.+175 ?C
Maximum Power Dissipati.79 W
MfrInfineon Technologies
Minimum Gate Threshold .Minimum Gate Threshold .
Minimum Operating Tempe.-55 ?C
MountingSMD
Mounting TypeSurface Mount
Number of Elements per .1
On-state resistance4m?
Operating Temperature-55?C ~ 175?C (TJ)
PackageTape & Reel (TR)
Package / CaseTO-252-3, DPak (2 Leads.
Package TypeDPAK (TO-252)
Pin CountPin Count
Polarisationunipolar
Power dissipation94W
Power Dissipation (Max)79W (Tc)
Product StatusActive
Rds On (Max) @ Id, Vgs4mOhm @ 30A, 10V
SeriesOptiMOS 3, OptiMOS?
StockStock
Supplier Device PackagePG-TO252-3-11
TechnologyMOSFET (Metal Oxide), O.
Transistor ConfigurationSingle
Transistor MaterialSi
Type of transistorN-MOSFET
Typical Gate Charge @ V.Typical Gate Charge @ V.
Vgs (Max)?20V
Vgs(th) (Max) @ Id2.2V @ 250?A
Width6.22mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers857-45620.4824250050Infineon0.4824 @ 2500
thumbzoomTMEIPD040N03LGATMA10.7128150INFINEON TECHNOLOGIES0.7128 @ 50
Digi-Key17857041.2531990Infineon Technologies1.253 @ 50
