Johnson Controls T-3311-1

B008FM35W0

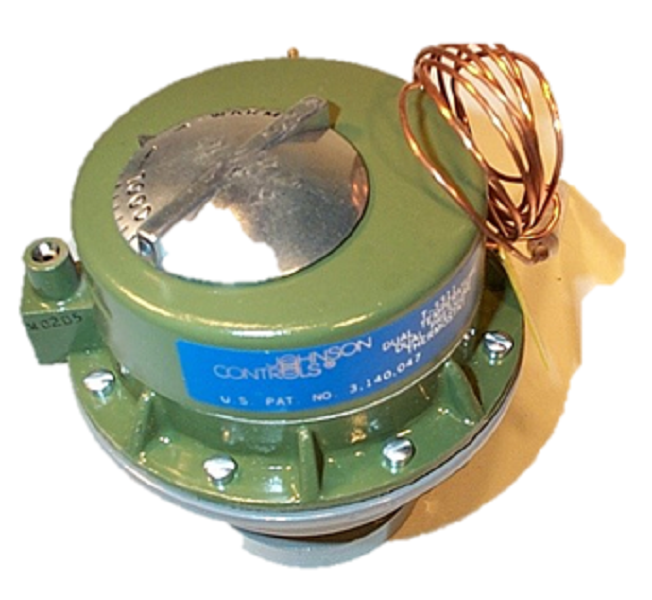

Johnson Controls T-3311-1 Pneumatic Thermostat, RA/DA, 60 to 150 Degree F

Johnson Controls T-3311-1 Pneumatic Thermostat, RA/DA, 60 to 150 Degree Fzoom

Attributes

Key Value
ActionDirect and Reverse
Action Type - Pneumatic.Direct Acting and Rever.
Air Connection Outside .1/4 in
Air Connections1/4 in Barb
Air Consumption1.5 scim, 1.5 scfm
Air Flow OutputHigh Volume
Air Restrictor RequiredYes
ApplicationHeat and Cool
Best Sellers RankSee Top 100 in Tools & .
BrandJohnson Controls
Capillary Length42 in
Control Air Pressure0 to 25 psi
Control Air Pressure Se.15 psig (Day)/ 20 psig .
Date First AvailableJune 28, 2012
Depth5 in
Dial ConfigurationWarm/Cold
Differential TypeAdjustable
Family SeriesJohnson Controls Miscel.
Fitting ConnectionBarbed 1/4 in
Gross Weight2.64 lbs
Heating / CoolingHeating and Cooling
Height5 in
IncludesBracket and Cover
Includes CoverYes
International ShippingNo
ItemPneumatic Thermostat
Item model numberT-3311-1
Item NumberT-3311-1
Key FeaturesAutomatically Changes B.
ManufacturerJohnson Controls, Johns.
Manufacturer Part NumberT-3311-1
Max. Air Pressure25 psi
Max. Ambient Temp.150 Degrees F
Maximum Air Pressure20 psig
Maximum Control Tempera.150 Degrees F
Minimum Control Tempera.60 Degrees F
Mounting DirectionValve Top
Mounting Direction/Capi.Valve Top, 42 in
Mounting LocationValve Top
MpnT-3311-1
Net Weight2.1 lbs
Number of DialsSingle
Number of Pipes2
Overall Depth5 in
Overall Height5 in
Overall Width5 in
Package Dimensions9.5 x 5.3 x 5.1 inches;.
Pneumatic Thermostat Ty.Piston Valve Actuator w.
Product with faster shi.true
Promotion RestrictionNot eligible for promot.
Reverse Acting / Direct.Direct Acting and Rever.
Sensor TypeRemote Bulb
Shippingundefined (Fixed Shippi.
Single Temp. / Dual Tem.Dual Temperature
SKUZO-G5063301
Temp. Control Range60 Degrees to 150 Degr.
Temperature Output Sett.Dual Temperature
Temperature ScaleCelsius/Fahrenheit
Temperature Sensitivity0.5 psi/ Degrees F (Ave.
Temperature SettingsDual Temperature
Thermostat ActionDirect - 15 psig, Rever.
Thermostat ApplicationHeating and Cooling
UPC78502836544
Weight2.00
Width5 in
