Leeson 116613.00

B00EP2VRFQ

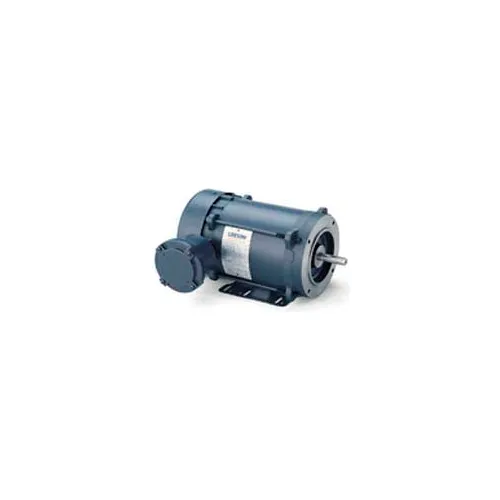

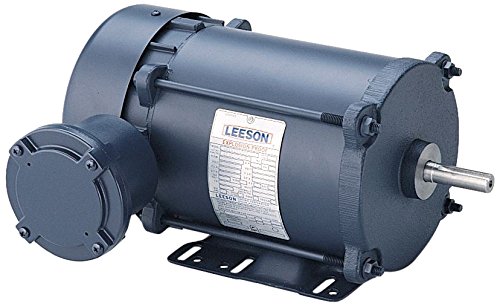

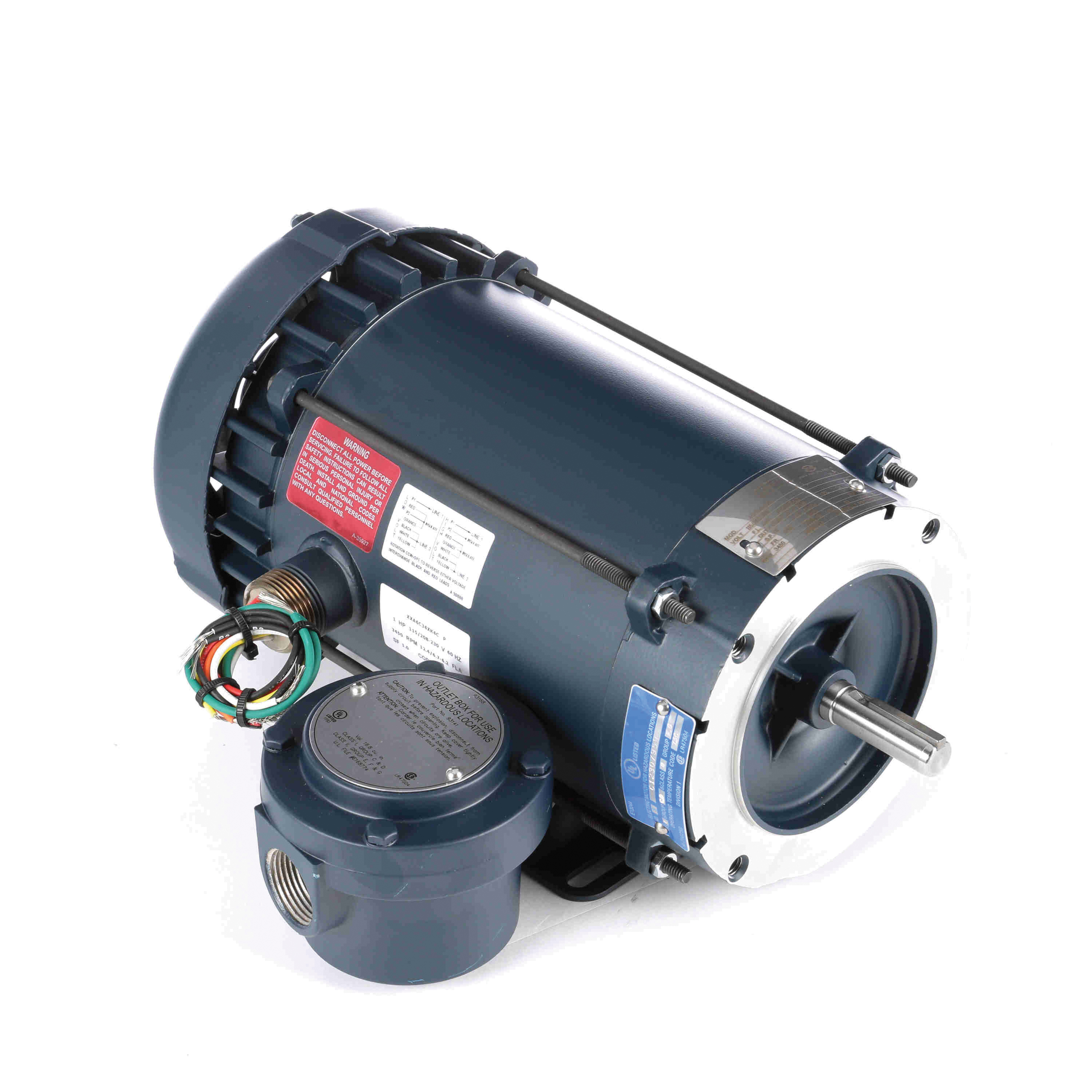

Leeson 116613.00 Rigid Base Explosion-Proof Motor, 1 Phase, 56C Frame, Rigid Mounting, 1HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 116613.00 Rigid Base Explosion-Proof Motor, 1 Phase, 56C Frame, Rigid Mounting, 1HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating12.4/6.7 to 6.2 A
Amps12.4/6.7-6.2
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupA6C34XK4
CompositionSteel
ConstructionRolled Steel
Description:1HP..3450RPM.56.EPFC./V.
Dimensions14.44 in L x 8.2 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency72.0%, 72
EnclosureTEFC, Explosion Proof, .
Enclosure MaterialRolled Steel
Enclosure TypeEPFC, EPFC (Explosion P.
Estimated Weight50.00
Explosion Proof RatingClass I (Group C,D) Cla.
Family SeriesLeeson Motors, Explosio.
FL Amps12.4/6.7-6.2
FL Efficiency72
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hazardous LocationDIV 1 EXP PROOF CL I GR.
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number116613.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number116613.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:116613.00
Model NumberA6C34XK4
Motor Shell Length7.31"
MountingFoot Mount, Rigid Base
mountingC-face w/ rigid base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame56C
Net Weight50 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length14.44", 14.44 "
Overload ProtectionAutomatic
Part Number116613.00
Phase1, 1 ph
Product SeriesExplosion Proof
Product TypeExplosion Proof, Capaci.
RotationSelective CCW, Reversib.
RPM3450, 3600, 3400 - 3600.
Service Factor1, 1.0
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight36 lbs.
Special FeaturesCapacitor Start Motors,.
Speed3450 rpm
Speed (RPM)3450
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionAutomatic
UPC:691720341841
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com116613500.01In StockLEESON500.0 @ 1
AmazonTPB0773R8CLG654.31In Stock5Leeson Electric654.3 @ 1
thumbzoomMRO Supply2525966728.441In StockLeeson728.44 @ 1
thumbzoomPurvis116613LEE733.731In StockLEESON733.73 @ 1
thumbzoomemotorpro.com116613.00794.641In StockLeeson36.0794.64 @ 1
thumbzoomDealers Electric116613.00909.651In StockLeeson36.0909.65 @ 1
us.rs-online.com73397305980.221In StockLeeson980.22 @ 1
thumbzoommotorsandcontrol.comLE-116613.00999.1712Leeson Electric50.0999.17 @ 1
thumbzoomGalco116613.00-LEES1006.711In StockLeeson50.01006.71 @ 1
kscdirect.comLEE 116613.001044.211In StockLEESON ELECTRIC CORPORATION1044.21 @ 1
thumbzoomcbtcompany.com116613.001106.91In StockLeeson Electric1106.9 @ 1
thumbzoomWalker Industrial116613-001132.41In Stock17Leeson1132.4 @ 1
thumbzoomGlobal IndustrialWBB5885471242.01In StockLeeson1242.0 @ 1
thumbzoompumpproducts.com116613.001355.421In StockLeeson1355.42 @ 1
thumbzoomRaptor SuppliesAJ2QTY1425.2469661In StockLEESON1425.246966 @ 1
