Leeson 132255.00

B00EP3MEWU

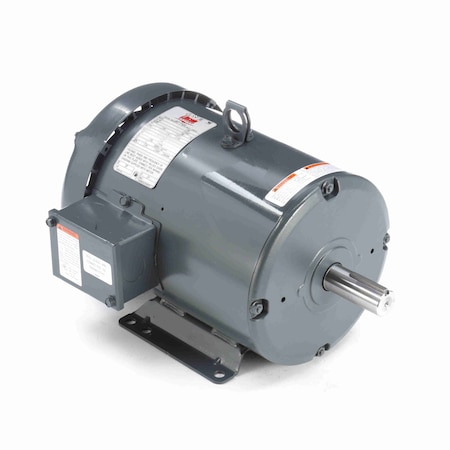

Leeson 132255.00 Special Voltage Motor, 3 Phase, 184T Frame, Rigid Mounting, 5HP, 1800 RPM, 575V Voltage, 60Hz Fequency

Leeson 132255.00 Special Voltage Motor, 3 Phase, 184T Frame, Rigid Mounting, 5HP, 1800 RPM, 575V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC184T17FB64
CompositionSteel
Country of Origin (subj.Mexico
Description:..5HP..1760.184T.TEFC.5.
Dimensions14.96 in L x 10.37 in H
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, Special .
Frame184T
Frame Remarks575 VOLT
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower5 hp
HP5
Insulation ClassClass F
Item ConditionFACTORY NEW
Item Number132255.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number132255.00
MaterialRolled Steel
MFG Part #:132255.00
Model NumberC184T17FB64
mountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame184T
Net Weight94 lbs
Nominal Voltage575 VAC
Number of Poles4
Number of Speeds1
Overall Length15.96 "
Phase3, 3 ph
Product SeriesSpecial Voltage
RotationReversible
RPM1,800 RPM, 1800
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size1.13 in Dia x 2.75 in L
Speed1760 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720299166
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco132255.00-LEES558.521In StockLeeson94.0558.52 @ 1
thumbzoomMRO Supply2526518676.71In Stock14Leeson94.0676.7 @ 1
thumbzoomWalker Industrial132255-00698.21In Stock10Leeson698.2 @ 1
AmazonTPB0773TKCJX726.361In Stock5Leeson Electric726.36 @ 1
thumbzoomZoroG24766041001.161In StockLeeson1001.16 @ 1
thumbzoomDealers Electric132255.001027.351In StockLeeson94.01027.35 @ 1
kscdirect.comLEE 132255.001139.81In StockLEESON ELECTRIC CORPORATION1139.8 @ 1
thumbzoompumpproducts.com132255.001201.031In StockLeeson1201.03 @ 1
