Leviton OSSMT-GDG

B002NU6MCK

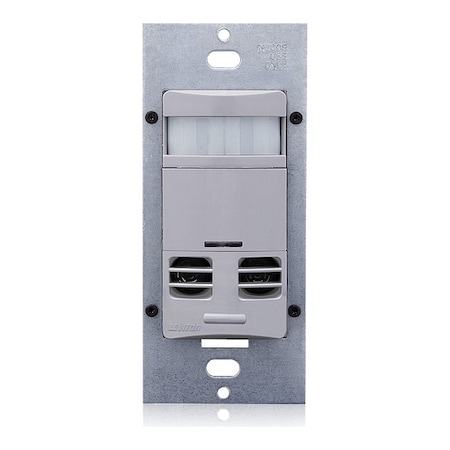

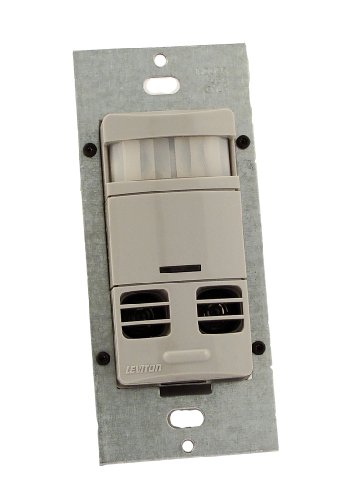

Leviton OSSMT-GDG Ultrasonic/Infrared, Multi-Technology Wall Switch Sensor, No Neutral, 2400 sq. ft. Major & 400 sq. ft. Minor Motion Coverage, Gray

Leviton OSSMT-GDG Ultrasonic/Infrared, Multi-Technology Wall Switch Sensor, No Neutral, 2400 sq. ft. Major & 400 sq. ft. Minor Motion Coverage, Grayzoom

Attributes

Key Value
07847740699UPC
1/4 HP @ 120VMotor:
120-277 Volt ACVoltage (V)
5-Year LimitedWarranty
800W@120V INC 1200VA@12.Rating
ASINB002NU6MCK
Batteries Required?No
Case Pack1
CategoryLighting Controls
ColorGray, Grey
Color - Motion Sensing .Gray
Color FamilyGray
Communication Method - .Hard Wired
Control OutputManual On/Automatic Off
Country of OriginMX - Mexico, MX
Coverage2400 sq-ft
Coverage (Degrees / Squ.180/2400
Coverage Angle - Motion.180 Degrees
Coverage at Suggested M.2,400 sq ft
Description:MT WB OCC, 120-277VAC, .
Device Type: Occupancy .Type
Dimensions4.06 in H x 1.75 in W x.
ECCNEAR99
Environmental Condition.Operating Temperature (.
ETL/cETL / CSA / FCC / .UL Listed
For additional options .Notes
Frequency50/60Hz
Frequency Rating:50/60 Hz
GrayColor
Installation Location -.Wall Switch Box
Installation TypeWall Mount
ItemOccupancy Sensor
Item - Motion Sensing a.Occupancy Sensor
Item model numberOSSMT-GDG
Item Package Quantity1
Lamp TypeFluorescent/Incandescen.
LevitonBrand
Lighting Sensor TypePassive Infrared/Ultras.
Lighting TechnologyFluorescent, Incandesce.
ManufacturerLeviton Manufacturing, .
Max. Capacity @ 120VAC1200V (Fluorescent), 80.
Max. Capacity @ 277VAC2700VA (Fluorescent)
MFG Part #:OSSMT-GDG
Mounting TypeWall
Mounting:Wall
Neutral Wire ConnectionNot Required
Occupancy & Vacancy Sen.Family
Operating Voltage - Mot.120 to 277V AC
OSSMT-GDGStock Code
Part NumberOSSMT-GDG
Power Consumption:110 @ 120V (U/S & PIR);.
Power Rating70 to 340 mW
Relative Humidity20% to 90% non-condensi.
Response Frequency50/60 Hz
Sensing TechnologyPassive Infrared, Ultra.
Sensor TypePIR/Ultrasonic, Occupan.
Single-PoleSwitch Type:
SizeHeight 4.06" (103.12mm).
Size:46 H x 1.75 W x 1.85 D .
Standard Pack:Order QTY must be in mu.
Standard:ETL\cETL Listed;CSA Cer.
StandardsCSA, ETL/cETL Listed, T.
Sub Brand:Decora
Supplier:Leviton
Supply Voltage:120/230/277/347 VAC
Switch Type1-Pole
Temperature Rating0 to 40 deg C
Time Delay30s - 30m, 30 s to 30 m.
Time Delay - Motion Sen.30 sec to 30 min
Time Delay Adjustment M.Adaptive, Adjustable
Time Delay TypeAdaptive
Timer Range30 Seconds to 30 Minutes
Type1-Pole
Type:Occupancy Sensor;Single.
UNSPSC45111808
UPC078477406991
UPC Code078477406991
UPC:078477406991
Use With - Motion Sensi.1/4 HP Motor
Viewing Angle180 deg
Voltage120-277 VAC
Voltage Rating120/277 VAC
Wall SwitchMounting

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB002NU6MCK47.941In StockLeviton47.94 @ 1
thumbzoomZoroG00439350164.551In StockLeviton0.3764.55 @ 1
thumbzoomimprovedepot.com86942674.21In StockLeviton74.2 @ 1
kscdirect.comLEV OSSMT-GDG77.481In StockLEVITON77.48 @ 1
thumbzoomelectricsuppliesonline.comOSSMT-GDG82.031In StockLEVITON82.03 @ 1
Dale-ElectricOSSMT-GDG83.931In StockLeviton Manufacturing83.93 @ 1
thumbzoomLighting SupplyOSSMT-GDG85.221In StockLeviton85.22 @ 1
thumbzoomturtle.comLEV OSSMT-GDG97.431In StockLeviton97.43 @ 1
thumbzoomPlatt.com076412797.741In StockLeviton97.74 @ 1
Graybar25541286103.44321In StockLeviton103.4432 @ 1
us.rs-online.com71693275103.5511Leviton103.55 @ 1
thumbzoomNational Supply NetworkB455421104.415In StockLEVITON MFG CO., INC104.41 @ 5
thumbzoomRadwellOSSMT-GDG105.010In StockLEVITON105.0 @ 10
thumbzoombulbspro.comOSSMT-GDG176.751In StockLeviton176.75 @ 1
