Little Giant 508357

mpn508357
brandname: Little Giant
manufacturername: Little Giant

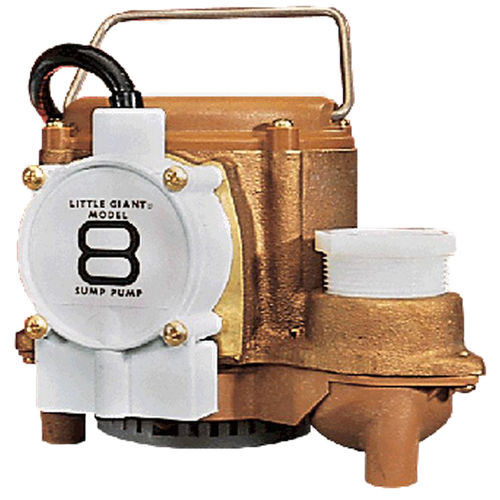

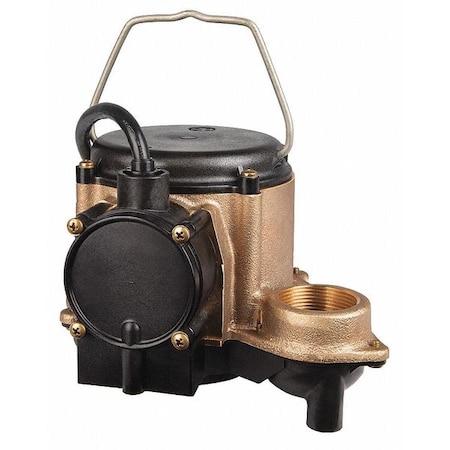

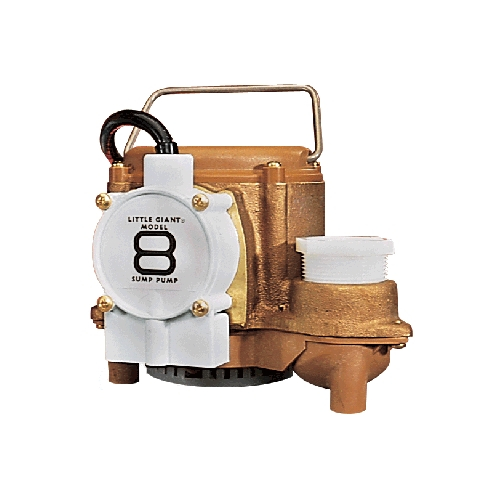

Little Giant 8-CBA 115 Volt, 4/10 HP, 3240 GPH Automatic Bronze Submersible Sump Pump for Aggressive Water Conditions with Integral Diaphragm Switch and 10-Ft. Cord, Bronze, 508357

Brand: Little Giant
PartNumber: 508357
Model: 8-CBA
Color: Bronze
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Franklin Electric Co., Inc.
Label: Franklin Electric Co., Inc.

Attributes

Key	Value
Alarm	No
Alarm Included	No
AMP	10
Amperage Rating	10 A
Amps	10 A
Amps - Pumps	10.00
Automatic Shut-Off	Yes
Base Material	Polypropylene
Bearing Type	Ball, Upper and Lower S.
Body Dia.	9 1/2 in
Body Material	Cast Bronze
Brand	Little Giant
Collection	8 Series
Cord Length	10 ft
Cord Length - Pumps	9 ft.
Cord Type	SJTW 18/3 AWG 10 ft
Corded Cordless	Corded
Country of Origin (subj.	Mexico
Current Stock	12
Description:	8-CBA 115V 10FT 50/60HZ.
Diameter	9-1/2"
Dimensions	9-1/2 in L x 8-1/2 in W.
Discharge	1 1/2 in FNPT, 1-1/2 in
Discharge Configuration	Vertical
Discharge Dia.	1 1/2 in
Discharge Gender	Female
Discharge NPT	1-1/2" F
Discharge Pressure	9.9
Discharge Standard	NPT
Domestic/Import	Import
Duty Cycle	Continuous
Flow Rate	54 gpm
Flow Rate @ 10 Ft. of H.	42 gpm
Flow Rate @ 15 Ft. of H.	26 gpm
Flow Rate @ 20 Ft. of H.	7 gpm
Flow Rate @ 5 Ft. of He.	54 gpm
Frequency Rating	50/60 Hz
Gauge/Conductor	18/3
GPM of Water @ 10 Ft. o.	42
GPM of Water @ 15 Ft. o.	26
GPM of Water @ 20 Ft. o.	7
GPM of Water @ 5 Ft. of.	54
Height	6", 6 in
Horsepower	4/10 hp
Housing Material	Cast Bronze
HP	4/10
Hz	50/60 Hz
Impeller	Polypropylene
Impeller Material	Polypropylene
Impeller Material - Pum.	Glass Filled Polypropyl.
Impeller Type	Polypropylene Non-Clogg.
International Shipping	No
Item	Submersible Sump Pump
Item - Sump Pumps	Submersible Sump Pump
Length	9-1/2 in
Manufacturer	LITTLE GIANT PUMP COMPA.
Manufacturers Warranty .	2 yr
Max. Dia. Solids	1/8"
Max. Diameter Solids	1/8 in
Max. Head	23.0 ft
Max. Head - Pumps	23 ft.
Max. Liquid Temp.	140 Degrees F
Max. Temp.	140 Degrees F
Maximum Feet of Head	23
Maximum Head	22.9 ft
Maximum Pressure	9.9 psi
Maximum Suction Lift	15 ft
Mechanical Seal	CRB/CMC
MFG Part #:	508357
Motor RPM	1500
Motor Type	Split Phase
Mpn	508357
NEC Cord Designation	SJTW
Off Point	1 in to 4 in
On Point	7 in to 10 in
Outlet Size	1-1/2 in FNPT
Overall Height	6 in
Phase	Single Phase, 1 ph
Power Source	Electric
Product Type	Submersible
Prop 65	WARNING: Cancer and Rep.
Pump Application -	Sump
Pump Body Material	Cast Bronze, Bronze
Pump HP	4/10
Pump Motor Type	Shaded Pole
Pump Phase	1
Rated Voltage	115V AC
RPM	1,500 RPM
Series	8 Series
Shaft Seal	Nitrile with Carbon and.
Shaft Seal Material - P.	Carbon, Ceramic
SKU	ZO-G1481505
Standard Pack:	Order QTY must be in mu.
SubCategory	Pumps
Supplier:	LITTLE GIANT PUMP COMPA.
Switch Actuation	Diaphragm
Switch Electrical Conne.	Integral
Switch Type	Diaphragm
Switch Type - Pumps	Diaphragm
Temperature Rating	140 deg F
Type	L508357
UPC	010121089136
UPC:	0 10121 08357 8
VA Cat 60 Hz	115
Voltage	115V
Voltage - Pumps	120VAC
Voltage Rating	115 VAC
Volts	115V
Watts	830 W
Weight	21.25 lb
Width	8-1/2 in
