MARATHON U265

B0042GKXEQ

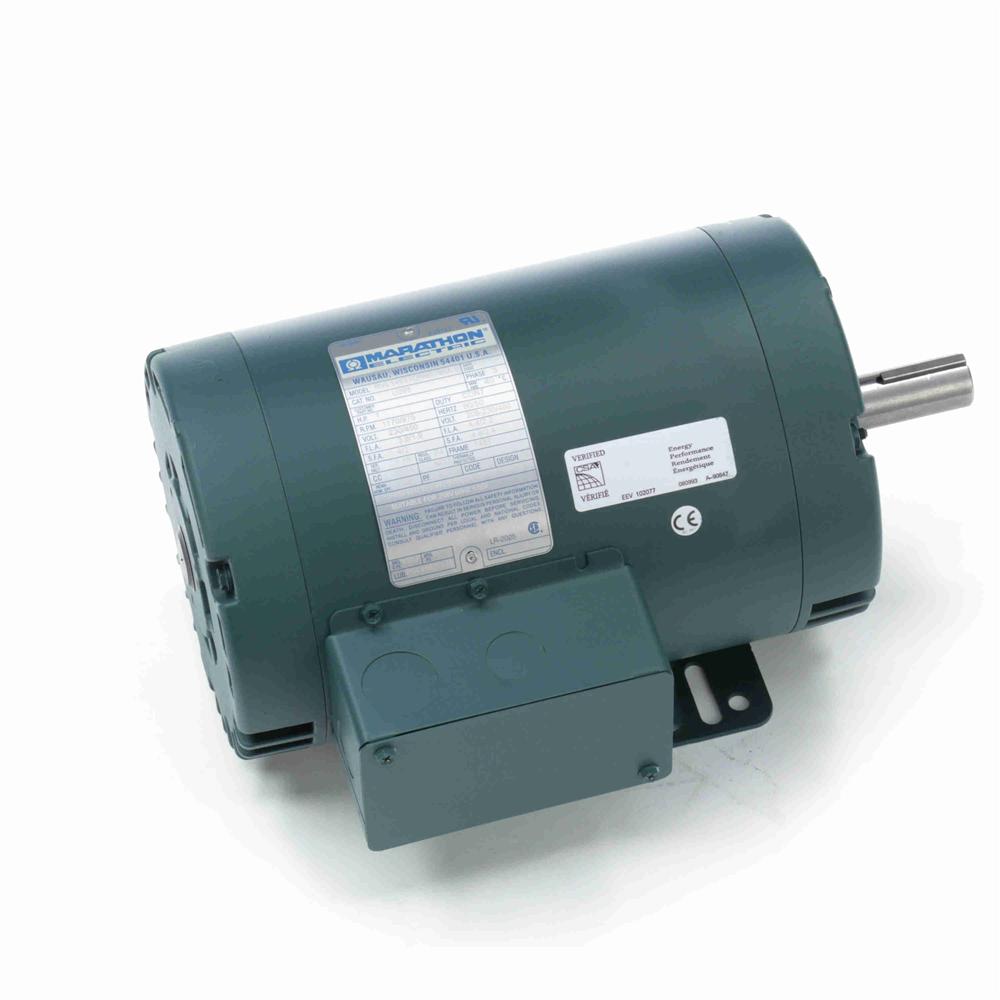

Marathon U265 Premium Efficiency Motor

Marathon U265 Premium Efficiency Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.145TTDR6076
Amps3.8/1.9
applications:Blowers and Machinery i.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionSteel
CT Speed Range10:1
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency0.825
Efficiency %82.5 %
EnclosureDrip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motor.
Frame145T
frame material:Rolled Steel
frame size:145T
frequency rating:60 Hz
full load current:3.80
full load efficiency:82.50 %
Gross Weight0 lbs
Horsepower1 hp
HP1
Hz60
Insulation ClassF
insulation class:F
Inverter DutyYes
ip rating:22
Item NumberU265
ManufacturerMarathon Electric
Manufacturer Model #145TTDR6076
Manufacturer Part Number145TTDR6076
Maximum Ambient Tempera.40? C
Model Number145TTDR6076
motor horsepower:1.00 hp, 1 hp
motor phase:3 ph
Motor Shell Length7.5"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid
mounting type:Rigid Base
Net Weight41 lbs
Number of Speeds1
Overall Length12.62 ", 12.62"
overall length (c-dimen.12.62 in
Overload ProtectionThermostat
Phase3
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM1,200 RPM, 1170
Service Factor1.15
service factor:1.15
Shaft Diameter7/8"
shaft diameter:0.88 in
Shaft Length2.37"
Ship Weight41 lbs.
standards met:UL, CSA
synchronous rpm:1200 rpm
thermal protection:Thermostat
Voltage (AC)208-230 VAC, 460 VAC
Volts230, 460
weight:41 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU265381.01In StockMARATHON381.0 @ 1
thumbzoommotionindustries.com04738989492.141In StockMarathon Electric492.14 @ 1
thumbzoomemotorpro.comU265597.931In StockMarathon41.0597.93 @ 1
thumbzoomGalcoU265-MARA644.032In StockMarathon Electric41.0644.0 @ 32
us.rs-online.com72649831733.161In StockMarathon Motors733.16 @ 1
cbtcompany.comU265787.921In StockMarathon Electric Motors787.92 @ 1
