Marathon Electric X405

B005H2SNUA

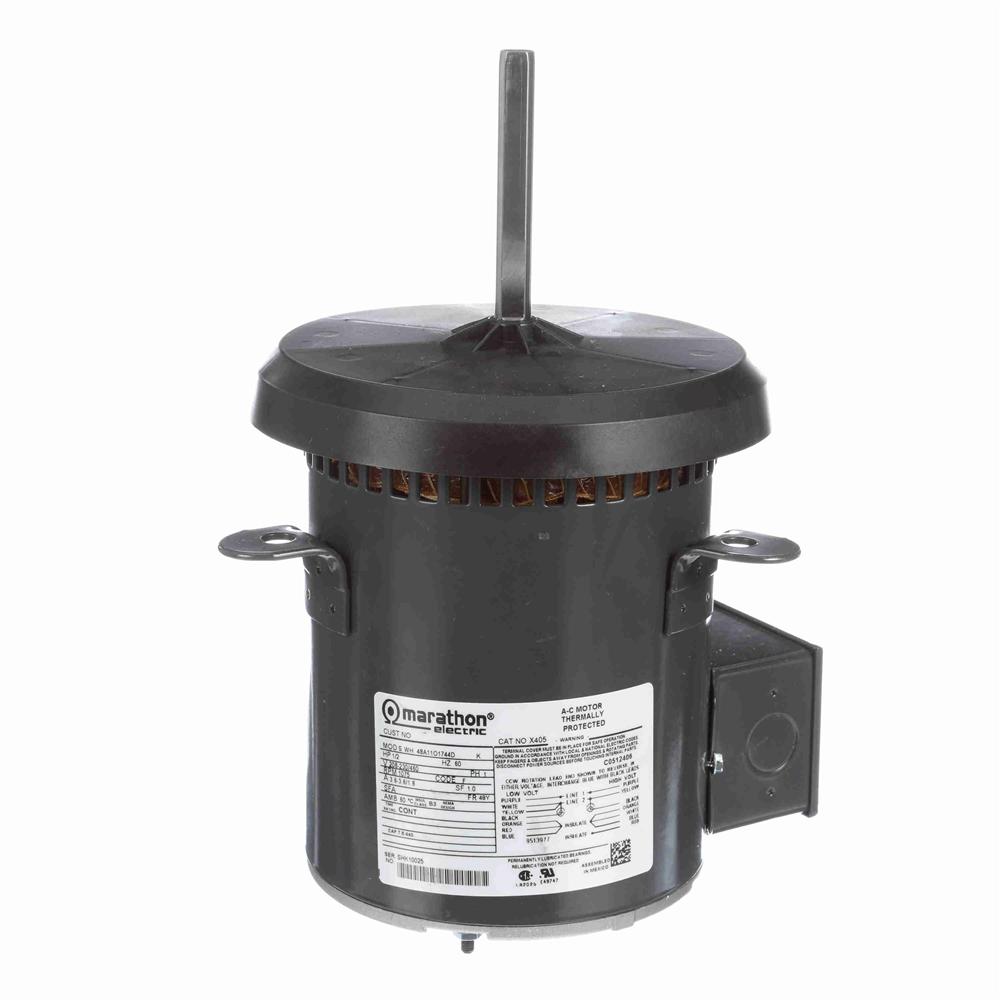

Marathon X405 48Y Frame Open Air Over 48A11O1744 OEM Carrier Motor 1/2 hp, 1075 RPM, 208-230/460 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Lug Mount

Marathon X405 48Y Frame Open Air Over 48A11O1744 OEM Carrier Motor 1/2 hp, 1075 RPM, 208-230/460 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Lug Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O1744
Amps3.6-3.6/1.8
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
Capacitor7.5MFD/440VAC Required
CompositionRolled Steel
Duty CycleContinuous
Efficiency0.657
Efficiency %65.7 %
EnclosureOpen Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
Family SeriesMarathon Electric Motors
Frame48Y
Frequency60 Hz
Gross Weight0 lbs
Horsepower1/2 hp
HP1/2
Hz60
Insulation ClassB
Item NumberX405
Kilowatts0.37 kW
ManufacturerMarathon Electric
Manufacturer Model #048A11O1744
Manufacturer Part Number048A11O1744
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor Shell Length6.38"
MountingBracket
Mounting OrientationHorizontal/Vertical
Mounting TypeThree Lug Mount
Net Weight25 lbs
Number of Poles6
Number of Speeds1
Overall Length11.82", 11.82 "
Phase1
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075, 1,075 RPM
Service Factor1
Shaft Diameter0.5 ", 1/2"
Shaft Length4.06"
Ship Weight25 lbs.
Thermal ProtectionAutomatic
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoX405-MARA78.9536In StockMarathon Electric25.078.95 @ 36
us.rs-online.com7265060992.311In StockMarathon Motors92.31 @ 1
thumbzoomemotorpro.comX405328.141In StockMarathon25.0328.14 @ 1
