Marathon Electric X526

mpnX526
brandname: MARATHON
manufacturername: MARATHON

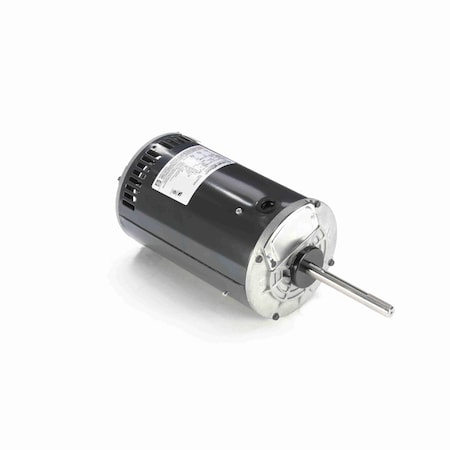

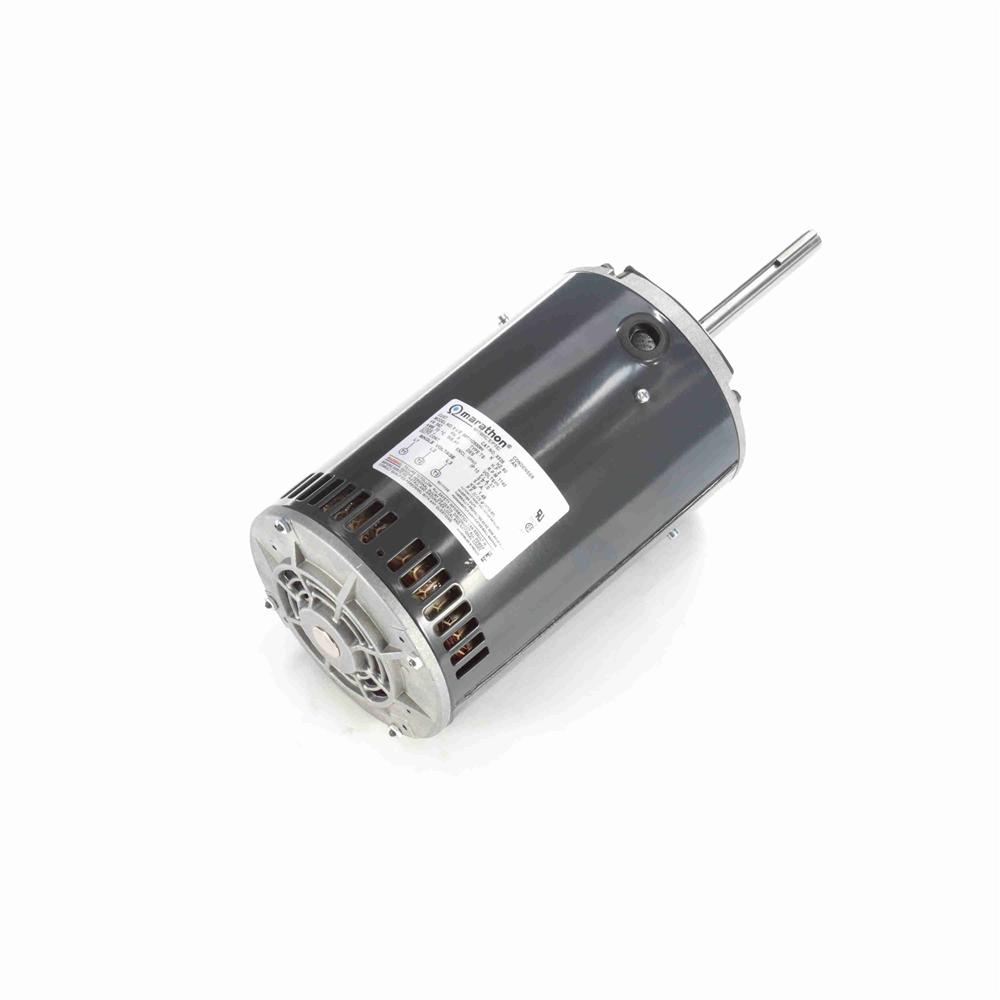

Marathon X526 56Y Frame Open Air Over 56T11O5309 Condenser Fan Motor, 2 hp, 1140 RPM, 575 VAC, 3 Phase, 1 Speed, Ball Bearing, Belly Band Mount

Marathon X526 56Y Frame Open Air Over 56T11O5309 Condenser Fan Motor, 2 hp, 1140 RPM, 575 VAC, 3 Phase, 1 Speed, Ball Bearing, Belly Band Mount

zoom

Brand: Marathon Electric
PartNumber: X526
Model: MX526
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	056T11O5309
Amps	2.7
Bearings	Ball
Brand	Marathon
C-Dimension	16.68 (in.)
Catalog Number	X526
CE	N
CSA	Y
DE Bearing Type	Ball
DEM Reference	NOHP
Duty	Continuous
Duty Cycle	Continuous
Efficiency	0.815
Electrical Type	Squirrel Cage Induction.
Enclosure	OPAO, Open Air Over
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over)
enclosure type:	OAO (Open Air-Over)
Frame	56Z
Frame Material	Rolled Steel
frame material:	Rolled Steel
frame size:	56Y
Frequency	60
frequency rating:	60 Hz
full load current:	2.70 A
full load efficiency:	81.50 %
Gross Weight	0 lbs
HP	2
Hz	60
Insulation Class	H
IP Code	10
KVA Code	J
Manufacturer Model #	056T11O5309
Max Ambient	70?C
Maximum Ambient Tempera.	70? C
motor category:	Condenser Fan Motor
Motor Diameter	6-1/2"
motor horsepower:	2.00 hp, 2 hp
Motor Orientation	Shaft Up
motor phase:	3 ph
Motor Shell Length	9.56"
motor supply voltage:	575 V
Mounting	Band
Mounting Orientation	Horizontal
Mounting Type	Round Belly Band
mounting type:	Belly Band
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	16.68"
Phase	3
Product Category	HVAC/R Motors > Conden.
Product Type	Three Phase
Rotation	Reversible
RPM	1140, 1100 - 1200
RPM (Nameplate)	1140
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
Service Factor	1
service factor:	1.00
Shaft Diameter	5/8 (in.), 5/8"
Shaft Extension	5.06 (in.)
Shaft Length	5.06"
Shaft Type	Single Special Extension
Ship Weight	45 lbs.
Speeds	1
standards met:	UL, CSA
synchronous rpm:	1200 rpm
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized ( Not Protec.
Voltage	575
Volts	575
weight:	43 lbs

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	motionindustries.com	02990387	444.11	1	In Stock		Marathon Electric		444.11 @ 1
	apexindustrialautomation.com	X526	458.31	1	43		Marathon		458.31 @ 1
	Galco	X526-MARA	470.37	1	In Stock		Marathon Electric		470.37 @ 1
	electricmotorwholesale.com	X526	490.0	1	In Stock		MARATHON		490.0 @ 1
	emotorpro.com	X526	508.68	1	In Stock		Marathon	45.0	508.68 @ 1
	midwestapplianceparts.com	X526-MT-P	518.35	1	In Stock		Marathon		518.35 @ 1
	us.rs-online.com	73430801	529.83	1	In Stock		Marathon Motors		529.83 @ 1
	Zoro	G806629556	542.3	1	In Stock		Marathon		542.3 @ 1
	Dreisilker	MA-RBC-X526	577.47	1	In Stock		Marathon		577.47 @ 1
	MRO Supply	2269426	763.89	1	In Stock		Marathon Electric		763.89 @ 1
	Guardian	MARSX526	950.39	1	In Stock		Marathon		950.39 @ 1
