Marathon Electric X532

B0042GINHU

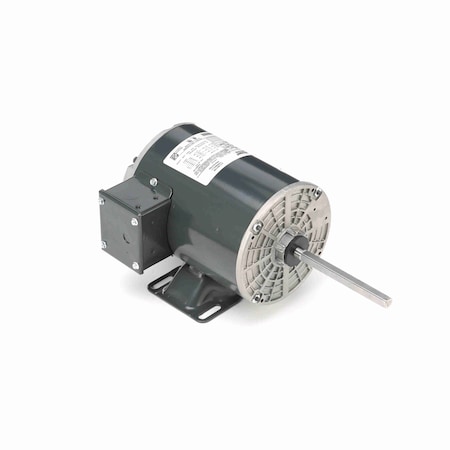

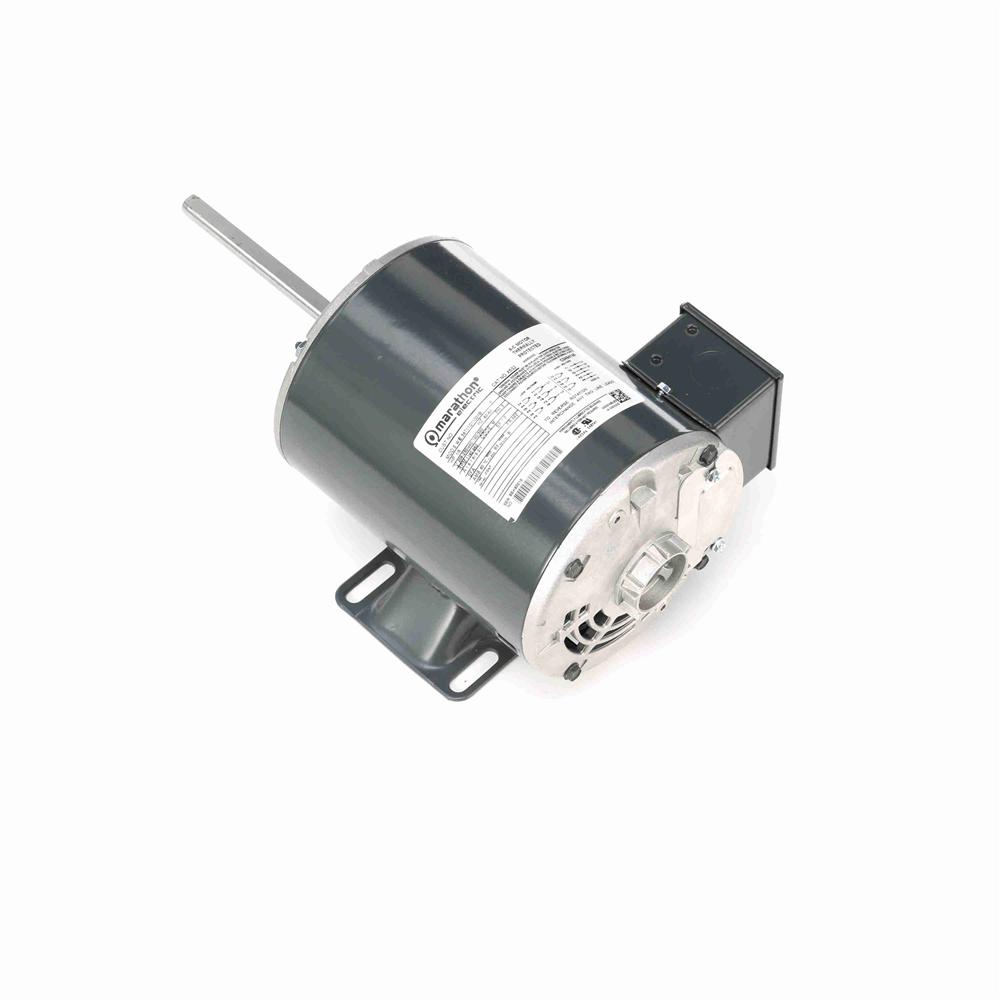

Marathon X532 56Z Frame 56T11O11001 Open Air Over Condenser Fan Motor, 3 Phase, 1/3 hp, 1140 RPM, 1 Speed, 208-230/460 VAC

Marathon X532 56Z Frame 56T11O11001 Open Air Over Condenser Fan Motor, 3 Phase, 1/3 hp, 1140 RPM, 1 Speed, 208-230/460 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T11O11001
Amps1.8-1.8/0.90, 1.8-1.8/0.
BearingsBall
BrandMarathon
C-Dimension13.37 (in.)
Catalog NumberX532
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X532
DutyContinuous
Duty CycleContinuous
Efficiency0.72
Electrical TypeSquirrel Cage Induction.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
enclosure type:OAO (Open Air-Over)
Frame56Z
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56Z
Frequency60/50
frequency rating:60 Hz
full load current:1.80
full load efficiency:72.00 %
Gross Weight0 lbs
HP1/3
Hz60
Insulation ClassB
IP Code10
KVA CodeM
Manufacturer Model #056T11O11001
Max Ambient60?C
Maximum Ambient Tempera.60? C
motor category:Condenser Fan Motor
Motor Diameter6-1/2"
motor horsepower:0.33 hp, 1/3 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length6.62"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.37"
Phase3
Product CategoryHVAC/R Motors > Conden.
Product TypeThree Phase
RotationReversible
RPM1140, 1100 - 1200
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight22 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage208-230/460
Volts208, 230, 460, 208-230/.
weight:22 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX532284.01In StockMARATHON284.0 @ 1
thumbzoomasapelectricmotors.comMARX532366.691In StockMARATHON366.69 @ 1
thumbzoommotionindustries.com04738290377.011In StockMarathon Electric377.01 @ 1
thumbzoomapexindustrialautomation.comX532399.36167Marathon399.36 @ 1
thumbzoomGalcoX532-MARA409.871In StockMarathon Electric409.87 @ 1
thumbzoomMRO Supply2269467424.721In StockMarathon Electric424.72 @ 1
us.rs-online.com72650000461.681In StockMarathon Motors461.68 @ 1
thumbzoomemotorpro.comX532489.191In StockMarathon22.0489.19 @ 1
thumbzoommidwestapplianceparts.comX532-MT-P498.491In StockMarathon498.49 @ 1
thumbzoomNational Supply NetworkB871655504.941In StockMARATHON MOTORS504.94 @ 1
thumbzoomDreisilkerMA-RBC-X532518.681In StockMarathon518.68 @ 1
industrialmotors.comX532562.21140MARATHON ELECTRIC562.2 @ 1
thumbzoomZoroG302061027587.021In Stock10Marathon587.02 @ 1
thumbzoomGuardianMARSX532634.861In StockMarathon634.86 @ 1
