- mpn143THEN8034
- brandname: Marathon Motors
- manufacturername: Marathon Motors

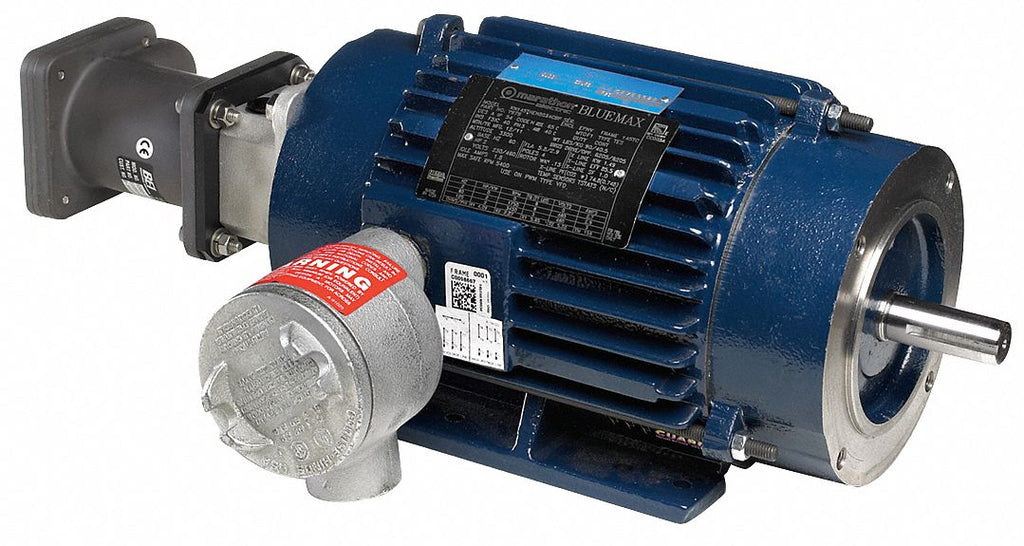

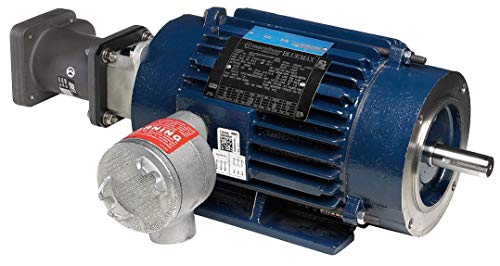

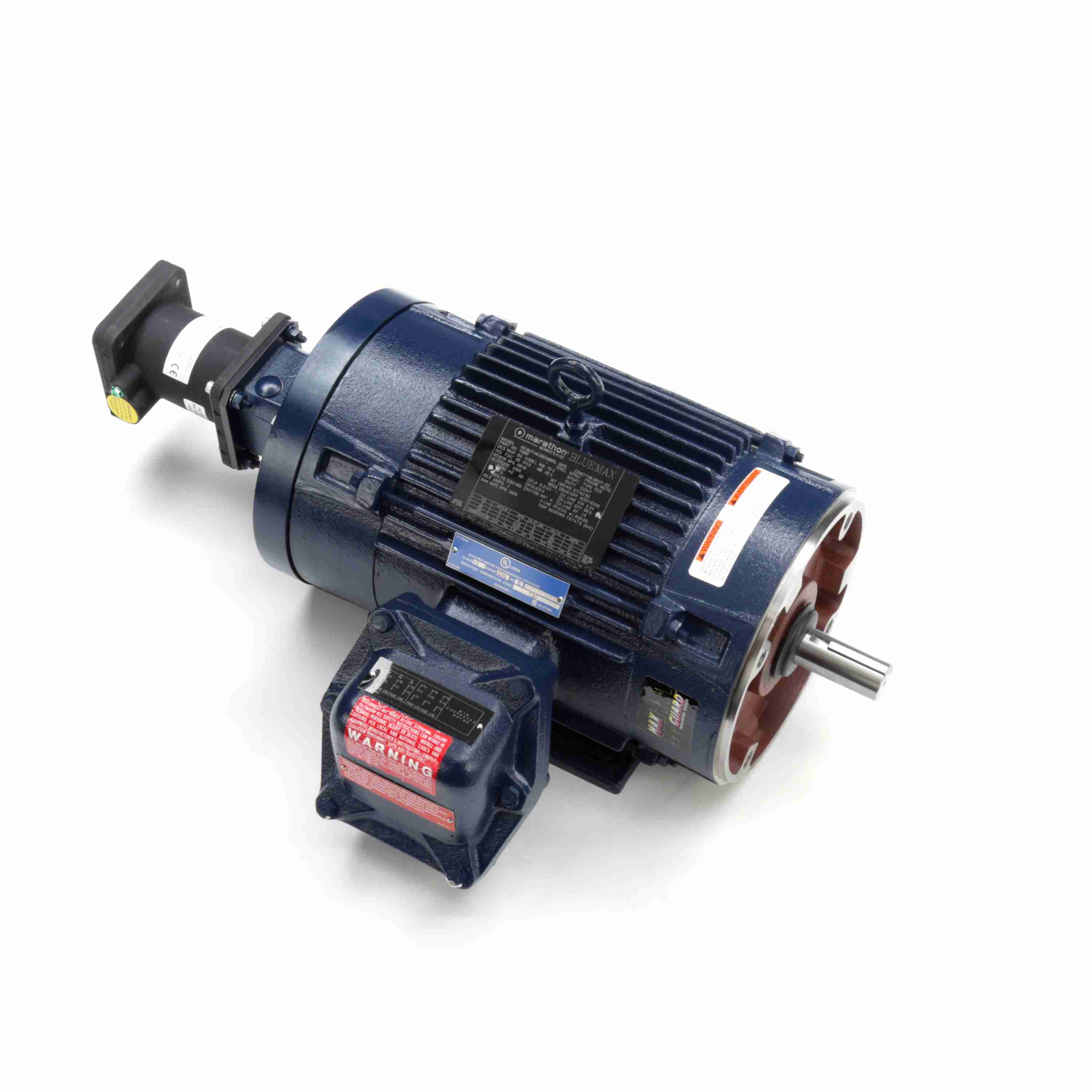

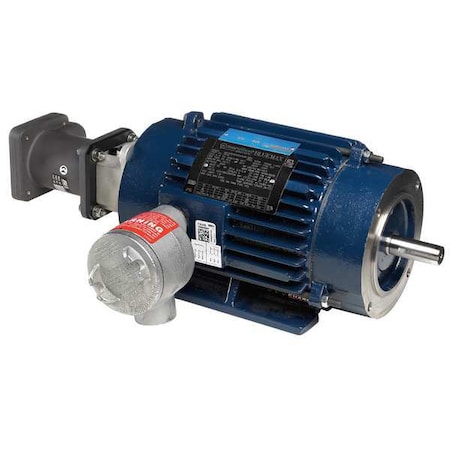

Marathon 143THEN8034 Inverter Blue Max 2000 Hazardous Duty Motor, 3 Phase, TENV XP Division 1, Class I and II, C-Face with Base, Ball Bearing, 1 hp, 1800 RPM, 1 Speed, 230/460 VAC, 143TC Frame
- Brand: Marathon Electric
- PartNumber: 143THEN8034
- Model: MY978
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Marathon Electric
- Label: Marathon Electric
Attributes
| Key | Value |
|---|
| Ambient Temperature | 40 Degrees C |
| Application | Application |
| Approval | Approval |
| CC Number | CC003A |
| Classification | Inverter Vector Duty: B. |
| Composition | Cast Iron |
| Constant Torque Speed R. | Constant Torque Speed R. |
| Efficiency | Efficiency |
| Efficiency % | 85.5 % |
| Enclosure | XPNV, Totally Enclosed . |
| Family Series | Marathon Electric Motors |
| Frame | 143TC |
| Frame Material | Frame Material |
| Frame Remarks | C-Face Rigid |
| Frequency Rating | Frequency Rating |
| Gross Weight | 0 lbs |
| Horsepower | 1 hp |
| HP | 1 |
| Ins. Class | F |
| Insulation Class | Insulation Class |
| Insulation Feature | Max Guard |
| Item | Vector Motor |
| Item Condition | Factory New |
| Item Number | 143THEN8034 |
| Kilowatts | 0.75 kW |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | Y978 |
| Max. Speed | 3,600 RPM |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor FLA | Motor FLA |
| Motor Service Factor | 1 |
| Motor Thermal Protection | T-Stat |
| Mounting Type | Footed |
| Nameplate RPM | 1,756 |
| NEMA Design | A |
| NEMA Frame | 143TC |
| Net Weight | 86 lbs |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Number of Speeds | Number of Speeds |
| Overall Length | 21 7/16 in |
| Phase | 3, Three |
| RPM | 1,756 RPM, 1800 |
| Service Factor | Service Factor, 1 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/8 in |
| Speed Range | 2,000:1 |
| Speeds | Speeds |
| Unspsc | Unspsc |
| Variable Torque Speed R. | Variable Torque Speed R. |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230/460 |
| Warranty | 3 yr |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B00J14XRJC | 3929.17 | 1 | In Stock | 2 | Marathon Electric | | 3929.17 @ 1 |
 | mecampbell.com | 143THEN8034 | 6239.92 | 1 | In Stock | 33 | Marathon Motors | | 6239.92 @ 1 |
 | Galco | 143THEN8034-MARA | 6403.88 | 1 | In Stock | | Marathon Electric | 86.0 | 6403.88 @ 1 |
 | Zoro | G5700003 | 6403.88 | 1 | In Stock | 26 | Marathon Motors | 86.0 | 6403.88 @ 1 |
 | Dealers Electric | 143THEN8034 | 6867.06 | 1 | 4 | | Marathon Electric | 86.0 | 6867.06 @ 1 |
 | sustainablesupply.com | C1513044 | 8568.2 | 1 | In Stock | | Marathon | 86.0 | 8568.2 @ 1 |
 | Raptor Supplies | AF8KVK | 10566.2537955 | 1 | In Stock | | MARATHON MOTORS | | 10566.2537955 @ 1 |
 | pumpproducts.com | 143THEN8034 | 11747.72 | 1 | In Stock | | Marathon | | 11747.72 @ 1 |
