- mpn184TTDW16310
- brandname: MARATHON MOTORS
- manufacturername: MARATHON MOTORS

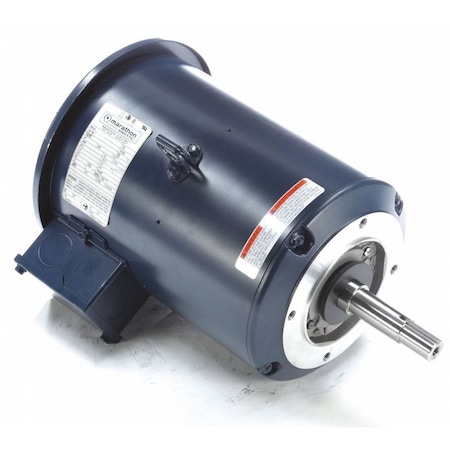

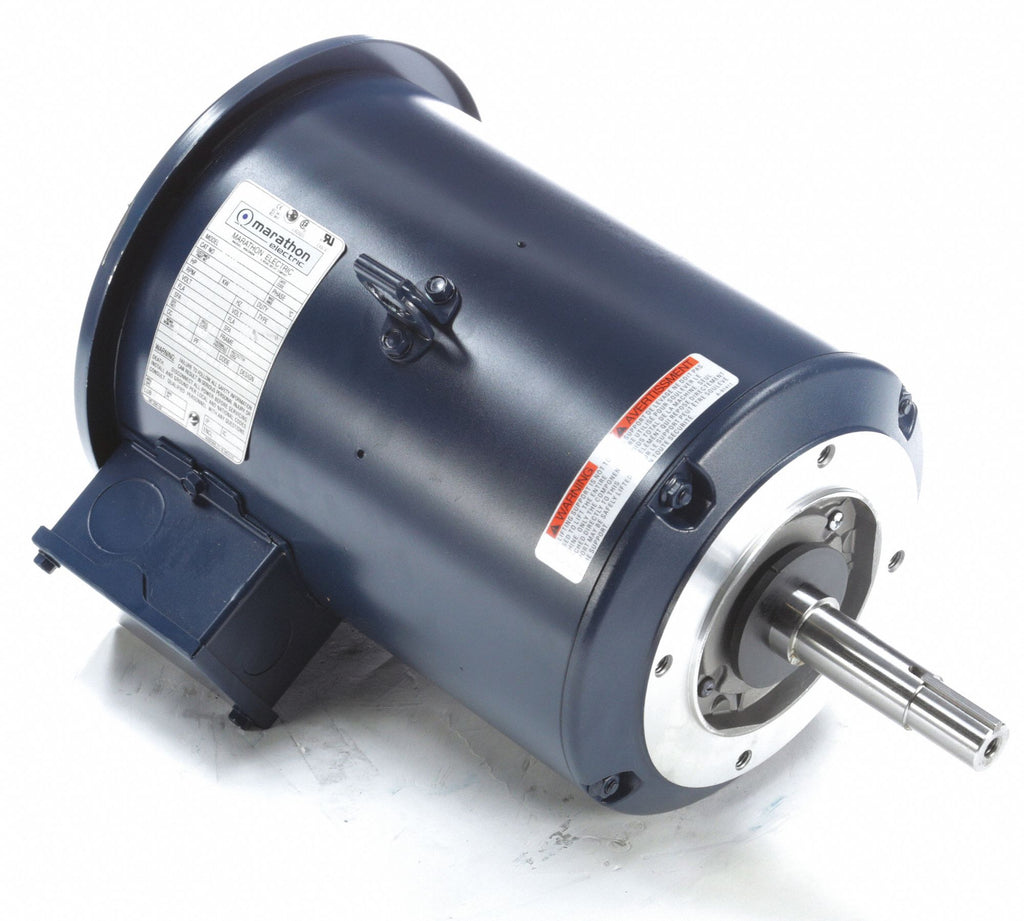

Marathon Motors 7-1/2 HP Close-Coupled Pump Motor,3-Phase,3490 Nameplate RPM,230/460 Voltage,184JMV
- Brand: CAI - MARATHON MOTORS
- PartNumber: 184TTDW16310
- PackageQuantity: 1
- Manufacturer: CAI - MARATHON MOTORS
- Label: CAI - MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Bolt Circle Dia. | 5 7/8 in |
| Category | Electric Motor |
| CC Number | CC003A |
| Composition | Rolled steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Country of Origin (subj. | Mexico |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency % | 88.5 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| Frame | 184JMV |
| Frame Material | Rolled steel |
| Frame Remarks | FOOTLESS |
| Full Load Amps | 17.8/8.9 |
| Green Certification or . | NEMA Premium(R) Rated |
| Gross Weight | 0 lbs |
| Height | 9 13/16 in |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7.50 |
| Hz | 60/50 |
| Ins. Class | F |
| Inverter Rated | No |
| Item | Close-Coupled Pump Motor |
| Item Condition | FACTORY NEW |
| Item Number | 184TTDW16310 |
| Kilowatts | 5.5 kW |
| Length Less Shaft | 12 7/8 in |
| Manufacturer | Marathon Electric |
| Manufacturer Part Number | E163B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Vertical Shaft Down |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| mounting | C-face (NO base) |
| Mounting Type | Round |
| Nameplate RPM | 3,490 |
| NEMA Design | A |
| NEMA Frame | 184JMV |
| Net Weight | 90 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 88.5 % |
| Nominal Voltage | 240 VAC, 277 VAC, 347 V. |
| Overall Length | 17 1/8 in |
| Phase | 3, Three |
| RPM | 3600, 3,490 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 4 1/4 in |
| Standards | CE Mark, CSA Certified,. |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 230/460V AC |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 230/460 |
| Weight | 90 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7410070 | 1007.0 | 1 | In Stock | 25 | Marathon Motors | 90.0 | 1007.0 @ 1 |
 | Galco | 184TTDW16310-MARA | 1060.0 | 1 | In Stock | | Marathon Electric | 90.0 | 1060.0 @ 1 |
 | Dealers Electric | 184TTDW16310 | 1253.55 | 1 | 4 | | Marathon Electric | 90.0 | 1253.55 @ 1 |
 | pumpproducts.com | 184TTDW16310 | 1607.1 | 1 | In Stock | | Marathon | | 1607.1 @ 1 |
 | sustainablesupply.com | C2792093 | 1716.41 | 1 | In Stock | | Marathon | 90.0 | 1716.41 @ 1 |
