MICROCHIP TECHNOLOGY MIC5239-3.3YMM

B07323JJND

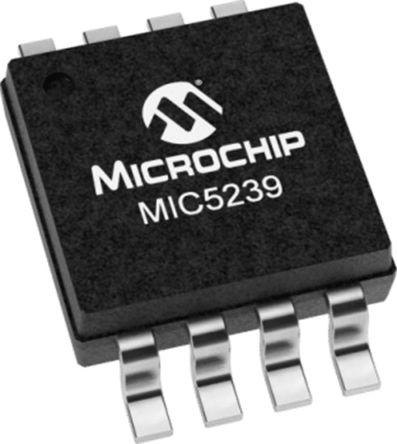

Microchip Technology MIC5239-3.3YMM MIC5239 Series 3.3 V Fixed Output 500 mA Surface Mount LDO Regulator - MSOP-8-5 Item(s)

Microchip Technology MIC5239-3.3YMM MIC5239 Series 3.3 V Fixed Output 500 mA Surface Mount LDO Regulator - MSOP-8-5 Item(s)zoom

Attributes

Key Value
Accuracy?2%
BrandMicrochip
CaseMSOP8
Control FeaturesEnable
Current - Output500mA
Current - Quiescent (Iq)45 ?A
Current - Supply (Max)15 mA
DimensionsDimensions
Dropout Voltage at Maxi.350 mV @ 500 mA
EnableYes
HeightHeight
Input voltage2.5...30V
Kind of packagetube
Kind of voltage regulat.fixed,
Length3mm
Line Regulation0.5 %
Load Regulation30 mV
ManufacturerMicrochip Technology
Manufacturer seriesMIC5239
Maximum Input VoltageMaximum Input Voltage
Maximum Operating Tempe.+125 ?C
Maximum Output CurrentMaximum Output Current
MfrMicrochip Technology
Minimum Input Voltage2.3 V
Minimum Operating Tempe.-40 ?C
MountingSMD
Mounting TypeSurface Mount
Number of channels1
Number of Outputs1
Number of Regulators1
Operating Temperature-40?C ~ 125?C
Operating temperature-40...125?C
Output ConfigurationPositive
Output current0.5A
Output TypeFixed, Output Type
Output voltage3.3V
Output VoltageOutput Voltage
Package / Case8-TSSOP, 8-MSOP (0.118".
Package TypeMSOP
Part StatusActive
Pin CountPin Count
Protection FeaturesOver Current, Over Temp.
PSRR-
Quiescent Current23?A
Quiescent current23?A
Series-
StockStock
Supplier Device Package8-MSOP
Tolerance?2%
Type of integrated circ.voltage regulator
Voltage - Input (Max)30V
Voltage - Output (Max)-
Voltage - Output (Min/F.3.3V
Voltage drop0.4V
Voltage Dropout (Max)0.35V @ 500mA (Typ)
Width3mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers177-05751.4544525Microchip1.4544 @ 25
thumbzoomNewark10AC82313.111135MICROCHIP3.11 @ 25
thumbzoomTMEMIC5239-3.3YMM56.7125MICROCHIP TECHNOLOGY56.7 @ 25
