NTN 6203LLUC3/L627

B007IBWDHC

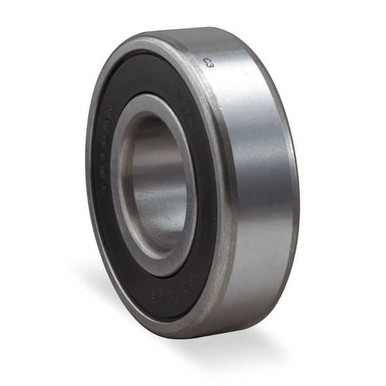

Radial Bearing, Double Seal, 17Mm Bore

Radial Bearing, Double Seal, 17Mm Borezoom

Attributes

Key Value
ABEC Rating1
ABEC Tolerance1
Ball MaterialAlloy Steel
Bearing Industry Number6203
Bearing TypeDouble Contact Sealed
Bore Dia.17 mm
Bore Diameter17 mm
Bore Diameter Tolerance+0/-0.008 mm
Bore Tolerance+0/-0.008mm
BrandNtn
Cage MaterialSteel
Cage TypePressed
ClosureDouble Sealed
Current Stock397
Dynamic Radial Load Cap.10,600 N
Fillet Radius0.6 mm
FinishChrome Plated
Includes Retaining RingNo
Industry Number3VX630
International ShippingNo
ISO RatingClass 0
ItemRadial Ball Bearing
Lead TimeExpected to ship in 1-2.
Load DirectionRadial
Lubricant MaterialPolyrex EM Grease
LubricationPolyrex EM Grease
Max. RPM12,000 RPM
Maximum Speed12,000 RPM
Maximum Temperature120 Degrees C
Minimum Temperature-40 Degrees C
Mpn6203LLUC3/L627
Number of RowsOne
Outer Ring Width12 mm
Outside Dia.40 mm
Outside Dia. Tolerance+0/-0.011mm
Outside Diameter40 mm
Outside Diameter Tolera.+0/-0.011 mm
Retaining Ring DiameterNot Applicable
Retaining Ring GrooveNo
Retaining Ring ThicknessNot Applicable
Ring MaterialAlloy Steel
Seal MaterialNitrile Rubber
Seal TypeContact
Seal/Shield TypeDouble Contact Sealed
Single Row/Double RowSingle Row
SKUZO-G3507953
Static Load Capacity1,030 lb
Static Radial Load Capa.4,600 N
SubCategoryPower Transmission
System of MeasurementMetric
Temp. Range-13 Degrees to 250 Deg.
Width12 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG4ZXE99.36289741In StockNTN0.159.3628974 @ 1
thumbzoomsustainablesupply.comC169055910.721In StockNTN0.1510.72 @ 1
thumbzoomZoroG350795311.691349Ntn0.1511.69 @ 1
thumbzoomMisumi USA6203LLUC3/L62715.971In Stock18NTN15.97 @ 1
thumbzoomRaptor SuppliesAE2YAR18.11224351In StockNTN18.1122435 @ 1
thumbzoomsimsupply.comZO-G350795320.521397Ntn20.52 @ 1
