Omron MJN3CF-DC12

B00UDRA4C4

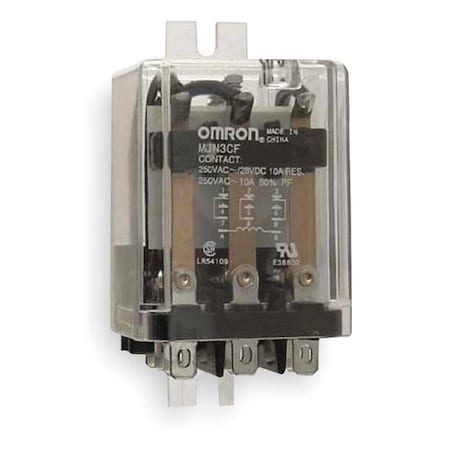

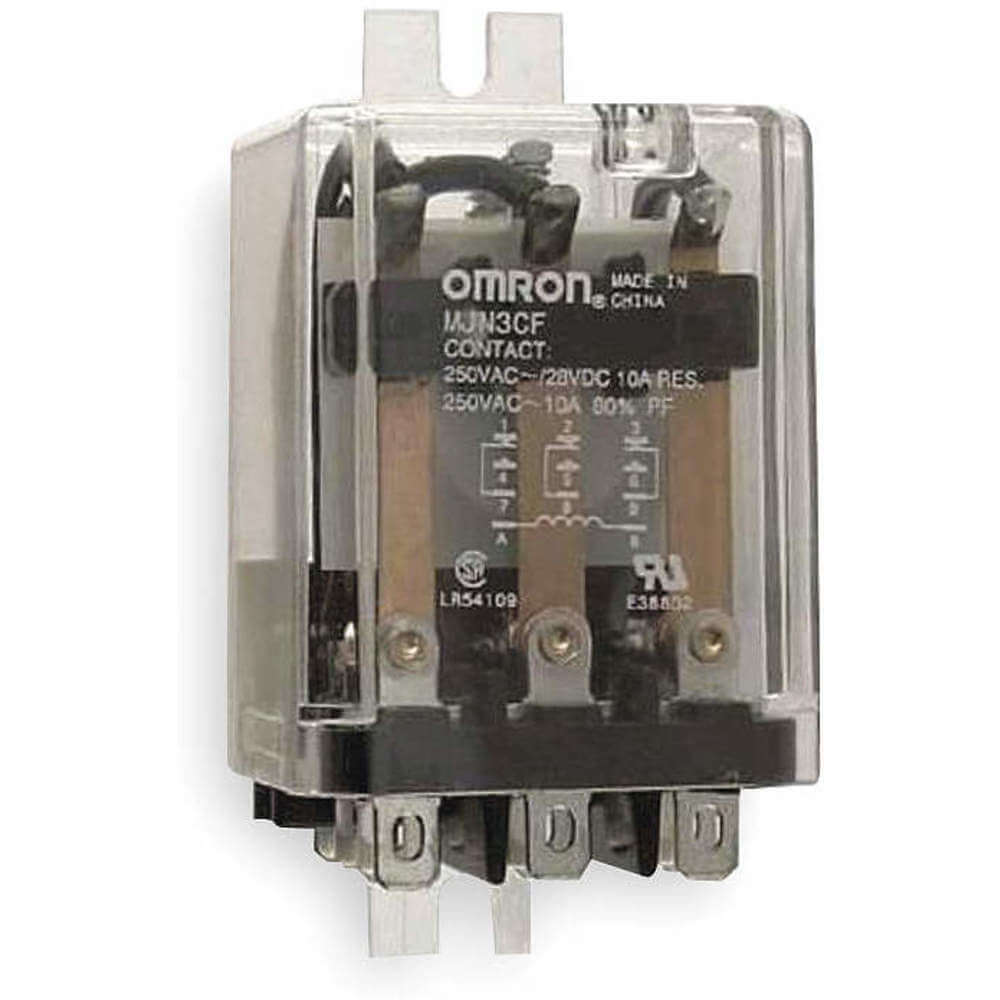

Omron MJN3CF-DC12 (1 pc) G.P. RELAY

Omron MJN3CF-DC12 (1 pc) G.P. RELAYzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 240V
Alternate Mfr Part Numb.MJN3CFDC12
Base Product NumberMJN3C
Body Depth1.4 in
Body Depth - Relay1.4 in
Body Height1.9 in
Body Height - Relay1.9 in
Body Width1.52 in
Body Width - Relay1.53 in
CategoryRelays
Coil Current100 mA
Coil Insulation-
Coil Resistance120 Ohms
Coil TypeNon Latching
Coil Voltage12 VDC, 12VDC
Coil Volts12V DC
Contact Current Rating10 A
Contact Form3PDT (3 Form C), 3PDT
Contact Form - Relay3PDT
Contact Material3?16in. Dia. Ag-Alloy, .
Contact Rating (Current)10 A
Contact Voltage Rating300 VAC
Control Voltage12
Current Rating10 A
DC Contact Rating - Rel.10A @ 28V
DescriptionRELAY GEN PURPOSE 3PDT .
Detailed DescriptionGeneral Purpose Relay 3.
Dielectric Rating750 VAC
Digi-Key Part NumberZ241-ND
Dimensions1.525 L x 1.400 W x 1.9.
Electrical ConnectionQuick-Connect Terminal
Features-, General Purpose Rela.
FunctionGeneral Purpose
HP @ 240V1/2 hp
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.MJN3CF-DC12
Manufacturer Standard L.27 Weeks
Maximum Operating Tempe.70 ?C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-45 ?C
MountingSide
Mounting - RelaySide Flange
Mounting TypePanel Mount, Chassis Mo.
Must Operate Voltage9 VDC
Must Release Voltage-
Number of Pins - Relay11
Operate Time20 ms
Operating Temperature-45?C ~ 70?C
Overall Depth2.9 in
Overall Height - Relay2.9 in
PackageBulk
Power Consumption - Rel.1.2 W
Power Rating2400 VA ; 280 W
Primary TypePower Relays
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time10 ms
Seal Rating-
SeriesMJN, MJN Series
StandardsCSA Certified, UL Liste.
Status IndicatorNone
Switching Voltage600VAC, 28VDC - Max
TerminationQC Tabs
Termination StyleQuick Connect - 0.187" .
Voltage Rating240 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comMJN3CFDC1215.2123Omron15.21 @ 2
VericalMJN3CF-DC1216.3323Omron16.33 @ 2
thumbzoomZoroG031859518.991In StockOmron0.4518.99 @ 1
WaldomOMRON INDUSTRIAL PRODUCTS MJN3CFDC1221.3833OMRON INDUSTRIAL PRODUCTS21.38 @ 3
Mouser653-MJN3CF-DC1222.13114Omron22.13 @ 1
Newark40AJ042725.6433OMRON ELECTRONIC COMPONENTS25.64 @ 3
thumbzoomDigi-Key35525928.3812Omron Automation and Safety28.38 @ 1
thumbzoomsustainablesupply.comC116869428.381In StockOmron0.4528.38 @ 1
us.rs-online.com7017890329.56174Omron Automation29.56 @ 1
Airline HydraulicsOMRON MJN3CF-DC1236.051In StockOmron36.05 @ 1
thumbzoomRaptor SuppliesAB4HXG43.16323051In StockOMRON43.1632305 @ 1
Master ElectronicsMJN3CFDC1264.551In StockOMRON INDUSTRIAL64.55 @ 1
