MC74ACT20DR2G

mpnMC74ACT20DR2G
brandname: ON Semiconductor
manufacturername: ON Semiconductor

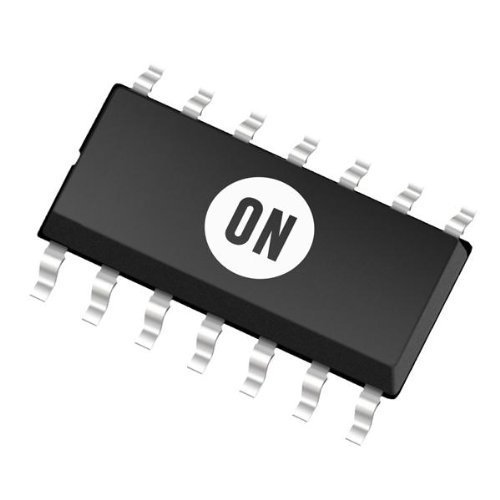

Logic Gates 5V Dual 4-Input NAND

Logic Gates 5V Dual 4-Input NAND

zoom

PartNumber: MC74ACT20DR2G
Size: 1 Piece
PackageQuantity: 1
Manufacturer: ON Semiconductor
Label: ON Semiconductor

Attributes

Key	Value
Alternate Part No.	863-MC74ACT20DR2G
Base Product Number	MC74ACT20
Brand	ON Semiconductor
Category	Integrated Circuits (IC.
Current - Output High, .	24mA, 24mA
Current - Quiescent (Ma.	4 ?A
Features	-
High Level Output Curre.	- 24 mA
Logic Family	74ACT
Logic Level - High	2V
Logic Level - Low	0.8V
Logic Type	NAND Gate
Low Level Output Current	24 mA
Manufacturer	ON Semiconductor
Manufacturer Part No.	MC74ACT20DR2G
Max Propagation Delay @.	9ns @ 5V, 50pF
Maximum Operating Tempe.	+ 85 C
Mfr	onsemi
Minimum Operating Tempe.	- 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Circuits	2
Number of Gates	2 Gate
Number of Input Lines	4
Number of Inputs	4
Number of Lines In/Out	4 / 1
Number of Output Lines	1
Operating Temperature	-40?C ~ 85?C
Package	Tape & Reel (TR)
Package / Case	14-SOIC (0.154", 3.90mm.
Package/Case	SOIC-14
Packaging	Reel
Product	NAND
Product Category	Logic Gates
Product Status	Active
Propagation Delay Time	9 ns
Series	MC74ACT20, 74ACT
Supplier Device Package	14-SOIC
Supply Voltage - Max	5.5 V
Supply Voltage - Min	4.5 V
Voltage - Supply	4.5V ~ 5.5V
