- mpnLCBX6-14-L
- brandname: Panduit Corp
- manufacturername: Panduit Corp

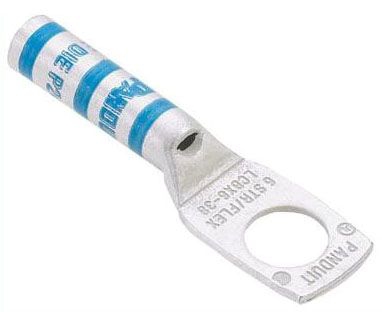

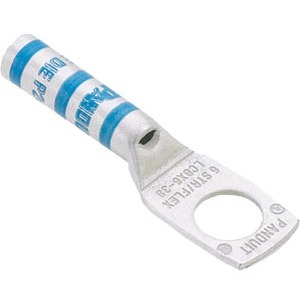

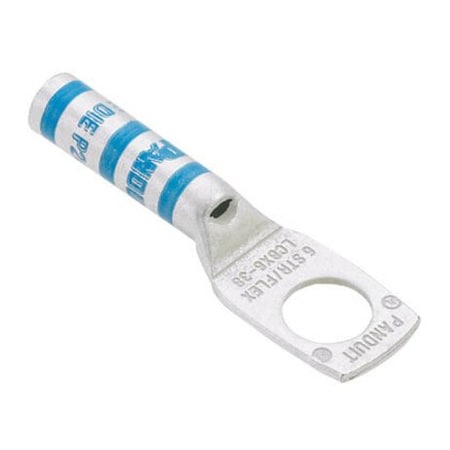

Panduit LCBX6-14-L Flex Conductor Lug, One Hole, Long Barrel With Window, #6 AWG Class G/H/I/K/M Conductor Size, #6 AWG Diesel Locomotive Conductor Size, #6 AWG Code Conductor Size, 1/4" Stud Hole Size, Blue Color Code, 1-1/8" Wire Strip Length, 0.08" Tongue Thickness, 0.48" Tongue Width, 1.07" Neck Length, 1.86" Overall Length
- Brand: Panduit
- PartNumber: LCBX6-14-L
- Model: LCBX6-14-L
- Color: Blue
- Size: 1/4
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 6 |
| amperage rating | Panduit?? |
| Application | Stainless Steel Cable T. |
| Approvals | CSA, UL |
| Base Product Number | LCBX |
| Brand | Panduit Corporation |
| Brand Name | Panduit |
| Cable Size | 6 AWG |
| Carton | 1 |
| Category | Connectors, Interconnec. |
| Category Description | Comp & Mech Lugs and Bu. |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Blue, SE |
| Color Code | Blue |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 6 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.220" (5.59mm) |
| Diameter - Barrel OD | 0.310" (7.87mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Digi-Key Part Number | 298-14795-ND |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| extra long description | PAN LCBX6-14-L Pan-Lug. |
| Family Series | Panduit Terminals, Pan-. |
| Features | Corrosion Resistant, An. |
| gang | Southwire Company, LLC |
| Gross Weight | 1.29 lbs |
| GTIN | 00074983423514 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCBX6-14-L |
| Length | 3.8, 1.86" |
| Length - Overall | 1.860" (47.24mm) |
| Long Description | One-hole, flex lug, lon. |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCBX6-14-L |
| Manufacturer Product Nu. | LCBX6-14-L |
| Manufacturer Standard L. | 2 Weeks |
| Manufacturer Website Ad. | http://www.panduit.com |
| Manufacturers Part Numb. | LCBX6-14-L |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 6 AWG |
| media | Yes |
| Mfr | Panduit Corp |
| Min Conductor Range | 6 AWG |
| Mounting | 1,125, 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk, 50 |
| Packaged Quantity | 50 |
| Product Name | Terminal Connector |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Pan-Lug LCBX6-14-L Cop. |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | #6 AWG Class B, C, G, H. |
| Special Features | Consult cable manufactu. |
| standard | UL listed to 486A-486B . |
| Stud Size | 42.826, 1/4 in |
| Stud/Tab Size | 1/4 Stud |
| sub brand | Panduit?? |
| Tab Thickness | 0.080" (2.03mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Type | Tin-Plated Copper Compr. |
| UNSPSC | 39121405 - Cable or wir. |
| UPC | 074983423514 |
| Weight per each | 1.29 |
| Width | 0.48" |
| Width - Outer Edges | 0.480" (12.19mm) |
| Wire Gauge | 6 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Elliott Electric | LCBX614L | 1.5253 | 1 | 10 | | Panduit | 1.29 | 1.5253 @ 10 |
 | cbtcompany.com | LCBX6-14-L | 1.63 | 1 | 10 | | PANDUIT | | 1.63 @ 10 |
 | Digi-Key | 4565244 | 2.863 | 1 | 29 | | Panduit Corp | | 2.863 @ 10 |
 | alldataresource.com | LCBX6-14-L | 2.89 | 1 | 10 | | Panduit | | 2.89 @ 10 |
| Onlinecomponents.com | LCBX6-14-L | 2.99 | 1 | In Stock | | PANDUIT | | 2.99 @ 10 |
| Newark | 27AC7255 | 3.14 | 1 | 10 | | PANDUIT | | 3.14 @ 10 |
 | Zoro | G0774818 | 3.31 | 3 | 10 | 58 | Panduit | 1.29 | 3.31 @ 10 |
 | Platt.com | 0688709 | 3.87 | 1 | 10 | | Panduit | | 3.87 @ 10 |
 | Galco | LCBX6-14-L-PNDT | 3.94 | 50 | 10 | | Panduit | 1.29 | 3.94 @ 50 |
| Airline Hydraulics | PANDUIT LCBX6-14-L | 4.37 | 1 | 10 | | Panduit Corp | | 4.37 @ 10 |
 | ipcstore.com | 58_LCBX6-14-L_1 | 5.0 | 1 | 10 | | Panduit | | 5.0 @ 10 |
 | PCNation | 6WU289 | 117.55 | 1 | 10 | | PANDUIT | 2.0 | 117.55 @ 10 |
| CDW | 5470525 | 183.99 | 1 | 10 | | Panduit | | 183.99 @ 10 |
 | gordonelectricsupply.com | LCBX6-14-L | 192.0 | 1 | 10 | 12 | PANDUIT | | 192.0 @ 10 |
 | turtle.com | PAN LCBX6-14-L | 427.58 | 1 | 10 | | Panduit | | 427.58 @ 10 |
| steinerelectric.com | 431190 | 427.92 | 1 | 10 | | Panduit | | 427.92 @ 10 |
