FirstPower 4FRD4

mpn4FRD4
brandname: Power First
manufacturername: Power First

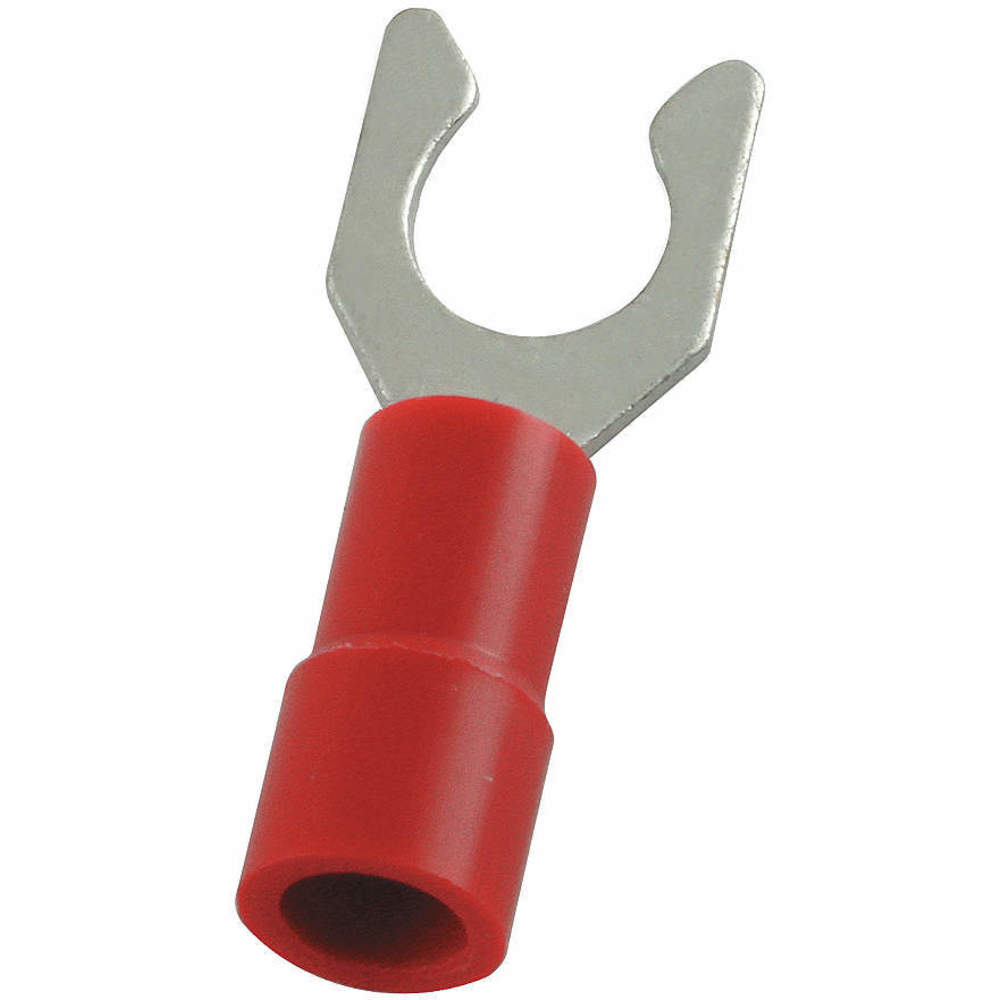

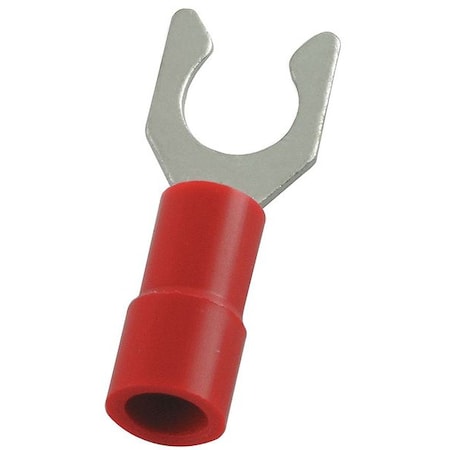

22-16 AWG Vinyl Locking Fork Terminal #10 Stud PK100

22-16 AWG Vinyl Locking Fork Terminal #10 Stud PK100

zoom

Brand: FirstPower
PartNumber: 4FRD4
Model: 4FRD4
Manufacturer: POWER FIRST
Label: POWER FIRST

Attributes

Key	Value
Barrel Length	0.433 in
Barrel Style	Easy Entry
Compatible with Product.	Insulated Stranded Copp.
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
For Wire Size	16 AWG, 18 AWG, 20 AWG,.
Insulation Color	Red
Insulation Colour	Red
Insulation Coverage	Partial Coverage
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Fork Terminal
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600V
Maximum Wire Size	16 AWG
Minimum Wire Size	22 AWG
Overall Length	0.866 in
RoHS Compliant	Yes
Seam	Butted
Seam Style	Butted
Special Features	Easy Entry
Standards	UL/cUL Listed E96029, U.
Strip Length	1/4 in
Stud Size	#10
Terminal Connection	Crimp
Terminal Shape	Locking Fork
Terminal Type	Locking
Termination Style	Crimp
Tongue Length	0.00 - 0.50 inches, 0.4.
Tongue Thickness	0.03 in
Tongue Width	0.319 in
Tongue Width - Wire Con.	0.32 in
UL 94 Flammability Rati.	V-0
Wire Range	22 to 16 AWG
Wire Size Range	22 AWG - 16 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRD4	13.19515308	1	100		POWER FIRST	0.16	13.19515308 @ 100
	Zoro	G2834702	15.65	1	100		Power First	0.16	15.65 @ 100
	sustainablesupply.com	C1199500	33.73	1	100		Power First	0.16	33.73 @ 100
	Grainger	4FRD4	35.25	1	100	8	POWER FIRST		35.25 @ 100
	Raptor Supplies	AD7NYM	46.526454	1	100		POWER FIRST		46.526454 @ 100
