- mpnAL53PD SAT 626
- brandname: Schlage
- manufacturername: Schlage

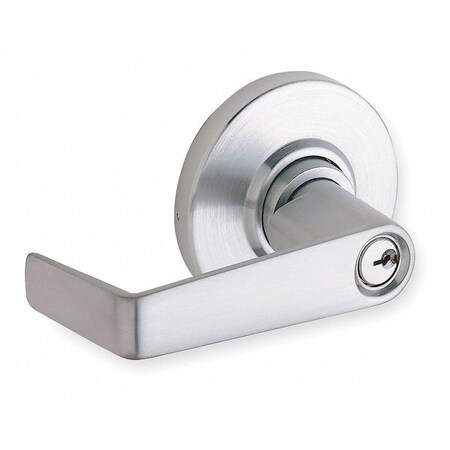

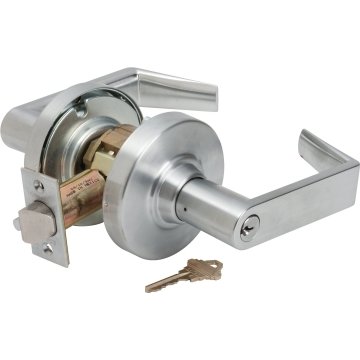

Schlage AL53PD SAT 626 Al Series Entrance Lock Sat 626, Satin Chrome Plated
- Brand: Schlage Lock Company
- PartNumber: AL53PD SAT 626
- Model: AL53PD SAT 626
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: INGERSOLL RAND SECURITY TECHNOLOGY
- Label: INGERSOLL RAND SECURITY TECHNOLOGY
Attributes
| Key | Value |
|---|
| ADA Approved | True |
| ADA Compliant | No |
| Aluminium Bottle Conten. | Swinging |
| ANSI Function | F109 - Entry/Office |
| BAA Qualified | Yes |
| Backset | 2-3/4", 2 3/4 in, 2-3/4. |
| Backset Size | 2.75 in. |
| Base Material | Brass or Bronze |
| Bore Size | 2.1250 |
| Box Height | 4.7500 |
| Box Length | 9.5000 |
| Box Width | 8.0000 |
| Brand | Schlage |
| Case Height | 10" |
| Case Length | 16.375" |
| Case Volume | 2394.84375 |
| Case Width | 14.625" |
| Color Code | 626/US26D |
| Commercial/Residential | Commercial |
| Country of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Cylinder Core Type | Not Included |
| Cylinder Type | P-6 Pin Conventional (K. |
| Design | Saturn |
| Door Handing | Universal/Reversible |
| Door Range | 1 3/8 to 1 7/8 |
| Door Thickness | 1.75 in., 1 3/8" - 1 7/. |
| Electrical/Mechanical | Mechanical |
| Features | 3 yr Limited Warranty, . |
| Finish | Satin Chrome |
| Finish Description | Satin Chrome |
| Fire Rated | 3 hr. |
| For Use With | Wood, Steel Doors |
| Function | 53-Entrance |
| Grade | ANSI/BHMA Grade 2, 2 |
| Hand | Not Handed |
| Handle Material | Heavy Gauge Steel, Zinc |
| Handle Type | Lever |
| Height | 4.700 |
| Includes | Hardware |
| Item | Lever |
| Key Material | Brass/Nickel Silver, Ni. |
| Key Type | Different |
| Key(s) | Cut |
| Keyblank Grouping | SCHL-C-6-1 |
| Keying | Keyed Different |
| Keying Charges | CCAM |
| Keyway | Schlage C |
| Keyway Type | Schlage SC4 |
| Latch Backset Dim | 2-3/4" |
| Latch Number | 11-096 |
| Latch Type | Dead Latch (Guarded) |
| Length | 9.500 |
| Lever Length | 4.2500 |
| Lever Style | SAT-Saturn |
| Lever/Knob Design | SAT - Saturn |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Lockset Finish | Satin Chrome |
| Lockset Fire Rating | 3 hr., 3 hr |
| Lockset Function | Entrance |
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Lockset Performance Str. | Medium Duty |
| Mortise / Cylindrical | Cylindrical |
| Mortise/Cylindrical | Cylindrical |
| Number of Keys | 2 |
| Number of Pins | 6 |
| Number Of Pins | 5 & 6 |
| Origin | Mexico |
| Package Height | 4.75" |
| Package Length | 9.5" |
| Package Qty | 1 |
| Package Quantity | 1 |
| Package Volume | 372.28125 |
| Package Width | 8.25" |
| Product Height | 8.13 in. |
| Product Material | Zinc; wrought brass or . |
| Product Type | Cylindrical Lock |
| ProductType | Manual |
| Projection | 2.5000 |
| Required Door Thickness | 1-3/4", 1-3/4 in, 1-3/8. |
| Rose/Escutcheon Design | 3-7/16 In. Diameter |
| Rose/Escutcheon Trim | Round Rose |
| Screws | Combination |
| Security/ANSI Grade | Grade 2 |
| Series | AL |
| Size Measure | IN |
| Special Marks | Conventional cylinder |
| Standards | ANSI 156.2, Series 4000 |
| Strike | ANSI, 1-1/4" x 4-7/8", . |
| Strike Dim. | 1-1/4 in x 4-7/8 in, 1-. |
| Strike Height | 4-7/8" |
| Strike Name | ANSI 1-1/4 x 4-7/8 |
| Strike Number | 10-025 |
| Strike Type | ASA, ASA Strike |
| Strike Width | 1-1/4" |
| Style | Lever, AL Angled, AL Sa. |
| Thickness | 1-3/8 In. - 1-7/8 In. |
| UNSPSC | 46171503 |
| UPC | 840067688373 |
| UPC Code | 840067688373 |
| Visual Indicator Message | No Message |
| Warranty | 1 Year From Date of Pur. |
| Weight | 4.100 |
| Weight Measure | LB |
| Width | 8.100 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Home Depot | 100081386 | 122.0 | 1 | In Stock | | Schlage | | 122.0 @ 1 |
 | Zoro | G3086413 | 135.59 | 1 | In Stock | | Schlage | | 135.59 @ 1 |
| absupply.net | SCHLAGE AL53PD SAT 626 | 204.93 | 1 | In Stock | | Schlage | | 204.93 @ 1 |
 | HD Supply | 913252 | 253.79 | 1 | In Stock | | Schlage | 4.1 | 253.79 @ 1 |
 | DK Hardware | AL53PD SAT 626 | 268.62 | 1 | In Stock | | Schlage Commercial | | 268.62 @ 1 |
| grainger.ca | WWG28XV45 | 342.1381675 | 1 | In Stock | | SCHLAGE | 3.8 | 342.1381675 @ 1 |
