Schneider Electric LU2MB0B

B00CONP47U

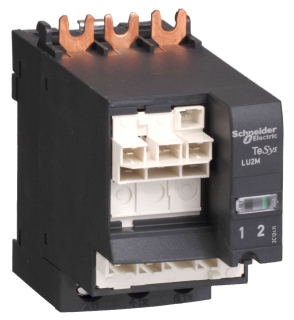

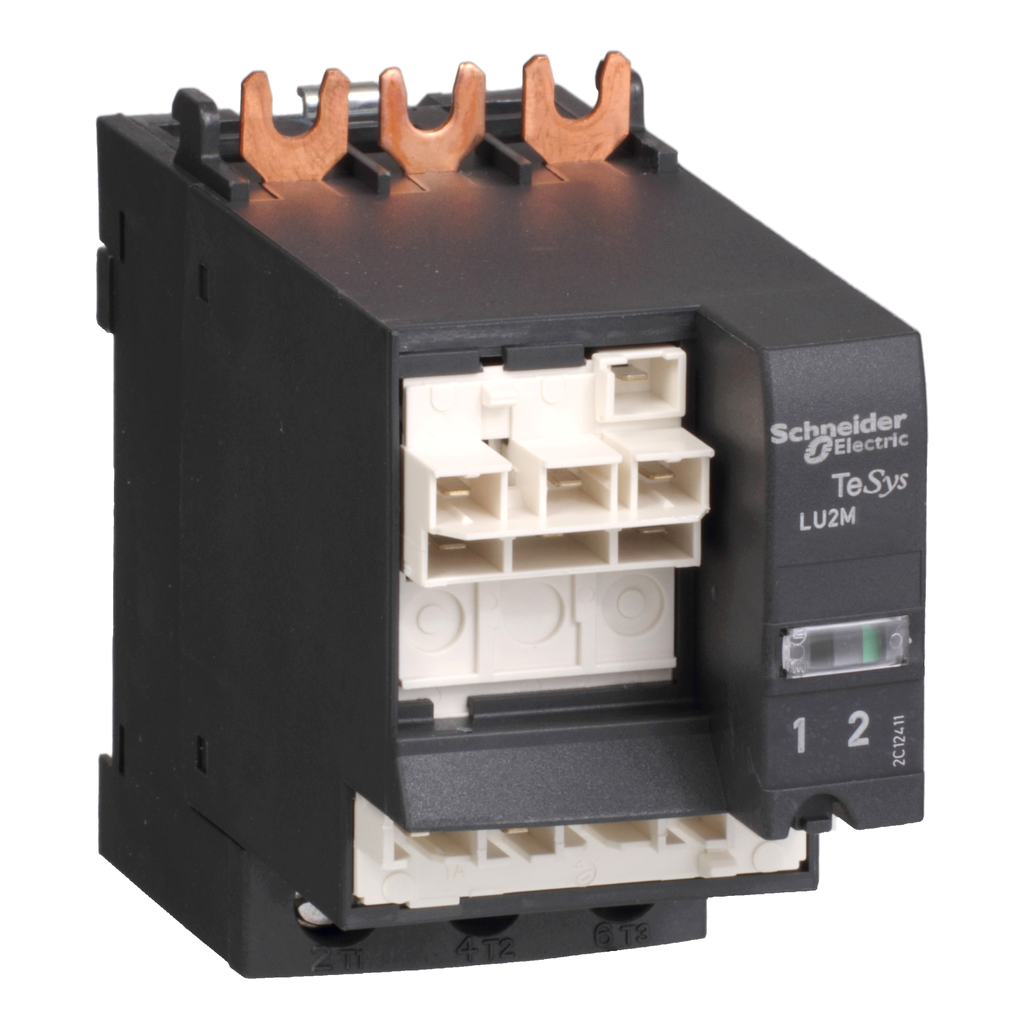

SCHNEIDER ELECTRIC Rev.Blk. Direct MNT. W/O Terms. 24-Volt Ac LU2MB0B Contactor 600V 400Amp Iec

SCHNEIDER ELECTRIC Rev.Blk. Direct MNT. W/O Terms. 24-Volt Ac LU2MB0B Contactor 600V 400Amp Ieczoom

Attributes

Key Value
[Ie] Rated Operational .32 A
[Uc] Control Circuit Vo.24 V AC 50/60 Hz
[Ue] Rated Operational .690 V AC power circuit
[Ui] Rated Insulation V.690 V IEC 60947-6-2 || .
[Uimp] Rated Impulse Wi.6 kVIEC 60947-6-2
Ambient Air Temperature.-25-60 ?C with LUCM || .
Ambient Air Temperature.-40-85 ?C
Applicationmotor control
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLU2MB0B
China Rohs RegulationProduct out of China Ro.
Coil Voltage24 V AC 50/60 Hz
Compatibility CodeLU2MB
ConnectionControl circuit screw c.
Connections - Terminalscontrol circuit screw c.
Country of OriginFrance
Current Consumption2360 mA 24 V AC I maxim.
Current Rating2360 mA 24 V AC I maxim.
Depth105 mm
Device Applicationmotor control
Device Mountingdirect mounting
Device Short NameLU2MB
Eu Rohs DirectiveCompliant
Family NameTeSys Family
Fire Resistance960 ?C parts supporting.
Fixing Modeplug-in
Height80 mm
Immunity To Radioelectr.10 V IEC 61000-4-6
Inrush Restraint Durati.25 ms AC || 15 ms DC
Ip Degree Of ProtectionIP20 IEC 60947-1 front .
Item Typereverser block
Made in USANo
ManufacturerSchneider Electric
Mercury FreeYes
Mountingdirect mounting
Net Weight0.4 kg
Network Frequency40...60 Hz
Non-Dissipating Shock W.1 kV serial mode IEC 60.
Operating Altitude6561.68 ft (2000 m)
Operating Time150 ms with change of d.
Power Supply24 VAC
Product CertificationsCE || UL || CSA || CCC .
Product Or Component Ty.reverser block
Protective TreatmentTH IEC 60068
RangeTeSys
Reach RegulationReference contains Subs.
Resistance To Electrost.8 kV level 3, in open a.
Resistance To Fast Tran.2 kV 3 serial link IEC .
Resistance To Radiated .10 V/m level 3 IEC 6100.
Rohs Exemption Informat.Yes
SeriesTeSys U Series
Shock Resistance10 gn power poles open .
Special FeaturesIP20 FRONT PANEL AND WI.
StandardCE;UL;CSA;CCC;EAC;ASEFA.
StandardsEN 60947-6-2 || IEC 609.
Sub BrandTeSys;LU2MB
Tightening Torquecontrol circuit 0.8-1.2.
UPC785901202684
UPC Code785901202684
Vibration Resistance2 gn 5-300 Hz) power po.
Voltage Rating230 V-440 V-500 V-690 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comLU2MB0B137.091In Stock10SQUARE D137.09 @ 1
thumbzoomRadwellLU2MB0B140.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE140.0 @ 1
thumbzoommayerelectric.comSQDLU2MB0B186.161In StockSQUARE D0.88186.16 @ 1
Newark20K1384210.221In StockSCHNEIDER ELECTRIC210.22 @ 1
RS Delivers493-9198212.2921In StockSchneider Electric212.292 @ 1
us.rs-online.com70379490228.2412Schneider Electric228.24 @ 1
thumbzoomcrescentelectric.com128576433.511In StockSchneider Electric433.51 @ 1
