Square D/Telemecanique LUCD18FU

B00CONN4TK

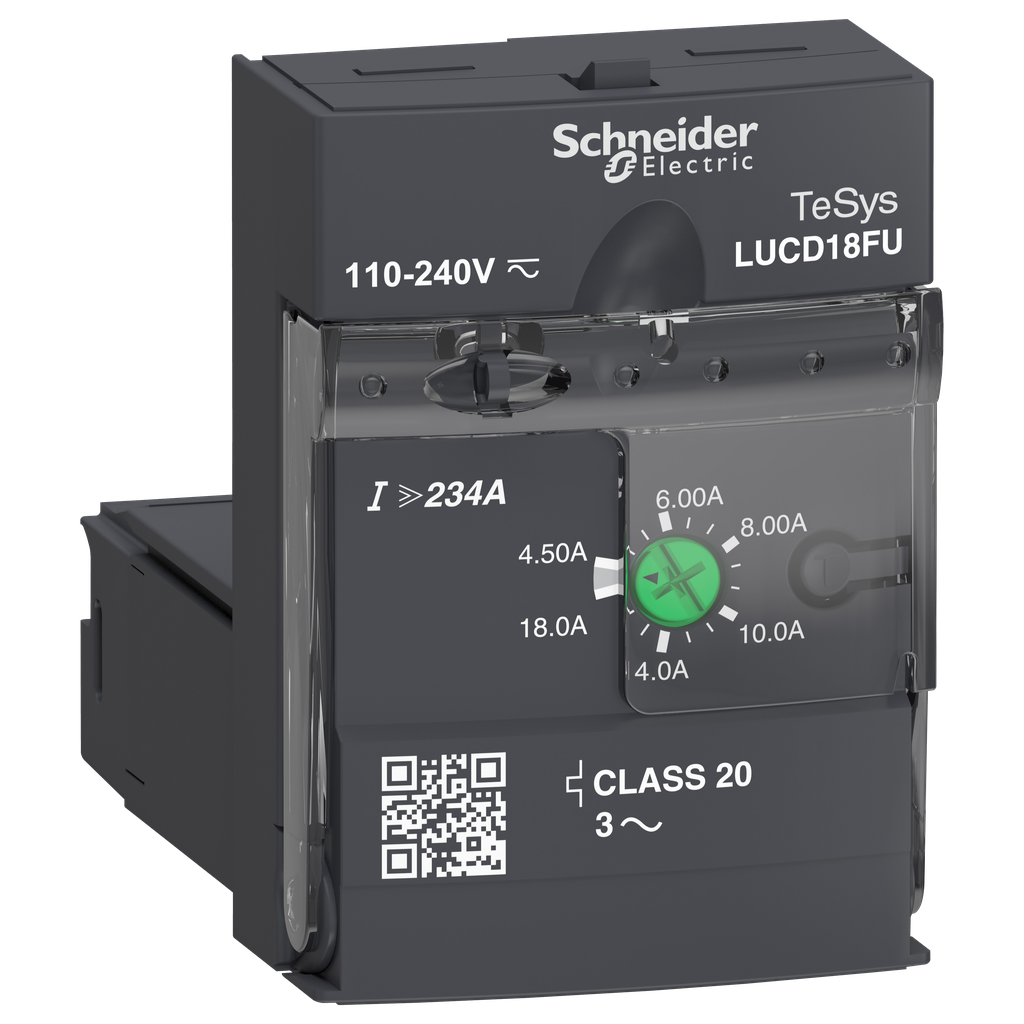

Square D Lucd18Fu 18A 110-240V Ctrlunit

Square D Lucd18Fu 18A 110-240V Ctrlunitzoom

Attributes

Key Value
[Uc] Control Circuit Vo.110...240 V AC || 110...
[Ue] Rated Operational .690 V AC
[Ui] Rated Insulation V.690 V IEC 60947-6-2 || .
[Uimp] Rated Impulse Wi.6 kV IEC 60947-6-2
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-85 ?C
Amperage Rating4.5 to 18, 4.5 to 18 A
ApplicationMotor control;motor pro.
BrandSchneider Electric
Catalog NumberLUCD18FU
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI100414
Coil Voltage110...240 V AC;110...22.
Compatibility CodeLUCD
Control Circuit Voltage.88...264 V AC 110...240.
Country of OriginFrance
Country of Origin (subj.France
Depth60 mm
Device Applicationmotor control || motor .
Device Short NameLUCD
Dimensions3.3 in L x 2.1 in W x 4.
Electrical ConnectionsWired
Enclosure TypeIP20/IP40
Environmental DisclosureENVPEP080204EN
Eu Rohs DirectiveCompliant
Fire Resistance960 ?C parts supporting.
Fixing Modeplug-in front face)
Frequency Rating50/60, 50/60 Hz
Function Availableearth fault protection .
Halogen Content Perform.Halogen free plastic pa.
Heat Dissipation3-3 W control circuit w.
Height66 mm
Immunity To Microbreaks3 ms
Immunity To Radioelectr.10 V IEC 61000-4-6
Immunity To Voltage Dips70 % / 500 ms IEC 61000.
Ip Degree Of ProtectionIP20 front panel and wi.
ItemAdvcntrlunitcl203Ph 451.
Item Typeadvanced control unit
Load Type3-phase motor self-cool.
Made in USANo
ManufacturerSchneider Electric
Mercury Freeyes
Motor Power Kw7.5 kW 400...440 V AC 5.
MountingFront Side,Plug-In
Mounting typeDIN Rail/Plug-In, Front.
Network Frequency40...60 Hz
Non-Dissipating Shock W.1 kV serial mode IEC 60.
Operating Altitude6561.68 ft (2000 m)
Operating Time35 ms opening with LUB3.
Phase Failure Sensitivi.yes
Power Supply110/240V
Product CertificationsCE || UL || CSA || CCC .
Product Compatibilitypower base LUB32 || pow.
Product NameTeSys Ultra
Product Or Component Ty.advanced control unit
Product Specific Applic.basic protection and ad.
Protective TreatmentTH IEC 60068
Pvc Freeyes
RangeTeSys
Range Of ProductTeSys Ultra
Reach RegulationReference contains Subs.
Resetmanual reset
Reset TypeSOLID STATE (CLASS 20)
Resistance To Electrost.8 kV 3 in open air IEC .
Resistance To Fast Tran.2 kV 3 serial link IEC .
Resistance To Radiated .10 V/m 3 IEC 61000-4-3
Rohs Exemption Informat.yes
Safe Separation Of Circ.400 V SELV between the .
SeriesTeSys? LUCD
Shock Resistance10 gn power poles open .
Size2.36
Special FeaturesEarth fault protection;.
StandardCE;UL;CSA;CCC;EAC;ASEFA.
StandardsEN 60947-6-2 || IEC 609.
Sub BrandTeSys Ultra;TeSys;LUCD
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-25 to 70, -25 to 70 de.
Thermal Overload Classclass 20 40-60 Hz -25-7.
Thermal Protection Adju.4.5-18 A
Tripping Threshold14.2 x Ir +/- 20 %
Type3-Phase Class 20 Solid .
Typical Current Consump.280 mA 110...240 V AC I.
UPC785901271109
Utilisation CategoryAC-41 || AC-43 || AC-44
Vibration Resistance2 gn 5-300 Hz power pol.
Voltage Rating110/240, 110/240 VAC, 6.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentLUCD18FU72.01In StockSchneider Electric72.0 @ 1
thumbzoomgordonelectricsupply.comLUCD18FU107.091In Stock10SQUARE D107.09 @ 1
thumbzoomstandardelectricsupply.com2325340126.691In StockSquare D (Schneider Electric)126.69 @ 1
thumbzoomsustainablesupply.comC3039677133.031In StockSchneider Electric0.32133.03 @ 1
thumbzoommayerelectric.comSQDLUCD18FU142.251In StockSQUARE D142.25 @ 1
thumbzoomZoroG0852638148.251In Stock50Schneider Electric0.32148.25 @ 1
thumbzoomkempstoncontrols.co.ukLUCD18FU152.4288871In StockSchneider152.428887 @ 1
us.rs-online.com71417024172.681In StockSchneider Electric172.68 @ 1
Newark89H5287176.131In StockSCHNEIDER ELECTRIC176.13 @ 1
thumbzoomNational Supply Network54422126193.681In StockSchneider Electric193.68 @ 1
thumbzoomcrescentelectric.com160716206.351In StockSchneider Electric206.35 @ 1
