Smith Bearing CR-3/4-X

B00MHRWA20

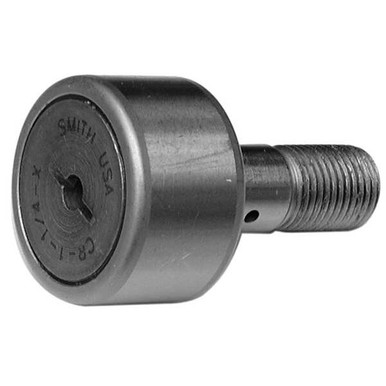

Smith Bearing CR-3/4-X Cam Follower Needle Roller Bearing, Regular Stud with Screwdriver Slot, Sealed, 0.750"

Smith Bearing CR-3/4-X Cam Follower Needle Roller Bearing, Regular Stud with Screwdriver Slot, Sealed, 0.750"zoom

Attributes

Key Value
Basic Dynamic Rating (l.2140
Bearing MaterialAlloy Steel
Bearing Material GradeAISI 52100
Bearing TypeNeedle Roller
BrandSmith Bearing
ClosureDouble Sealed
Current Stock97
Drive LocationStud
Drive TypeSlotted
Duty TypeStandard
Dynamic Radial Load Cap.2,140 lbf
Eff. Thread Min.3/8
Face DesignScrewdriver Slot
FeaturesScrewdriver Slot Stud T.
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
International ShippingNo
ItemCam Follower
Load DirectionRadial
Lube Fitting Size3/16
Lubrication OpeningsOiler Hole
Max. Static Capacity (l.2260
Maximum Temperature250 Degrees F
Min. Boss Dia.1/2
Minimum Temperature-30 Degrees F
MpnCR-3/4-X
Number of Bearings1
Oil Hole Dia.3/32
Oil Hole Location1/4
Overall Length1 13/32 in
Recom. Bore.3750
Recom. Torque (lbs-in)120
Roller Dia.0.75 in
Roller Dia. (In.)0.7500
Roller Diameter3/4 in
Roller Head TypeFlat
Roller MaterialAlloy Steel
Roller Material Grade52100
Roller O.D..750
Roller O.D. Tolerance+.000/-.001
Roller ShapeFlat
Roller StyleStud
Roller TypeScrewdriver Slot Head
Roller Width0.5 in, .500, 1/2 in
Roller Width (In.)0.5000
Roller Width Tolerance+.000/-.005
Rolling Element Rows1
Seal MaterialMolded Acetyl
Seal TypeContact
SKUZO-G4323112
SMITH Bearing NumberCR-3/4-X
StandardsABMA
Static Radial Load Capa.2,260 lbf
Stud Dia..375, 0.375 in
Stud Dia. (In.)0.3750
Stud Dia. Tolerance+.001/-.000
Stud Diameter3/8 in
Stud Length0.875 in, 7/8, 7/8 in
Stud Length (In.)0.875
Stud MaterialCarbon Steel
Stud Thread Length3/8 in
Stud Thread Size3/8"-24
Stud TypeConcentric
SubCategoryPower Transmission
System of MeasurementInch
Thread Length (In.)0.375 in
Thread Size3/8-24
Thread U.N.F. Class 2A3/8-24
TypeStud

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply278855214.153In StockSmith Bearings14.15 @ 3
thumbzoomsustainablesupply.comC165823822.421In StockSmith Bearing0.122.42 @ 1
thumbzoomZoroG432311223.191128Smith Bearing0.123.19 @ 1
motionindustries.com0009608226.671In StockSmith Bearing Company26.67 @ 1
grainger.caGUS13W68532.174979981In StockSMITH BEARING0.132.17497998 @ 1
thumbzoomsimsupply.comZO-G432311233.41197Smith Bearing33.41 @ 1
thumbzoomRaptor SuppliesAA6FTP47.599111In StockSMITH BEARING47.59911 @ 1
