Schneider Electric XCMD2106M12

B00CONKDS0

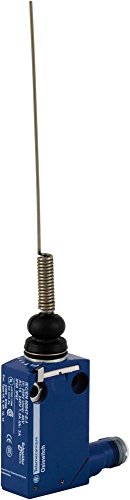

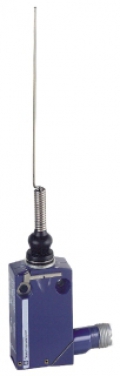

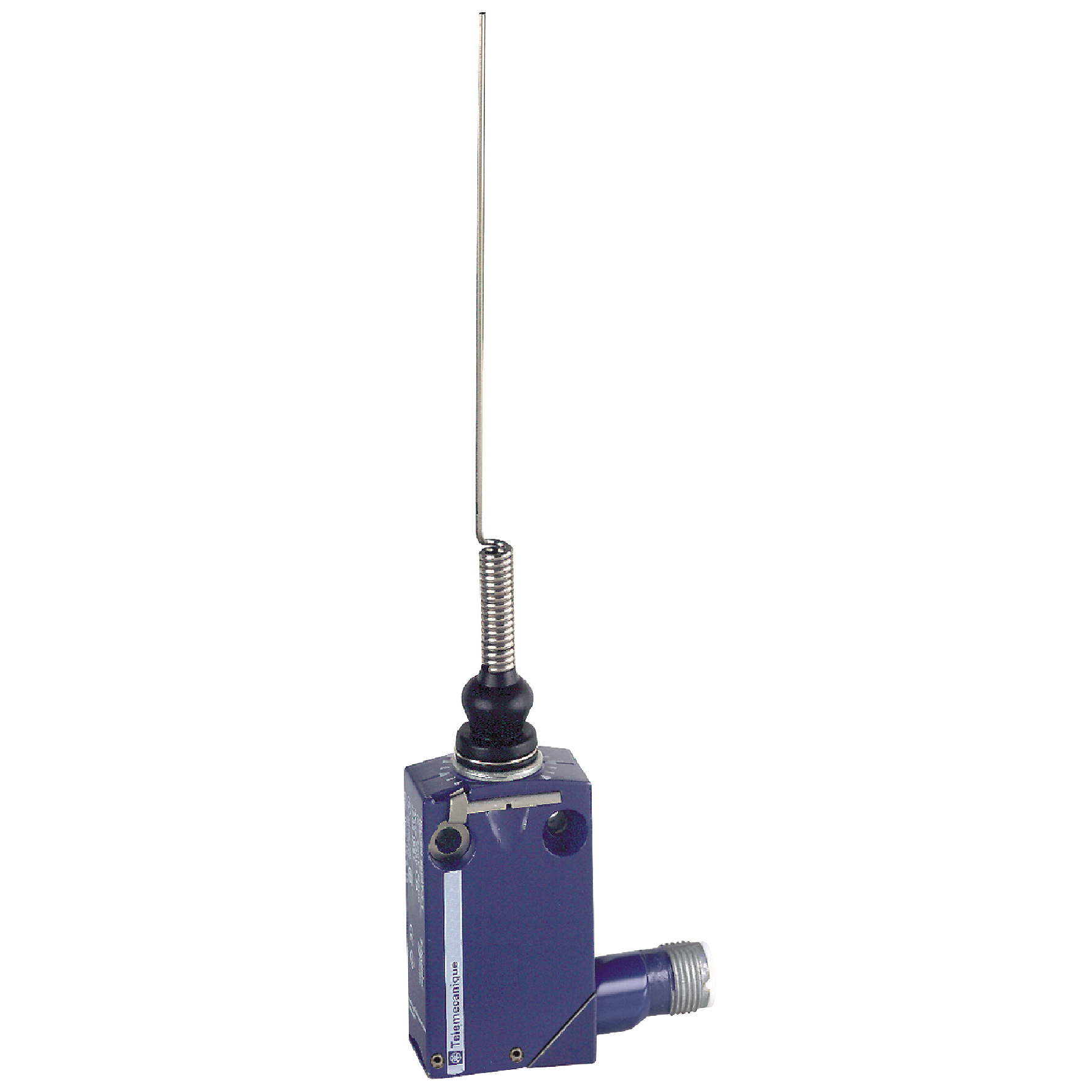

SCHNEIDER ELECTRIC XCMD2106M12 Limit Switch 240Vac 4A Plast Xcmd

SCHNEIDER ELECTRIC XCMD2106M12 Limit Switch 240Vac 4A Plast Xcmdzoom

Attributes

Key Value
[Ie] Rated Operational .1.5 A 240 V, AC-15 EN/I.
[Ithe] Conventional Enc.3 A
[Ui] Rated Insulation V.250 V 3)IEC 60947-5-1
[Uimp] Rated Impulse Wi.2.5 kV IEC 60664 || 2.5.
AC contacts rating @R1.5A / 240V AC
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Body dimensions30x50x16mm
Body materialmetal
Body Materialzamak
Body Typeplug-in body
California Proposition .Diisononyl phthalate (D.
Circularity ProfileENVEOLI110612EN
Connectionconnector M12
Contact current max.6A
Contact Operationsnap action
Contacts Insulation FormZa
Contacts Type And Compo.1 C/O
DC contacts rating @R1.5A / 24V DC
Depth16 mm
Device Short NameXCMD
Electrical Connectionmale connector M12, 4 p.
Electrical Durability5000000 cycles, DC-13, .
Electrical Shock Protec.class I IEC 61140 || cl.
Environmental DisclosureENVPEP110612EN
Eu Rohs DirectivePro-active compliance (.
Fixing Modeby the body
Head Materialzamak
Head Typemulti-directional head
Height50-50 mm
Ik Degree Of ProtectionIK06 EN 62262
Ip Degree Of ProtectionIP66 conforming to IEC .
IP ratingIP66
Kind of actuatorplunger on spring loade.
ManufacturerSCHNEIDER ELECTRIC
Manufacturer seriesXCMD
Materialmetal
Maximum Actuation Speed1 m/s
Maximum Resistance Acro.25 mOhm IEC 60255-7 cat.
Mechanical Durability5000000 cycles
Mercury FreeYes
Minimum Force For Tripp.0.1 N
Mounting holes pitch20mm
Movement Of Operating H.multi-directional
Net Weight0.085 kg
Number of mounting holes2
Number of pins4
Number Of Poles1
Operating temperature-25...70?C
Output configurationSPDT
Positive Openingwithout
Product CertificationsUL || CSA || CCC
Product Or Component Ty.limit switch
Protective TreatmentTC
Range Of ProductTelemecanique Limit swi.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Sensor Designminiature
Series Namestandard format
Shock Resistance25 gn 18 ms IEC 60068-2.
Short-Circuit Protection4 A cartridge fuse gG
StandardsEN/IEC 60204-1 || EN/IE.
Sustainable Offer StatusGreen Premium product
Switch Actuationby any moving part
Switched voltagemax. 250V AC,
Type Of Approachmulti-directional appro.
Type Of Operatorspring return cat''s wh.
Type of sensorlimit switch
Vibration Resistance5 gn 10-500 Hz)IEC 6006.
Warranty18 months
Width30 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TMEXCMD2106M1255.681In StockSCHNEIDER ELECTRIC55.68 @ 1
thumbzoomgordonelectricsupply.comXCMD2106M1276.091In Stock10SQUARE D76.09 @ 1
Onlinecomponents.comXCMD2106M1277.6611Schneider-Telemacanique77.66 @ 1
thumbzoomRadwellXCMD2106M1290.01In StockSCHNEIDER ELECTRIC TELEMECANIQUE90.0 @ 1
thumbzoommayerelectric.comSQDXCMD2106M1291.681In StockSQUARE D0.18791.68 @ 1
thumbzoomstandardelectricsupply.com220978892.741In StockSquare D (Schneider Electric)92.74 @ 1
