TB Woods 3V4751

B004KA9YEO

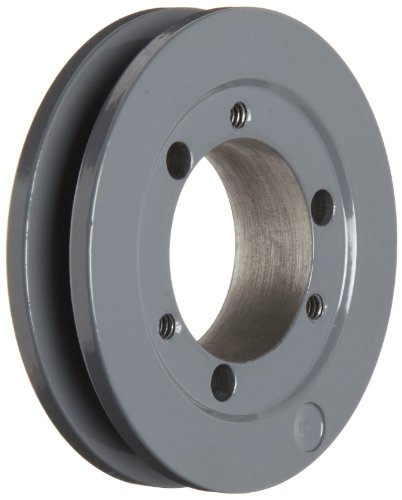

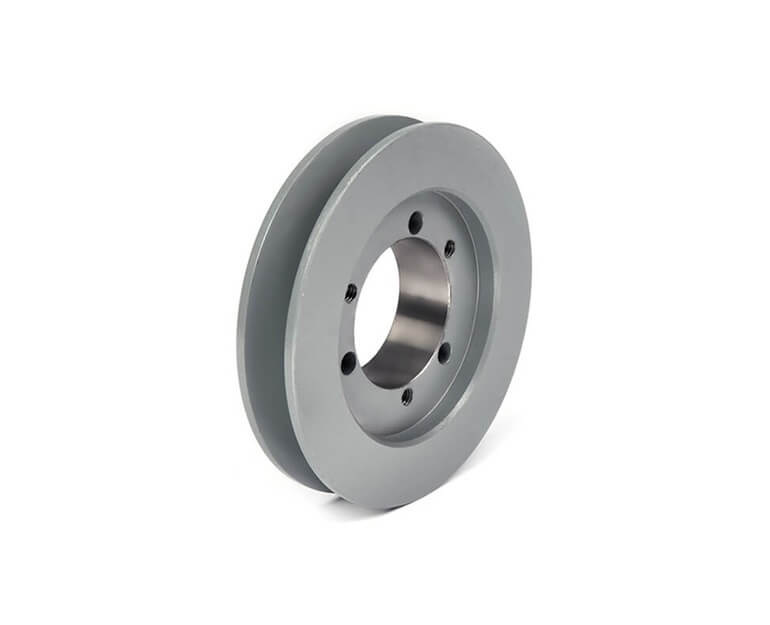

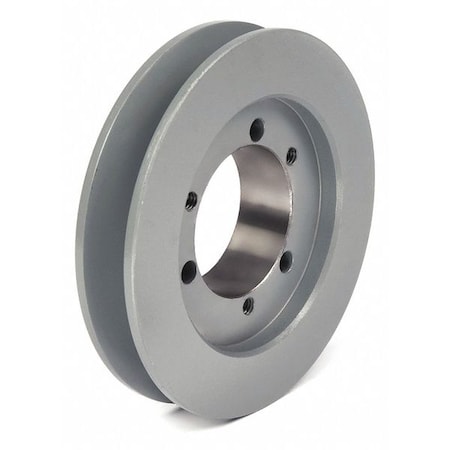

TB Woods 3V4751 Narrow V-Belt Sheave, 3V Belt Section, 1 Groove, SH Bushing required, Cast Iron, 4.75" OD

TB Woods 3V4751 Narrow V-Belt Sheave, 3V Belt Section, 1 Groove, SH Bushing required, Cast Iron, 4.75" ODzoom

Attributes

Key Value
3L Pitch DiameterNot Applicable
3V or 3VX Belt Pitch Di.4.75 in
3V Pitch Diameter4.75 in
3VX Pitch Diameter4.75 in
4L Pitch DiameterNot Applicable
5L Pitch DiameterNot Applicable
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch DiameterNot Applicable
AX Pitch DiameterNot Applicable
B Pitch DiameterNot Applicable
BalanceStandard, 1 plane
Belt section3V
Belt Section and Type (.3V Wedge, 3VX Cogged, 3.
Bore TypeBushed
Bore typeQuick disconnect bushing
BrandTb Woods
BushingSH
Bushing RequiredSH
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
Component WR2 (lbs ft2)0.05
ConstructionSolid
Current Stock5
CX Pitch DiameterNot Applicable
Datum diameter0
Dimension1.25
Dimension (E)0.56
Dimension (L)1.25
Face Diameter4.75 in
Face width0.69
Face Width0.69 in
Face width (in)0.69
Fits Shaft Dia.1/2 in to 1-5/8 in
For Belt Trade Size3V, 3VX
For Bushing SizeSH
For Bushing TypeQuick Detachable
For V-Belt Section3V, 3VX
For V-Belt TypeCogged, Wedge
Groove cross section se.3V
Hub location0
I.D.3.44
Industry Number3V4751
Inertia WR?6
International ShippingNo
ItemStandard V-Belt Pulley
Length through Bore1 1/4 in
MaterialCast Iron
Material FabricationCast
Material typeCast Iron
Max RPM5270
Maximum Bore Diameter1 5/8 in
Minimum Bore Diameter1/2 in
Mpn3V4751
Number of Grooves1
Number of grooves1
Number of Steps1
O.D.4.75
Outside Diameter4.75 in
Outside diameter (in)4.75
Overall Width1 1/4 in
Pitch diameter4.75
Pitch Diameter4.75 in, Not Applicable
Pitch Diameter for V-Be.3V: 4.75 in
Pulley Bore TypeQuick Detachable Bushed.
Pulley ConstructionPlain
Pulley MaterialCast Iron
Pulley Outside Dia.4.75 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit5270
Set Screw IncludedNo
SKUZO-G2110631
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672050975
Weight2.6 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG211063119.99110Tb Woods2.5519.99 @ 1
thumbzoomsustainablesupply.comC268275621.231In StockTB Wood's2.5521.23 @ 1
thumbzoomsimsupply.comZO-G211063130.7915Tb Woods30.79 @ 1
thumbzoombscsource.com3V475139.691In StockTB Wood's39.69 @ 1
grainger.caWWG6UDP744.687875421In StockTB WOOD'S2.5544.68787542 @ 1
thumbzoomGuardian5551962346.411In StockTB Wood's46.41 @ 1
thumbzoomNational Supply Network5551962349.061In StockTB Wood's49.06 @ 1
thumbzoomMRO Supply34728954.922In StockTB Woods54.92 @ 2
us.rs-online.com7393041360.921In StockTB Wood's (Altra)60.92 @ 1
motionindustries.com0070557378.051In StockTB Woods (Altra)78.05 @ 1
thumbzoomRaptor SuppliesAF2HTJ89.1421831In StockTB WOOD'S89.142183 @ 1
