TB Woods 3V4752

B004KA9YEE

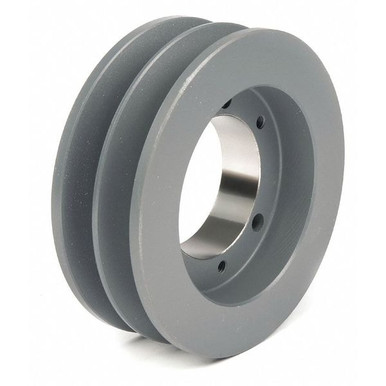

TB Woods 3V4752 Narrow V-Belt Sheave, 3V Belt Section, 2 Grooves, SH Bushing required, Cast Iron, 4.75" OD

TB Woods 3V4752 Narrow V-Belt Sheave, 3V Belt Section, 2 Grooves, SH Bushing required, Cast Iron, 4.75" ODzoom

Attributes

Key Value
3L Pitch DiameterNot Applicable
3V or 3VX Belt Pitch Di.4.75 in
3V Pitch Diameter4.75 in
3VX Pitch Diameter4.75 in
4L Pitch DiameterNot Applicable
5L Pitch DiameterNot Applicable
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch DiameterNot Applicable
AX Pitch DiameterNot Applicable
B Pitch DiameterNot Applicable
BalanceStandard, 1 plane
Belt section3V
Belt Section and Type (.3V Cogged, 3V Wedge, 3V.
Bore typeQuick disconnect bushing
BrandTb Woods
BushingSH
Bushing RequiredSH
BX Pitch DiameterNot Applicable
C Pitch DiameterNot Applicable
Component WR2 (lbs ft2)0.07
ConstructionSolid
Current StockIn Stock
CX Pitch DiameterNot Applicable
Datum diameter0
Dimension1.25
Dimension (E)0.25
Dimension (L)1.25
Dimension (M)0.09
Face Diameter4.75 in
Face width1.09
Face Width1.09 in
Face width (in)1.09
Fits Shaft Dia.1/2 in to 1-5/8 in
For Belt Section (broad.3V or 3VX
For Belt Trade Size3V, 3VX
For Bushing SizeSH
For Bushing TypeQuick Detachable
For V-Belt Section3V, 3VX
For V-Belt TypeBanded, Cogged, Wedge
Groove cross section se.3V
Hub location0.31
Hub location (in)0.31
I.D.3.44
Industry Number3V4752
Inertia WR?8
Inside diameter (in)3.44
International ShippingNo
ItemStandard V-Belt Pulley
Length through Bore1 1/4 in
MaterialCast Iron
Material FabricationCast
Material typeCast Iron
Max RPM5270
Maximum Bore Diameter1 5/8 in
Minimum Bore Diameter1/2 in
Mpn3V4752
Number of Grooves2
Number of grooves2
Number of Steps2
O.D.4.75
Outside Diameter4.75 in
Outside diameter (in)4.75
Overall Width1 5/16 in
Pitch diameter4.75
Pitch DiameterNot Applicable
Pitch Diameter for V-Be.3V: 4.75 in
Pulley Bore TypeQuick Detachable Bushed.
Pulley MaterialCast Iron
Pulley Outside Dia.4.75 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit5270
Set Screw IncludedNo
SKUZO-G2116773
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672050982
Weight3.2 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC268280129.991In StockTB Wood's3.1529.99 @ 1
thumbzoomZoroG211677333.29129Tb Woods3.1533.29 @ 1
thumbzoomsimsupply.comZO-G211677344.471In StockTb Woods44.47 @ 1
thumbzoombscsource.com3V475261.191In StockTB Wood's61.19 @ 1
thumbzoomGuardian5551934269.631In StockTB Wood's69.63 @ 1
thumbzoomNational Supply Network5551934274.471In StockTB Wood's74.47 @ 1
thumbzoomMRO Supply34618381.351In StockTB Woods81.35 @ 1
us.rs-online.com7393041490.251In StockTB Wood's (Altra)90.25 @ 1
motionindustries.com00705732115.61In StockTB Woods (Altra)115.6 @ 1
thumbzoomRaptor SuppliesAE7HUN122.5062541In StockTB WOODS122.506254 @ 1
