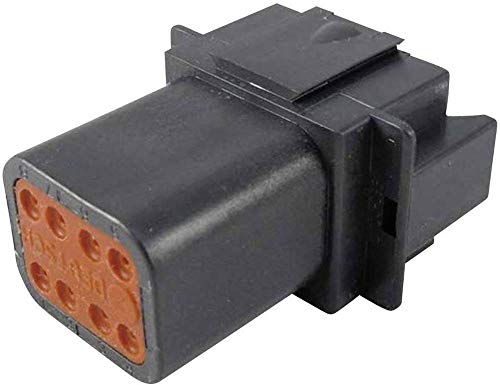

Deutsch DT04-08PA-CE02

mpnDT04-08PA-CE02
brandname: TE Connectivity
manufacturername: TE Connectivity

Deutsch Connector

Deutsch Connector

zoom

Brand: Deutsch
PartNumber: DT04-08PA-CE02
Model: DT04-08PA-CE02
PackageQuantity: 1
Manufacturer: Deutsch
Label: Deutsch

Attributes

Key	Value
AC Voltage	250 V
Angle	Straight
Application	Power ; Signal
Base Product Number	DT04
Body Material	PA GF
Cable Exit Angle	180 Degrees
Category	Connectors, Interconnec.
Color	Black
Connector Style	Wire-to-Wire
Connector Type	Receptacle
Contact Current Rating	13 A
Contact Termination	Crimp
Contact Type	Male Pin
Current Rating	13 A
DC Voltage	250 V
Fastening Type	Latch Holder
Features	IP68, IP6K9K, Reduced W.
Flammability Rating	12 mm Flame Test per St.
Gender	Female
Height	23.8800 mm
Hole Size	1.5 mm
Housing Material	Polyamide
IP Rating	IP68 ; IP6K9K
Length	45.67 mm
Matrix Centerline	9.1200 mm
Maximum Operating Tempe.	125 ?C
Mfr	TE Connectivity Deutsch.
Minimum Operating Tempe.	-55 ?C
Mounting Type	Free Hanging (In-Line),.
Nominal Voltage	12 ; 24 ; 48 V
Note	Contacts Not Included
Number of Contacts	8
Number of Positions	8
Number of Rows	2
Package	Bulk
Package Quantity	350
Packaging	Box
Part Status	Active
Pin Diameter	1.5900 mm
Pitch	-
Primary Type	Housing
Row Spacing	-, 4.4500
Series	DT, DT Series
Standards	SAE J2030
Termination	PCB
Type	For Male Terminals
Width	36.45 mm
Wire Insulation Diameter	1.3500 - 3.0500 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70696040	1.5	1	66		TE Connectivity		1.5 @ 1
	Future Electronics	C117973184	2.364	6	66		TE Connectivity		2.364 @ 6
	Digi-Key	7219878	2.68451	350	66		TE Connectivity Deutsch Connectors		2.68451 @ 350
	Newark	77R3076	2.85	1	74		DEUTSCH - TE CONNECTIVITY		2.85 @ 1
	Mouser	571-DT04-08PA-CE02	11.32	1	66		TE Connectivity / Deutsch		11.32 @ 1
