TE Connectivity 7-52935-1

mpn7-52935-1
brandname: TE Connectivity (TE)
manufacturername: TE Connectivity (TE)

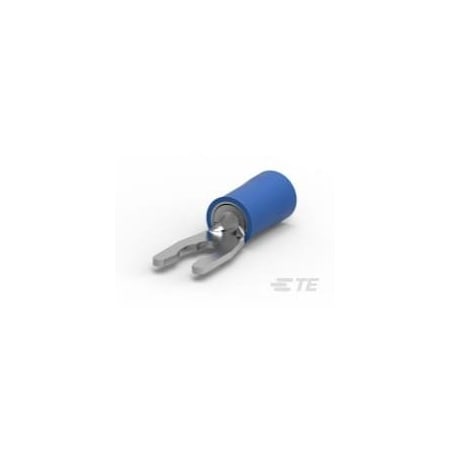

TE CONNECTIVITY/AMP 7-52935-1 TERMINAL, SPADE/FORK, 6, CRIMP, BLUE

Brand: TE Connectivity
PartNumber: 7-52935-1
Color: Blue
PackageQuantity: 1
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Barrel Color	Blue
Barrel Inside Diameter	.173
Barrel Style	Standard
Barrel Type	Closed Barrel
Base Product Number	52935
Body Style	Short
Category	Connectors, Interconnec.
Color	Blue
Contact Finish	Tin
Contact Material	Phosphor Bronze
Country of Origin (subj.	United States
Description	CONN SPADE TERM 14-16AW.
Detailed Description	Blue 6 Stud Spade Termi.
Digi-Key Part Number	A136589-ND
Discrete Wire Type	Solid or Stranded
Features	Serrated Termination
Government Qualified	No
Heavy Duty	No
Inspection Slot	No
Insulated	Yes
Insulation	Insulated
Insulation Diameter	0.115" ~ 0.170" (2.92mm.
Insulation Material	Nylon
Insulation Sleeve Color	Blue
Insulation Sleeve Mater.	Copper
Length - Overall	0.799" (20.29mm)
Length - Ring Center to.	0.250" (6.35mm)
Length - Termination	0.404" (10.26mm)
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	7-52935-1
Manufacturer Standard L.	37 Weeks
Material - Insulation	Polyamide (PA), Nylon
Mfr	TE Connectivity AMP Con.
Mounting Type	Free Hanging (In-Line)
Overall Length	.799
Package	Bulk
Packaging Method	Loose Piece
Packaging Quantity	100
Plating Material	Phosphor Bronze, Tin
Product Status	Active
Sealable	No
Series	PIDG
Shape Code	SPADE-028
Stud Diameter?:<.	3.56?mm?[?.14?in?]
Stud Size	6, M3.5
Stud/Tab Size	6 Stud
Support Style	Insulation Support
Terminal Angle	Straight
Terminal Orientation	Straight
Terminal Type	Spring Spade, Spring, S.
Termination	Crimp
Tongue Inside Opening	0.140" (3.56mm)
Tongue Thickness&thinsp.	.79?mm?[?.031?in?]
Voltage (Max)	300
Width - Outer Edges	0.250" (6.35mm)
Wire Gauge	14-16 AWG
Wire Insulation Diamete.	.182
Wire Insulation Diamete.	2.92 ? 4.31?mm?[?.1149 .
Wire Insulation Support	With
Wire Size	16 ? 14, 2050 ? 5180, 1.
Wire/Cable Type	Regular Wire

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Waldom	TE CONNECTIVITY 7-52935-1	0.44	2000	2	TE Connectivity		0.44 @ 2
Onlinecomponents.com	7-52935-1	0.65	1	1889	TE Connectivity / AMP Brand		0.65 @ 2
Digi-Key	297807	0.95	1	3537	TE Connectivity AMP Connectors		0.95 @ 2
Zoro	G000926581	0.95	2000	2	Te Connectivity		0.95 @ 2000
Newark	24R5160	1.0	1	2	AMP - TE CONNECTIVITY		1.0 @ 2
AmazonSC	B00OVFA6WW	119.99	1	2	TE CONNECTIVITY %2F AMP	0.000625	119.99 @ 2
