Texas Instruments SN65HVD1781DR

mpnSN65HVD1781DR
brandname: Texas Instruments
manufacturername: Texas Instruments

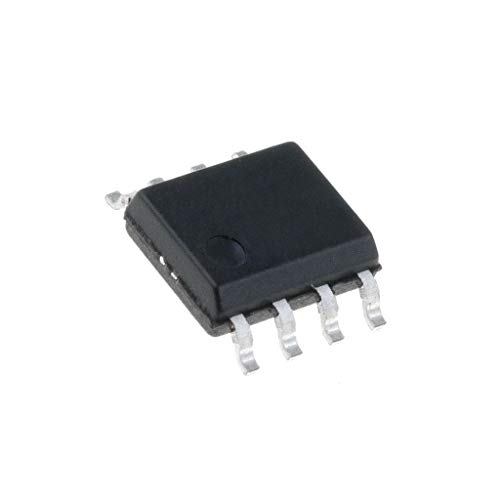

SN65HVD1781DR

SN65HVD1781DR

zoom

Brand: Texas Instruments
PartNumber: SN65HVD1781DR
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Alternate Part No.	595-SN65HVD1781DR
Base Product Number	65HVD1781
Brand	Texas Instruments
Category	Integrated Circuits (IC.
Data Rate	1 Mb/s, 1Mbps
Duplex	Half Duplex, Half
Function	Transceiver
Input Voltage	- 7 V to + 12 V
Manufacturer	Texas Instruments
Manufacturer Part No.	SN65HVD1781DR
Maximum Operating Tempe.	+ 125 C
Maximum Power Dissipati.	905 mW
Mfr	Texas Instruments
Minimum Operating Tempe.	- 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Drivers	1 Driver
Number of Drivers/Recei.	1/1
Number of Receivers	1 Receiver
Operating Supply Voltage	3.3, 5 V
Operating Temperature	-40?C ~ 125?C
Operating Temperature R.	- 40 C to + 125 C
Output Voltage	2.75 V
Package	Tape & Reel (TR)
Package / Case	8-SOIC (0.154", 3.90mm .
Package/Case	SOIC-8
Packaging	Reel
Part Status	Active
Product Category	RS-485 Interface IC
Product Status	Active
Propagation Delay Time .	200 ns
Protocol	RS422, RS485
Receiver Hysteresis	50 mV
Series	SN65HVD1781, -
Shutdown	No
Supplier Device Package	8-SOIC
Supply Current	6 mA
Type	Transceiver
Unit Weight	76 mg
Voltage - Supply	3.15V ~ 5.5V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Win Source	SN65HVD1781DR	1.314	40	15000		Texas Instruments		1.314 @ 40
	Radwell	SN65HVD1781DR	5.67	1	In Stock		TEXAS INSTRUMENTS SEMI	1.0	5.67 @ 1
	Digi-Key	1805638	5.79	1	In Stock		Texas Instruments		5.79 @ 1
	Newark	28AH4899	6.61	1	In Stock		TEXAS INSTRUMENTS		6.61 @ 1
	swatee.com	SN65HVD1781DR	7.87	1	3439		Texas Instruments		7.87 @ 1
