- mpnLM358P
- brandname: TI
- manufacturername: TI

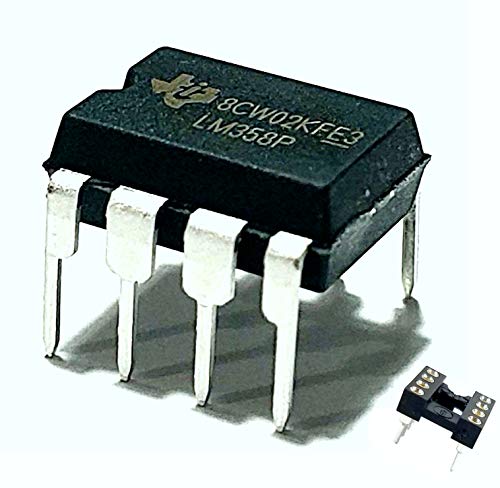

Juried Engineering LM358P IC Dual Operational Amplifier & 8-Pin DIP Sockets with Machined Contact Pins Breadboard-Friendly (Pack of 1)
- Brand: Juried Engineering
- PartNumber: LM358P
- Size: 1 Piece
- Manufacturer: TI
- Label: TI
Attributes
| Key | Value |
|---|
| Alternate Part No. | 595-LM358P |
| Amplifier Type | General Purpose, High G. |
| Base Product Number | LM358 |
| Brand | Texas Instruments |
| Case | DIP8 |
| Category | Integrated Circuits (IC. |
| CMRR - Common Mode Reje. | 65 dB |
| Com Mode Inp Range (VIC. | 30 |
| Current - Input Bias | 20 nA |
| Current - Output / Chan. | 40 mA |
| Current - Supply | 500?A (x2 Channels) |
| Description | IC OPAMP GP 2 CIRCUIT 8. |
| Detailed Description | General Purpose Amplifi. |
| Digi-Key Part Number | 296-1395-5-ND |
| Dual Supply Voltage | +/- 3 V, +/- 5 V, +/- 9. |
| en - Input Voltage Nois. | 40 nV |
| Gain Bandwidth Product | 700 kHz, 1 MHz |
| GBP - Gain Bandwidth Pr. | 0.7 MHz |
| I(io) Max. (A) | 150n |
| Ib - Input Bias Current | 250 nA |
| In-stock | 0 |
| Inp Bias Curr. Max. (A) | 250n |
| Input Offset Voltage | 2 mV |
| Manufacturer | Texas Instruments |
| Manufacturer Part No. | LM358P |
| Manufacturer Product Nu. | LM358P |
| Manufacturer Standard L. | 6 Weeks |
| Marking Code | LM358P |
| Maximum Dual Supply Vol. | +/- 16 V |
| Maximum Operating Tempe. | + 70 C |
| Mfr | Texas Instruments |
| Minimum Dual Supply Vol. | +/- 1.5 V |
| Minimum Operating Tempe. | 0 C |
| Mounting Style | Through Hole |
| Mounting Type | Through Hole |
| No. of Pins | 8 |
| Number of Channels | 2 Channel |
| Number of Circuits | 2 |
| Oper. Temp (?C) Max. | 70 |
| Oper. Temp (?C) Min | 0 |
| Operating Supply Voltage | 3 V to 32 V, +/- 1.5 V . |
| Operating Temperature | 0?C ~ 70?C (TA), 0?C to. |
| Output Current per Chan. | 30 mA |
| Output Type | - |
| Package | Tube |
| Package / Case | DIP-8, 8-DIP (0.300", 7. |
| Package/Case | DIP-8, PDIP-8 |
| Packaging | Tube |
| PD Max. (W) | 640m |
| Pinout Equivalence Numb. | 8-837 |
| Product | Operational Amplifiers |
| Product Categories | Op Amps |
| Product Category | Operational Amplifiers . |
| Product Status | Active |
| RoHs Status | Lead free / RoHS Compli. |
| Series | LM358, - |
| Shutdown | No Shutdown |
| Single Supply Voltage | 3 V to 32 V |
| SKU | 17496 |
| Slew Rate | 0.3 V/?s, 0.3V/?s |
| SR - Slew Rate | 0.3 V/us |
| Supplier Device Package | 8-PDIP |
| Supply Current per Chan. | 1.2 mA |
| Supply Voltage - Max | 32 V |
| Supply Voltage - Min | 3 V |
| Surface Mounted Yes/No | NO |
| Technology | Bipolar |
| Temp Coef. of VIO | 7.0u |
| Type | Integrated Circuit |
| Unit Weight | 440.400 mg |
| Unity Gain BW (Hz) | 1.0M |
| V(io) Max. (V) | 7.0m |
| Voltage - Input Offset | 3 mV |
| Voltage - Supply Span (. | 30 V |
| Voltage - Supply Span (. | 3 V |
| Vos - Input Offset Volt. | 7 mV |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Freelance Electronics | LM358P | 0.09173 | 1 | 5 | | Texas Instruments | | 0.09173 @ 5 |
 | Newark | 64AH3850 | 0.129 | 5 | 5 | | TEXAS INSTRUMENTS | | 0.129 @ 5 |
| Arrow | LM358P | 0.211 | 1000 | 5 | | Texas Instruments | | 0.211 @ 1000 |
 | TME | LM358P | 0.27 | 3 | 7656 | | TEXAS INSTRUMENTS | | 0.27 @ 5 |
 | Component Electronics | 358P-TI2 | 0.38 | 1 | 100 | | Texas Instruments | | 0.38 @ 5 |
 | IBS Electronics | LM358P | 0.39 | 1 | 5 | | TEXAS INSTRUMENTS | | 0.39 @ 5 |
| Mouser | 595-LM358P | 0.41 | 1 | 1493 | | Texas Instruments | | 0.41 @ 5 |
| Hotenda | H2511640 | 0.44 | 1 | 5 | | Texas Instruments | | 0.44 @ 5 |
 | Digi-Key | 277042 | 0.456 | 1 | 84101 | | Texas Instruments | | 0.456 @ 5 |
| RS Delivers | 197-7265 | 0.4572 | 1 | 4600 | | Texas Instruments | | 0.4572 @ 5 |
 | swatee.com | LM358P | 0.83 | 1 | 3384 | | Texas Instruments | | 0.83 @ 5 |
| AmazonTP | B06W9JF54K | 5.84 | 1 | 5 | 2 | Texas Instruments | | 5.84 @ 5 |
| Little Diode | LM358P | 5.9331285 | 1 | 222 | | Texas Instruments | | 5.9331285 @ 5 |
 | ebay.com_harrywubah | LM358P | 100.97 | 1 | 5 | | TEXAS INSTRUMENTS | | 100.97 @ 5 |
 | ebay.com_mara_industrial | LM358P | 117.76 | 1 | 5 | | TEXAS INSTRUMENTS | | 117.76 @ 5 |
 | ebay.com_jbk-2 | LM358P | 135.99 | 1 | 5 | | TEXAS INSTRUMENTS | | 135.99 @ 5 |
