TIMKEN SCJT 3/4

B00UQVM6QY

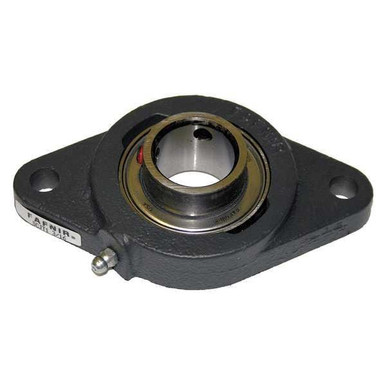

Timken - SCJT 3/4-2-Bolt Flange Bearing: 3/4 in Bore Dia, Set Screw, Cast Iron, 52100 Chrome Steel, SCJT, Ball

Timken - SCJT 3/4-2-Bolt Flange Bearing: 3/4 in Bore Dia, Set Screw, Cast Iron, 52100 Chrome Steel, SCJT, Ballzoom

Attributes

Key Value
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bolt Center-to-Center L.3-17/32 in
Bolt Hole Center-to-Cen.3 17/32 in
Bolt Size3/8 in
Bolt Spacing3.531 Inch | 89.7 Milli.
Bore0.75 Inch | 19.05 Milli.
Bore Dia.3/4 in
Bore Diameter3/4 in
BrandTIMKEN
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
Category - BDIFlange Block
ColorBlack
Current Stock42
Description:Ball Flange Unit
Dimension A45/64 in
Dimension B15/16 in
Dimension E1 in
Dimension F31/32 in
Dimension H3 7/8 in
Dimension J3 in
Dimension L2 3/8 in
Dimension N25/64 in
EAN0087796056831
Expansion / Non-expansi.Non-expansion
FinishUncoated
Flange Mounting Type2-Bolt
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
Housing Style2 Bolt Flange Block
Inch - MetricInch
Inner Ring Width1.063 in
Insert Part NumberGYA012RRB
International ShippingNo
Keyword StringFlanged
Length Thru Bore1.063 Inch | 27 Millime.
Load Capacity3200 lb Dynamic/1400 lb.
Locking DeviceSet Screw
Long Description2 Bolt Flange Block; 3/.
ManufacturerTIMKEN CO
Manufacturer Item NumberSCJT 3/4
Manufacturer NameTIMKEN
Maximum Speed6270 rpm
MFG Part #:SCJT 3/4
Minimum Buy QuantityN/A
Mount Hole Center-to-Ce.3 33/64 in
Mount Hole Size0.394 in
Mounting Bolt Size3/8 in
Mounting Bolts25/64 Inch
Mounting MethodSet Screw
MpnSCJT 3/4
Nominal Bolt Circle Dia.3.5 Inch | 90 Millimeter
NounBearing
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
Overall Depth1-1/8 in
Overall Height4 13/32 in, 2-9/16 in
Overall Length2 9/16 in
Overall Length/Diameter4-13/32 in
Overall Width1 1/8 in
Pilot ConfigurationNo Pilot
Product Group - BDIM06110
RelubricatableYes
Rolling ElementBall Bearing
SealsDouble Land Riding Rubb.
SeriesSCJT
Shaft Locking TypeSet Screws
SKUZO-G8284841
SubCategoryPower Transmission
Supplier:TIMKEN CO
Temperature Rating-30 to 275 deg F
TypeNormal Duty Standard
UNSPSC31171501
UPC087796056831
UPC:087796056831
Weight / Kilogram0.43
Weight / LBS0.94

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express137257347.44922738110TIMKEN0.94647.44922738 @ 1
thumbzoomMRO Supply507722049.091In Stock14Timken1.0649.09 @ 1
thumbzoomapexindustrialautomation.comSCJT 3/456.081428Timken56.08 @ 1
thumbzoomFinditParts159943964.221In StockTIMKEN64.22 @ 1
thumbzoomZoroG828484169.15156Timken1.169.15 @ 1
motionindustries.com0059101376.661In StockTimken (Fafnir)76.66 @ 1
kscdirect.comTIM SCJT 3/481.561In StockTIMKEN CO81.56 @ 1
thumbzoomsimsupply.comZO-G828484181.95142Timken81.95 @ 1
cbtcompany.comSCJT 3/490.621In StockTimken90.62 @ 1
