WEG 00158ET3H145TC-W22

B00BC7EPP6

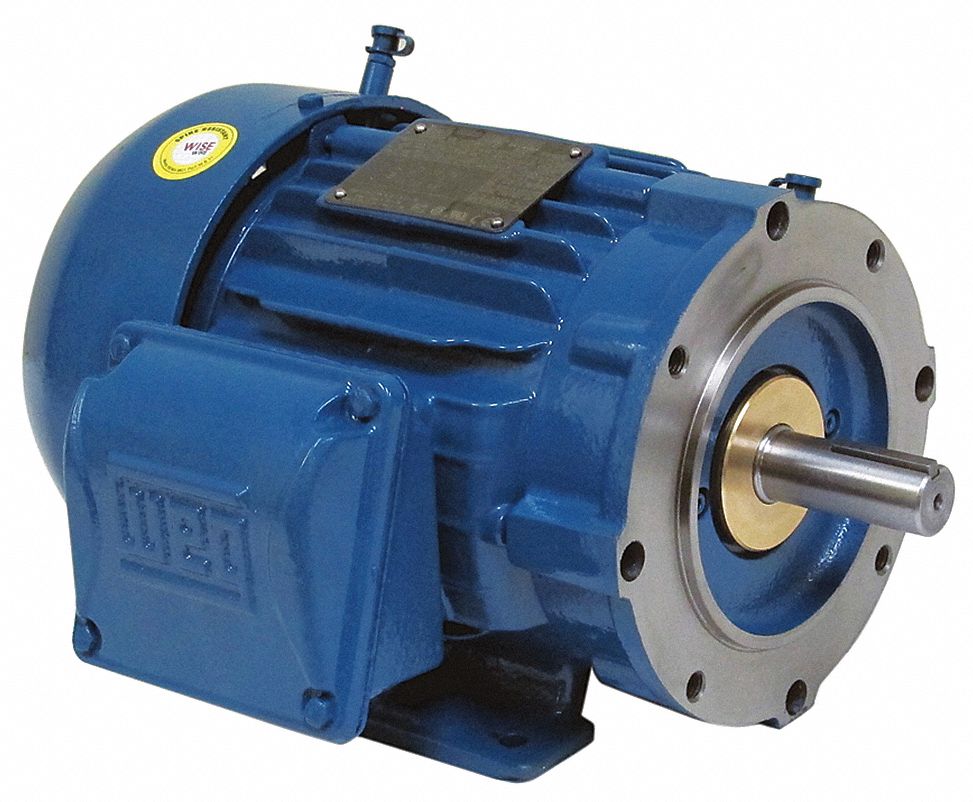

WEG 00158ET3H145TC-W22 NEMA Premium Efficiency Severe Duty and General Purpose Electric Motor, Ball Bearings, 1.5 HP, 3-Phase, 1755 RPM, 575 V, 60 Hz, Frame 143/5TC

WEG 00158ET3H145TC-W22 NEMA Premium Efficiency Severe Duty and General Purpose Electric Motor, Ball Bearings, 1.5 HP, 3-Phase, 1755 RPM, 575 V, 60 Hz, Frame 143/5TCzoom

Attributes

Key Value
Amperage Rating1.62 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 1.5HP 4P 143/5TC .
Dimensions13.358 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %86.5 %
EnclosureTEFC, IC411 -TEFC, Tota.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight57.00
Family SeriesWEG Electric Motors
FL Amps1.62
FL Efficiency86.5
FlangesFlange C
Footnotes20:1 CT and 1000:1 VT
FRAME143/5TC
Frame143-5TC, 143TC, 145TC, .
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps1.62
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower1.5 hp, 1-1/2 hp
HP1.5
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00158ET3H145TC-W22
Kw1.1
Length Less Shaft11 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00158ET3H145TC-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00158ET3H145TC-W22
Model11767948
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTEFC
Motor Frame MaterialCast Iron
Motor Mounting TypeFOOT
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1800
NEMA DesignNone
NEMA Frame145TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency86.5
Nominal Voltage575 VAC, 600 VAC
Number of Poles4
Number of Speeds1
Output Rating1.5 hp
Overall Length13.358
Part Number00158ET3H145TC-W22
Phase3, Three, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1755, 1,800 RPM, 1800
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Shaft Size7/8 in Dia x 2-1/4 in L
Speed (RPM)1800
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327843844
Usable @ 200VNo
Usable @ 208VNo
Voltage575 V, 575V AC, 575V, 5.
VOLTAGE575
Voltage (AC)575 VAC
Voltage Compatibility575V AC
Volts575
Weight52.2 lb, 53.650000
WEIGHT56

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00158ET3H145TC-W22434.251In Stock17WEG434.25 @ 1
thumbzoomZoroG6987495434.251In Stock26Weg70.3434.25 @ 1
thumbzoommotorsandcontrol.com00158ET3H145TC-W22434.251In StockWEG Electric57.0434.25 @ 1
kscdirect.comWEG 00158ET3H145TC-W22444.661In StockWEG ELECTRIC CORP444.66 @ 1
thumbzoomMRO Supply1312147457.261In StockWEG457.26 @ 1
thumbzoomGalco00158ET3H145TC-W22-WEG475.551In StockWEG Electric475.55 @ 1
thumbzoomindustrialrefrigerationparts.com00158ET3H145TC-W22506.571In StockWEG53.65506.57 @ 1
thumbzoomDealers Electric00158ET3H145TC-W22528.631In StockWeg57.0528.63 @ 1
thumbzoomPurvis00158ET3H145TC-W22529.211In StockWEG529.21 @ 1
thumbzoomRadwell00158ET3H145TC-W22540.01In StockWEG540.0 @ 1
thumbzoomvfds.com00158ET3H145TC-W22579.01In StockWEG579.0 @ 1
Airline HydraulicsWEG 00158ET3H145TC-W22596.911In StockWEG596.91 @ 1
thumbzoomsustainablesupply.comC1487776719.231In StockWEG70.3719.23 @ 1
thumbzoomNational Supply NetworkB873317780.751In StockWeg Electric Motors780.75 @ 1
thumbzoomRaptor SuppliesAA4JCY822.62659051In StockWEG822.6265905 @ 1
