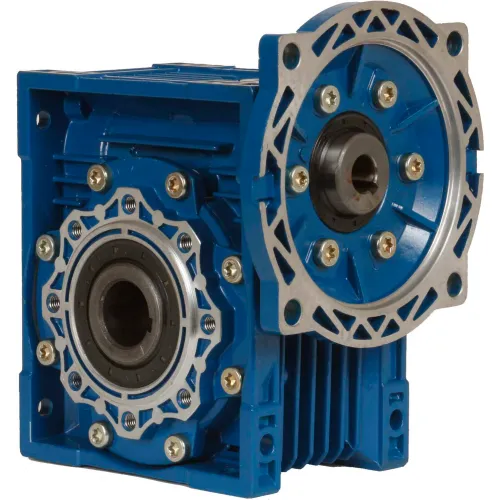

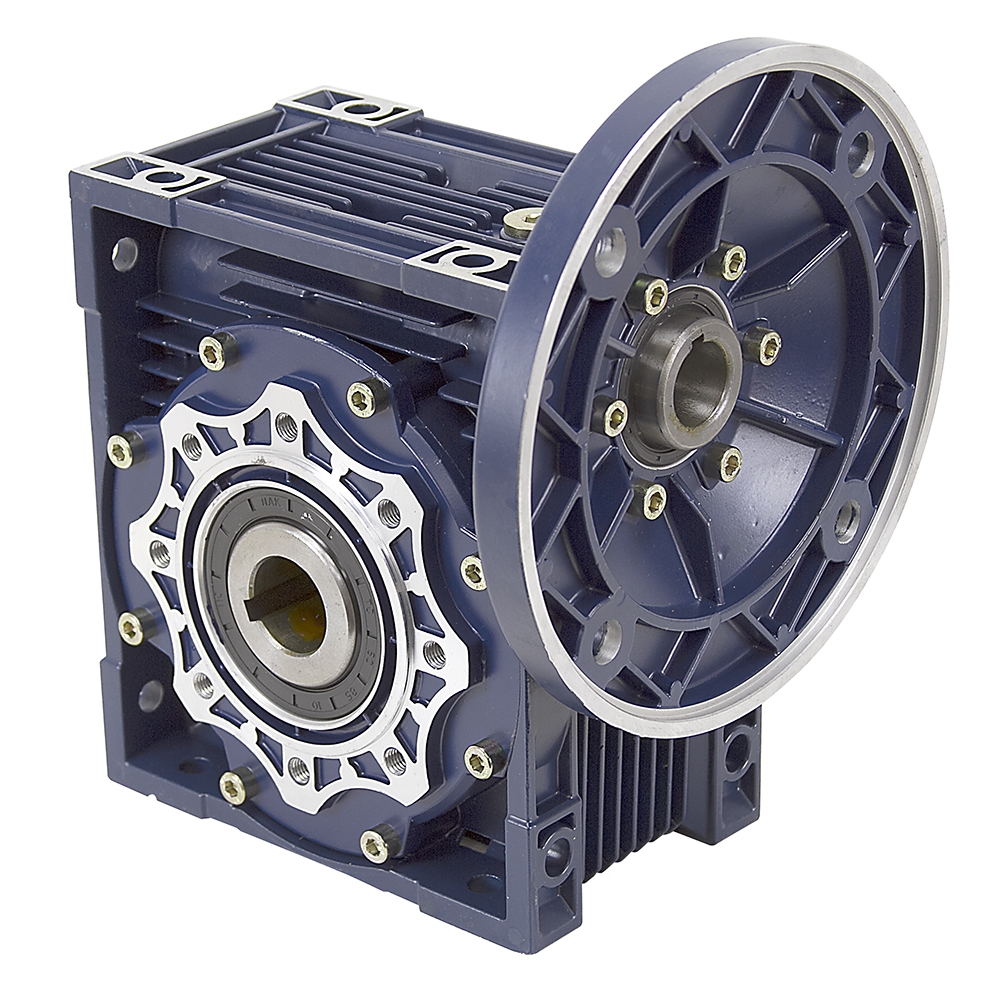

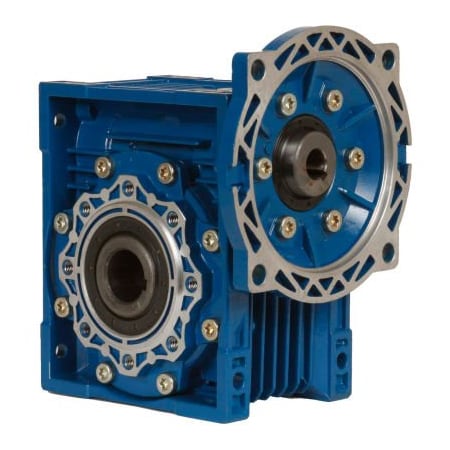

Worldwide Electric CALM90-25/1-56C Aluminum Worm Gear Reducer, 90mm, 25:1, 56C NEMA Frame

Worldwide Electric CALM90-25/1-56C Aluminum Worm Gear Reducer, 90mm, 25:1, 56C NEMA Framezoom

Attributes

Key Value
Back Mount172mm x 100mm
Box Size90 mm Center Distance
BrandWorld Wide Electric
Center Distance3.543 "
center distance mm90
Efficiency84 %
Family SeriesWorldwide Electric Corp.
Gear Ratio25:1
Gearbox TypeWorm
Gross Weight0 lbs
hp4.09
Input Bore5/8&QUOT keyed, 3/16&QU.
Input Bore Size0.625 "
Input Hp (1.0 S.F.)4.18 Hp Max
Input TypeFlange
Item NumberCALM90-25/1-56C
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM90-25/1-56C
MaterialAluminum Alloy
materialAluminium
Max Input HP (@ 1750 RP.4.18 hp
Max OverHung Load (OHL)961
Model NumberCALM90-25/1-56C
Motor Frame SizeNEMA 56C
Motor Mount56C
nema frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)3,145 in-lbs
Output Bore1-3/8&QUOT keyed, 5/16.
Output RPM @ 1750 RPM I.70 RPM
output rpm at 1800 rpm .70
Output Shaft Diameter1.375 "
Output Shaft Thrust Load192 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)70 RPM
Output Torque3145 in.-lb. Max
Over-Hung Load961 lbs. Max
Overall Size9.62&QUOT x 6.5&QUOT x .
Package Quantity1
Product SeriesCALM
Ratio25:1
Shpg.28 lbs.
Top & Bottom Mount140mm x 100mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB1742185474.951In StockWorldwide Electric Corporation474.95 @ 1
thumbzoomNational Supply NetworkB1742185484.941In StockWorldwide Electric Corporation484.94 @ 1
thumbzoomsurpluscenter.com13-1583-25-56C503.11In StockWorldWide Electric28.0503.1 @ 1
thumbzoomGalcoCALM90-25/1-56C-WWEC578.781In StockWorldwide Electric Corporation578.78 @ 1
thumbzoomZoroG404902389779.991In Stock7Worldwide Electric779.99 @ 1
